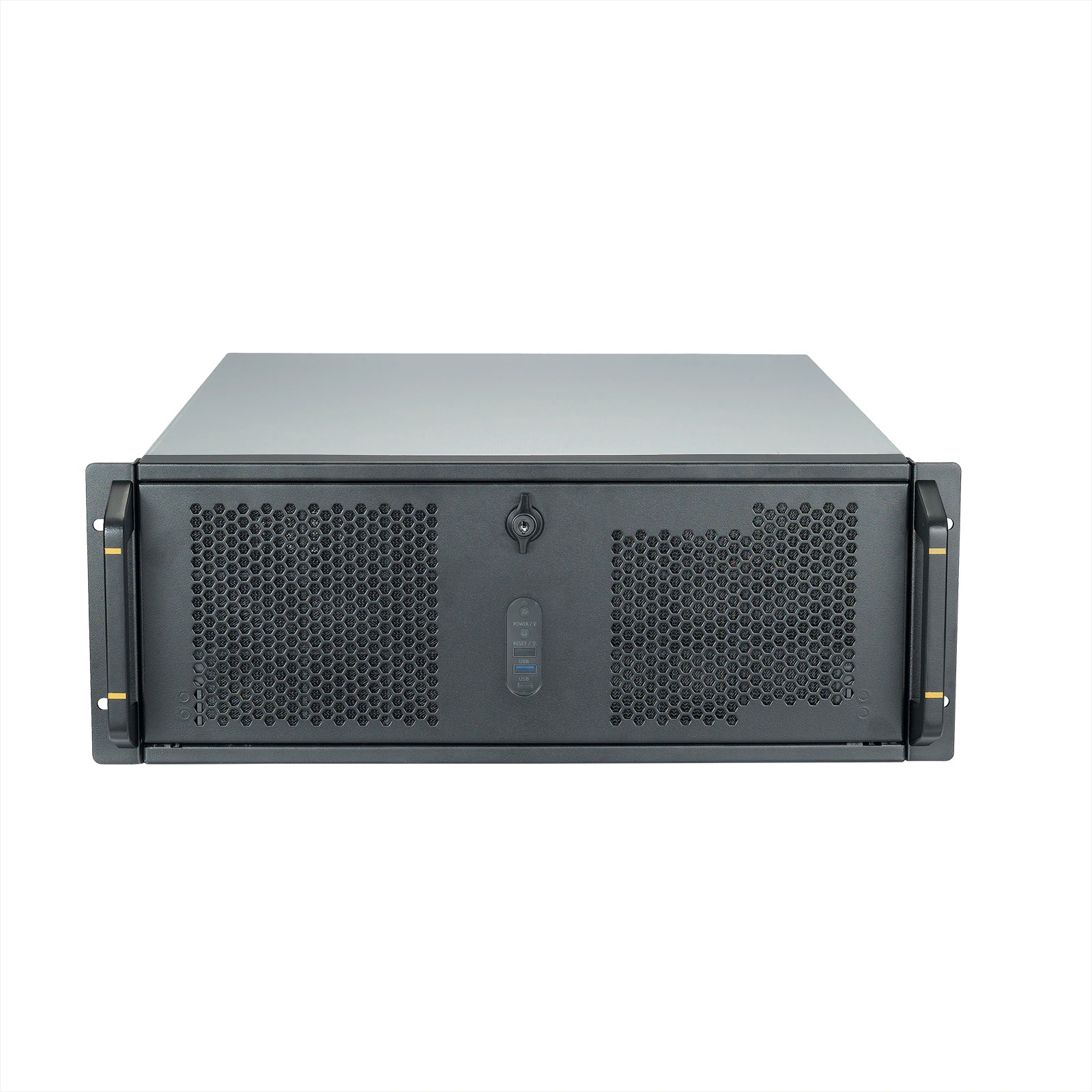

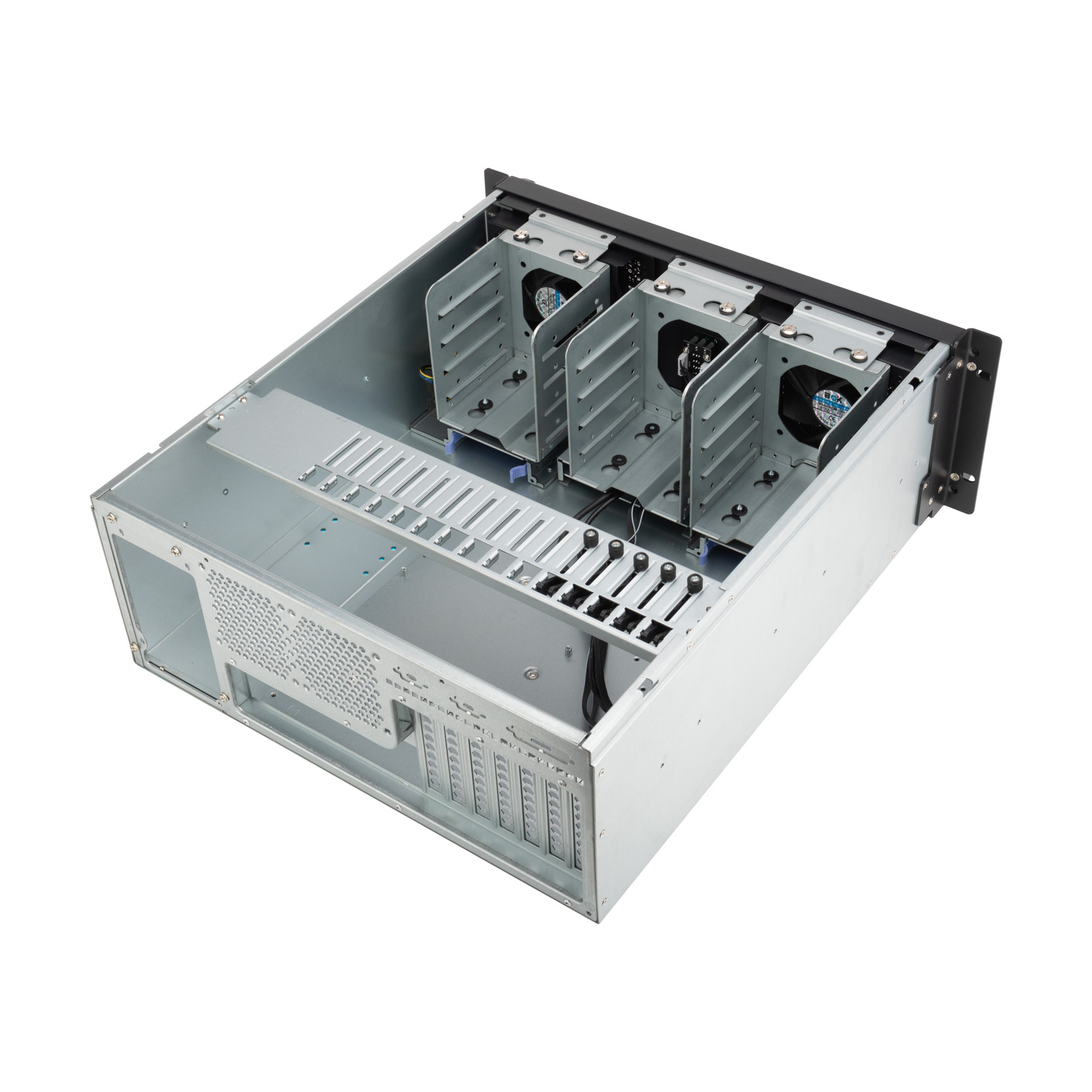

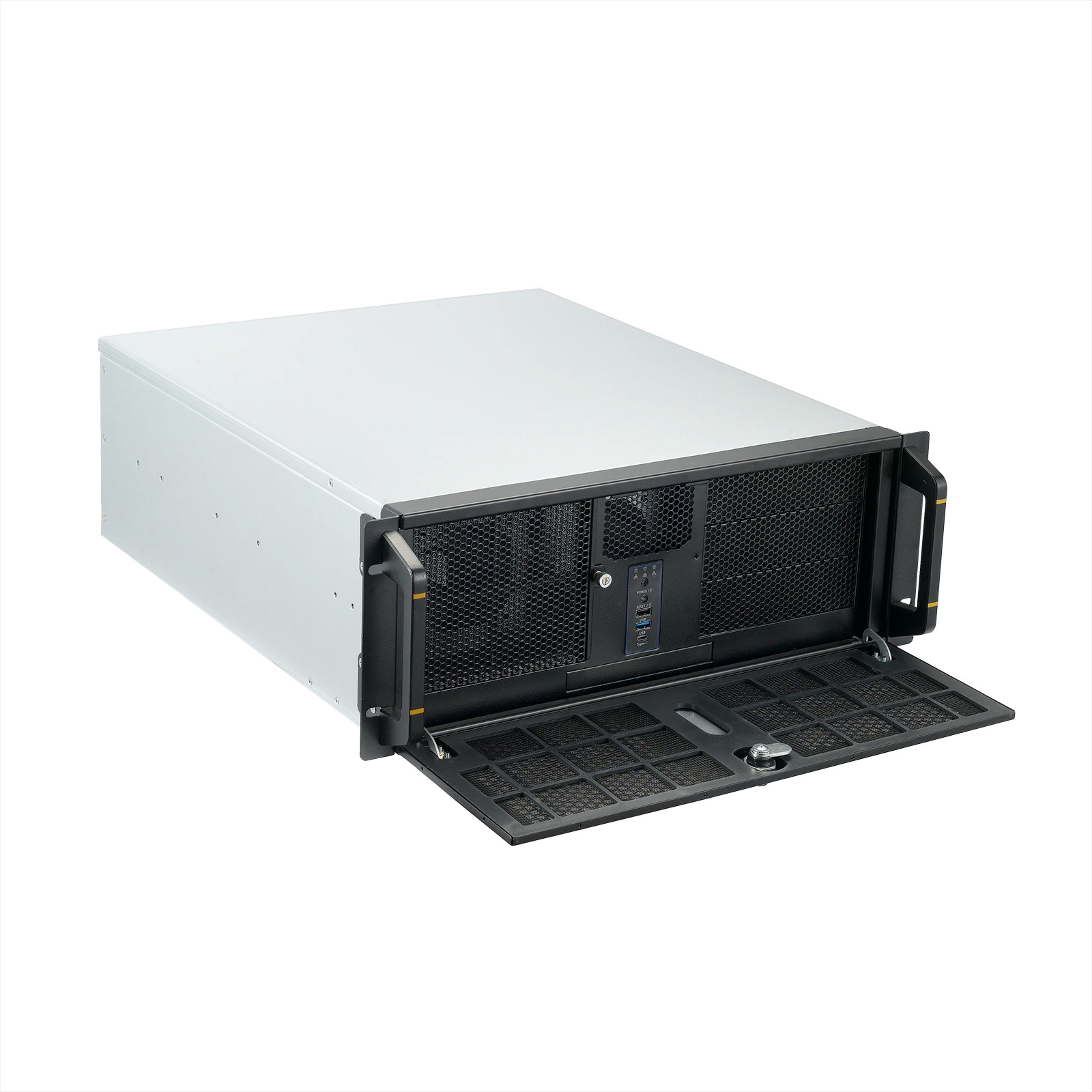

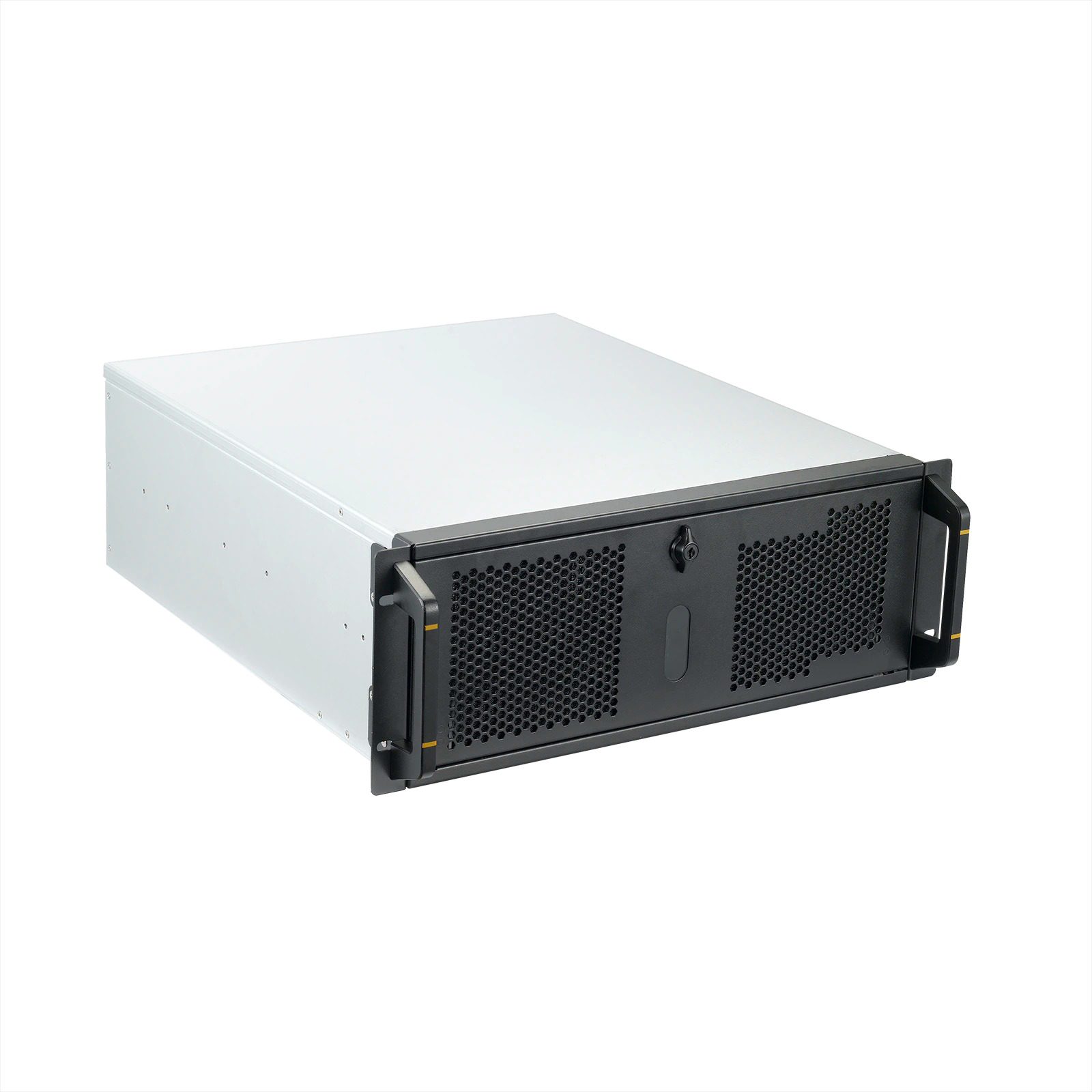

4U Rackmount Chassis- OC4480AP-Y
• Industry-leading 12+2 drive configuration
| • Intelligent Cooling – Multi-zone fan placement options
| • Military-Grade Protection – 1.2mm galvanized steel construction
| • Future-Ready Connectivity – USB 3.0 + Type-C front panel
Description
Package Information
Inquiry
| Model: | OC4480AP-Y |
| 4U Rackmount Chassis: | 505 (D)*428 (W)*172 (H) mm |
| Material: | Galvanized steel plate1.2 mm |
| M/B Form Factor: | ATX (maximum size within 305* 244mm) |
| PSU Form Factor: | ATX power supply, 4U\2U redundant power supply |
| HDD Support: | 12* 3.5" HDD, 2* 2.5" CD-ROM |
| Expansion Slot: | 7 PCl cards |
| System Cooling Fans: | Standard 1 x 1225 fan (2500 revolutions with oil) Support 4 x 8025 fan, (optional) 2pcs for HDD, 2pcs for back window |
| Button: | Switch key/USB2.0 interface *2 |
| Panel: | Panel 1.0 honeycomb hole, black powder spraying |
| Color: | Original color of steel plate |
| Case handle: | Aluminum handle |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
