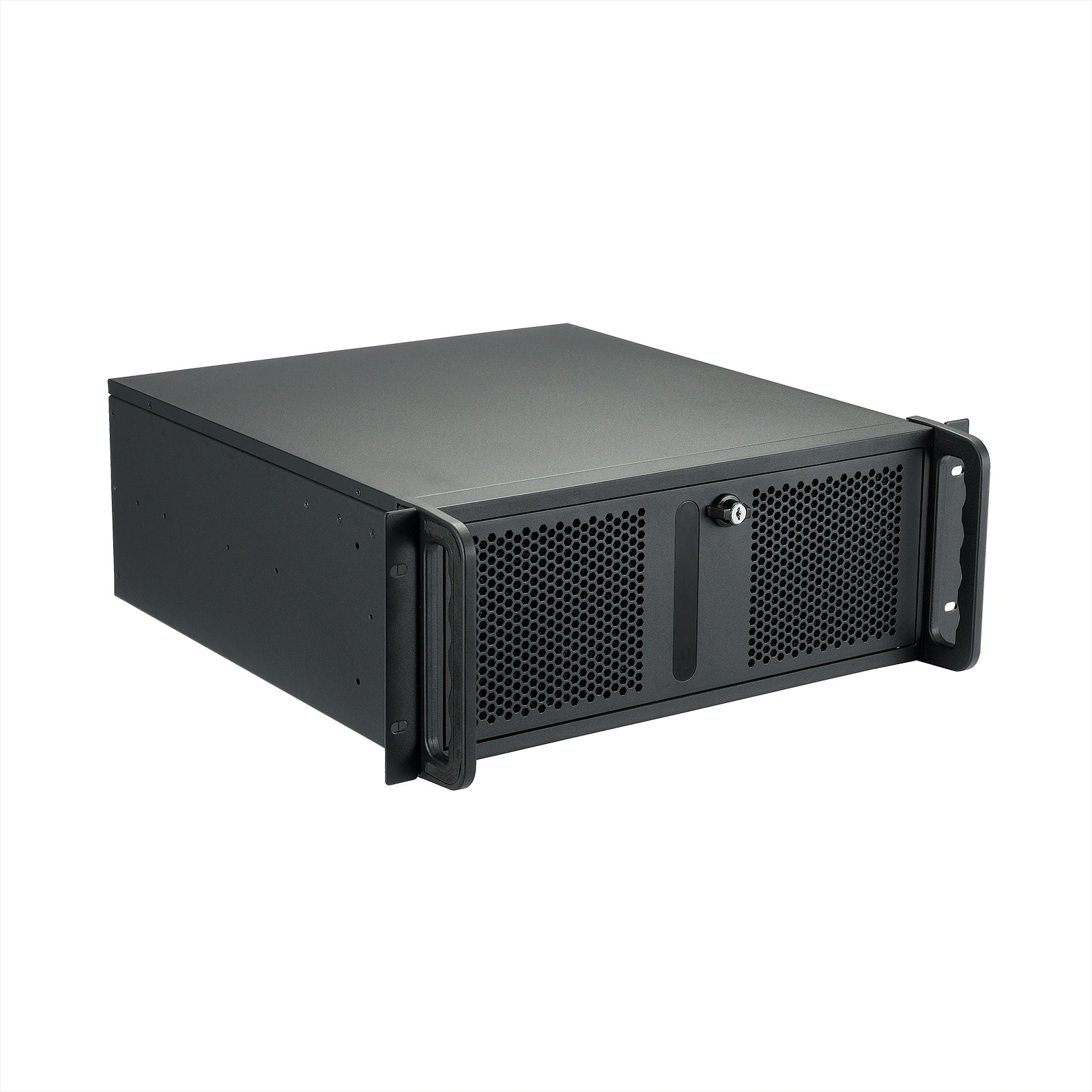

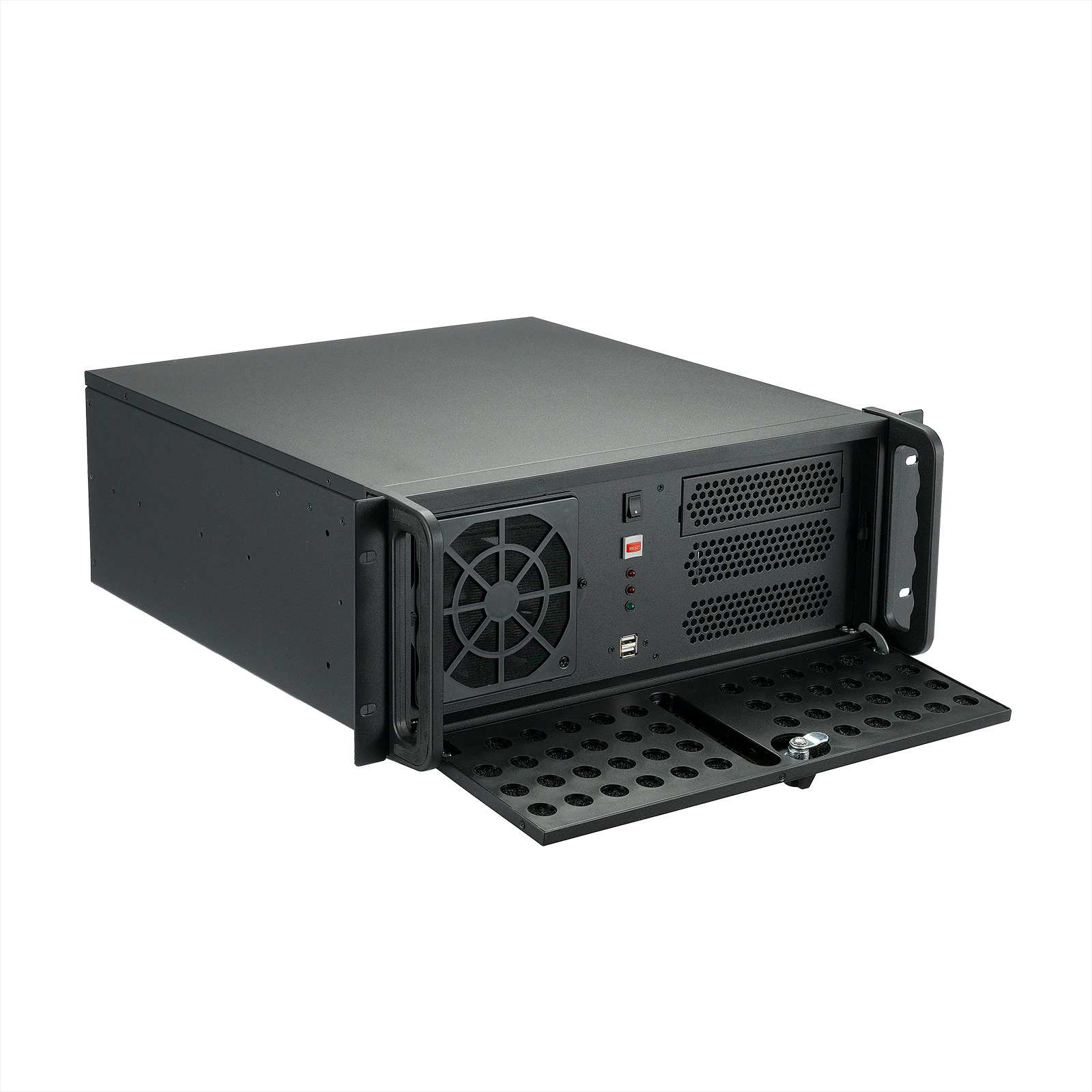

4U Rackmount Chassis- OC4450-Y
• Reliable Industrial-Grade Build
| • Flexible Compatibility with M-ATX Motherboards
| • High Storage Capacity
| • Effective Cooling System
| • Secure Access and Easy Operation
| • Expandable and Configurable
| • Professional Finishing and Handling
Description
Package Information
Inquiry
| Model: | OC4450-Y |

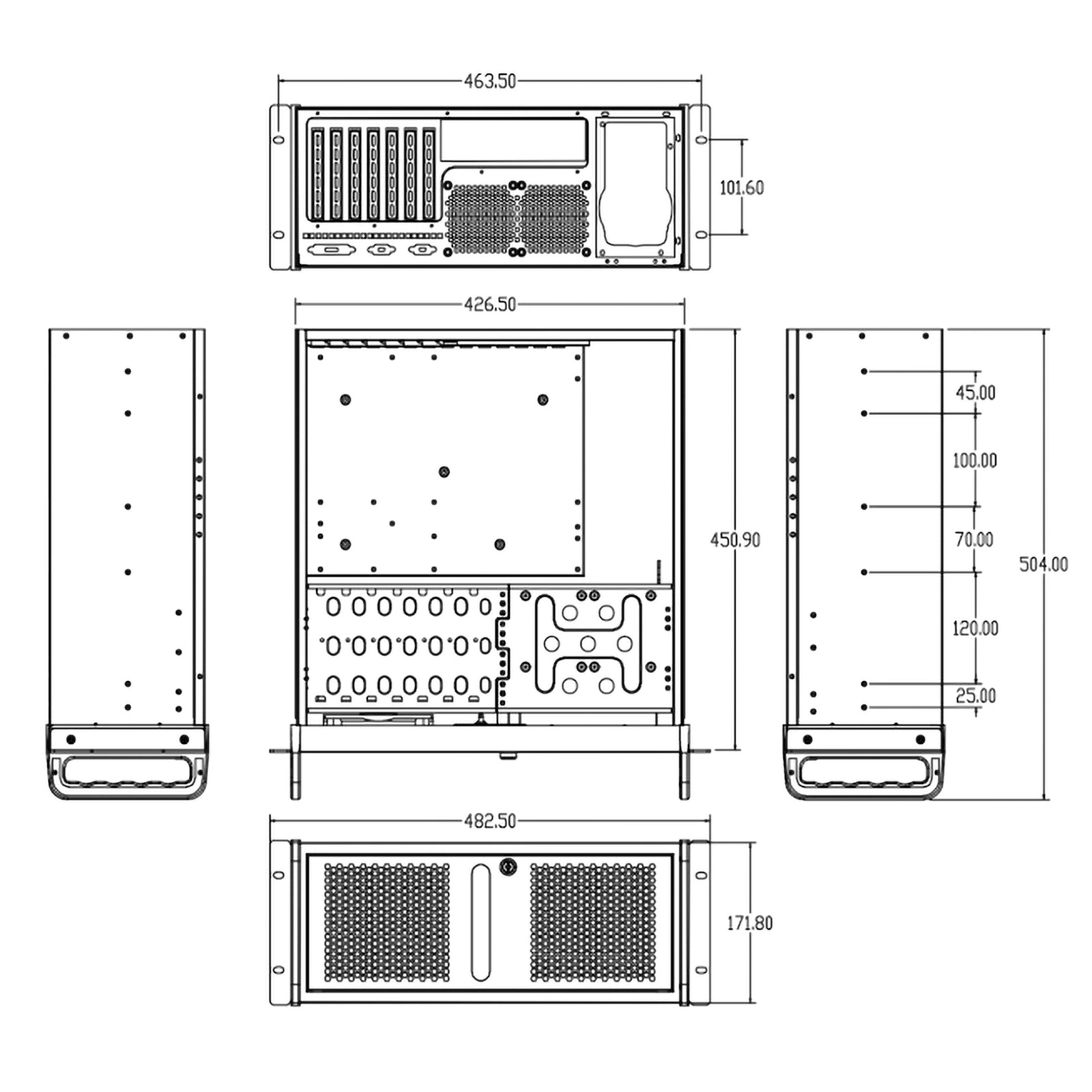

| 4U Rackmount Chassis: | 505 (D)*428 (W)*172 (H) mm |
| Material: | Galvanized steel plate 1.2 mm |
| M/B Form Factor: | ATX (maximum size within 305* 244 mm) |
| PSU Form Factor: | ATX power supply, 4U\2U redundant power supply |
| HDD Support: | 8* 3.5" HDD, 2* 2.5" SSD/3* 5.25 optical drive |
| Expansion Slot: | 7 PCl cards |
| System Cooling Fans: | Standard 1* 1225 fan (2500 revolutions with oil) Support 4* 8025 fan, (optional) 2pcs for HDD, 2pcs for back window |
| Button: | On key/Restart key/USB2.0/3.0/Type-C/Network light |
| Panel: | Panel 1.0 honeycomb hole, black powder spraying |
| Color: | Black dusting |
| Case handle: | Aluminum handle |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
