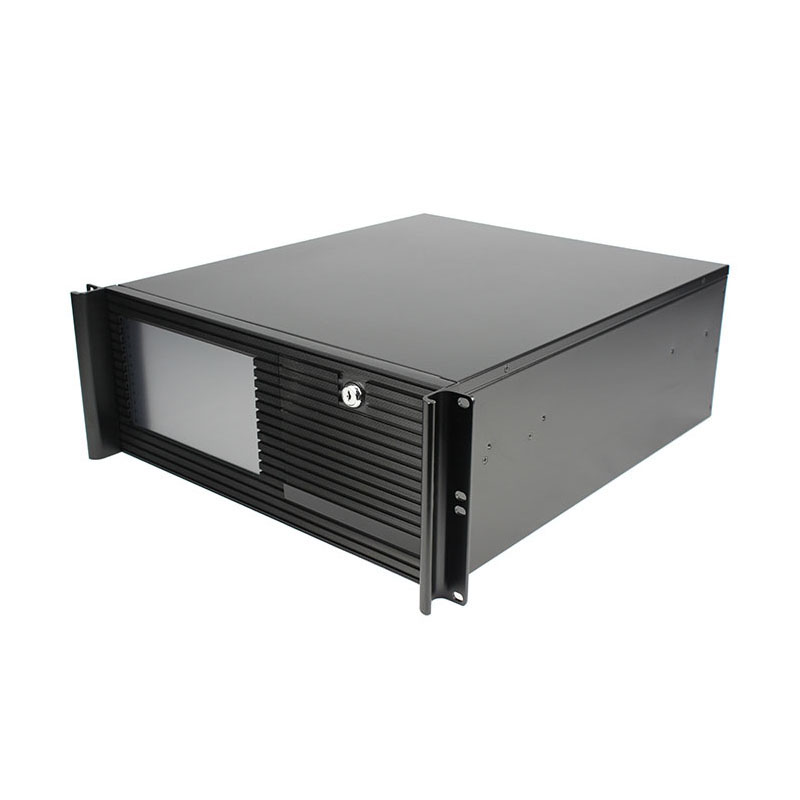

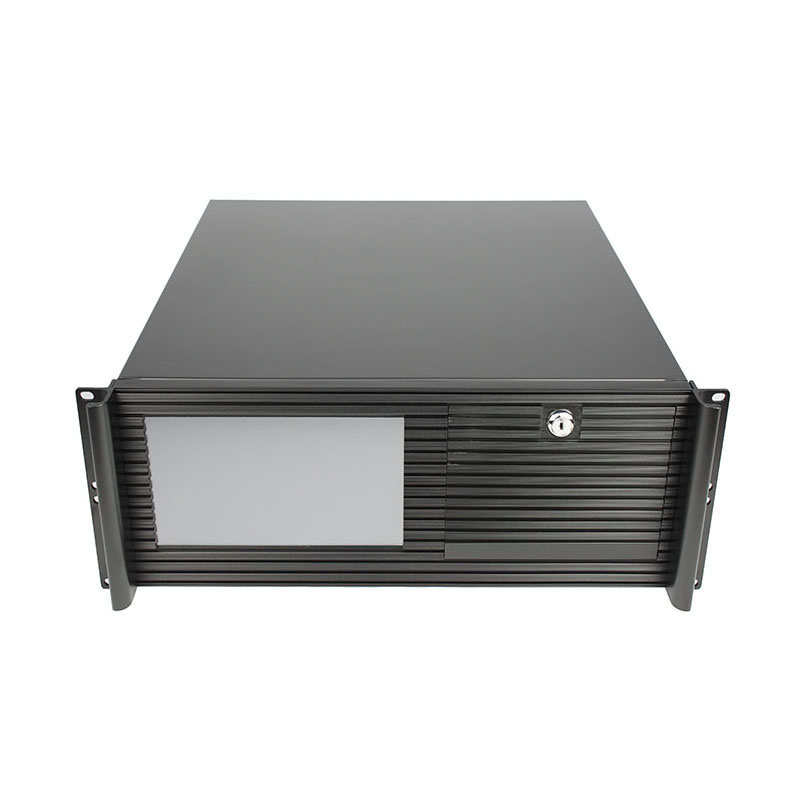

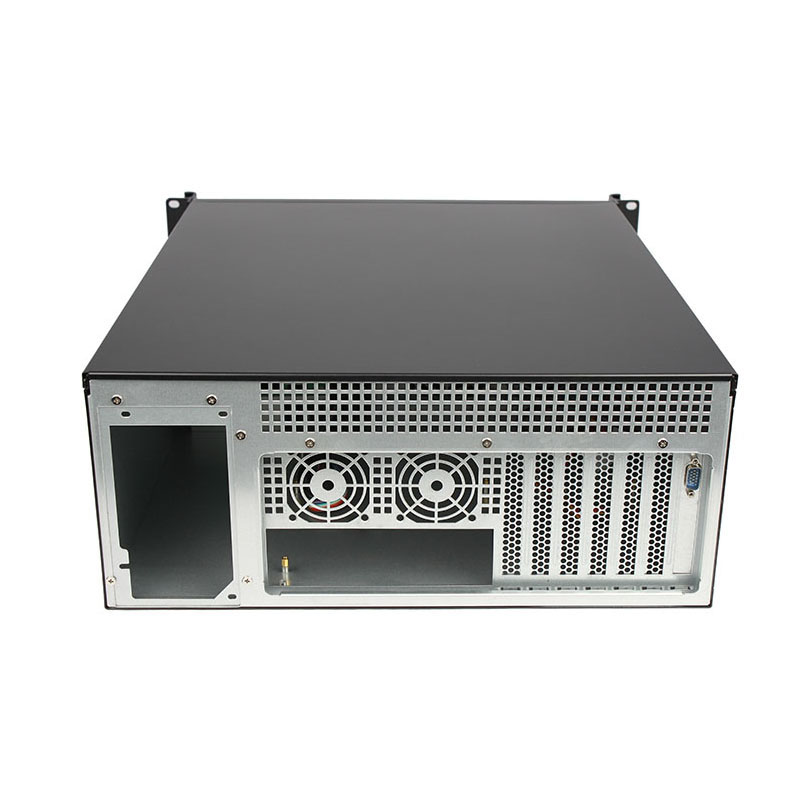

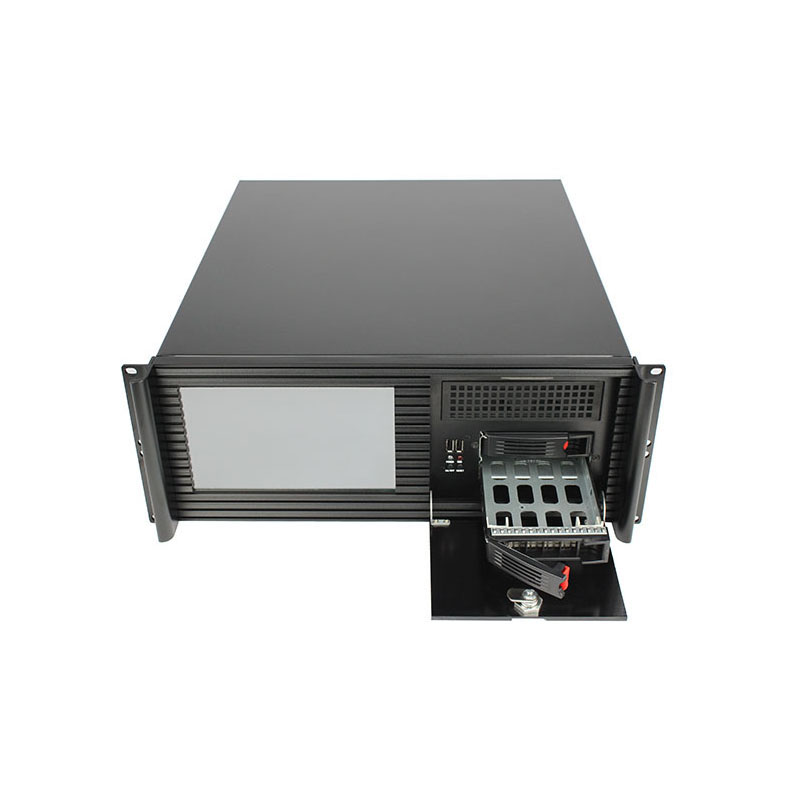

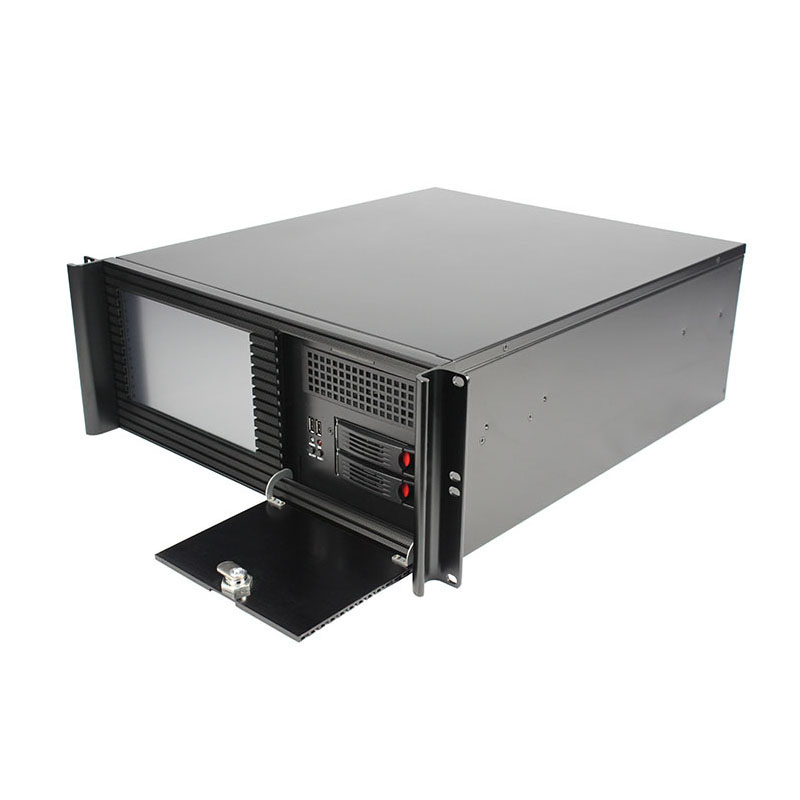

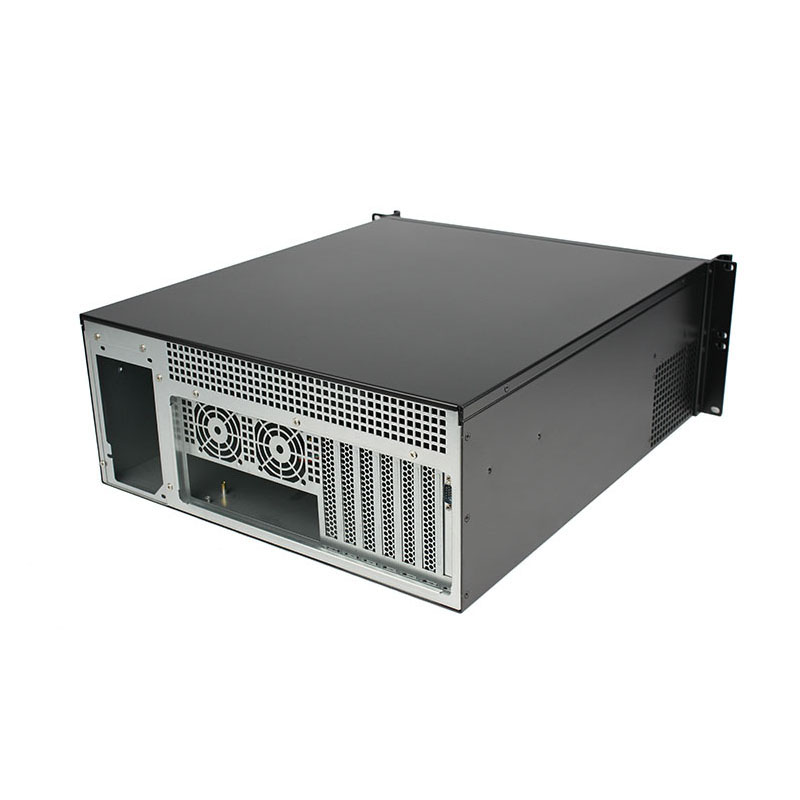

4U Rackmount Chassis- OC451C-M
• Smart Control -Interactive touchscreen interface
| • Industrial Protection -Heavy-duty steel construction
| • Secure & Expandable -Lockable design with 7 PCIe slots
| • Optimized Cooling -Dual-fan thermal management system
Description
Package Information
Inquiry
| Model: | OC451C-M |
| 4U Rackmount Chassis: | 482 (D)*500 (W)*178 (H) mm |
| Material: | 1.2 mm SGCC |
| M/B Form Factor: | Support mainboard size up to 12″ x 13″(305 x 340 mm) |
| PSU Form Factor: | ATX |
| HDD Bit: | 2* 3.5″ and 2* 2.5″ Hard Disk |
| CD-ROM Bit: | 1* Slim CD-ROM Drive |
| Expansion Slot: | 7 Full-Height and Straight Slots |
| System Cooling Fans: | 2* 8028mm Fan |
| Panel Setting: | USB2.0 *2, Power SW *1, Reset *1, HDD LED *1 |
| Gross Weight: | 16 kg |
| Net Weight: | 13 kg |
| Packaging Size: | 68.5* 56.5* 30 cm (0.116 CBM) |
| Container Loading Quantity: | 20GP: 241; 40GP: 500; 40HC(HQ): 586 |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
| Gross Weight: | 16 kg |
| Net Weight: | 13 kg |
| Packaging Size: | 68.5* 56.5* 30 cm (0.116 CBM) |
| Container Loading Qty: | 20GP: 241; 40GP: 500; 40HC(HQ): 586 |
