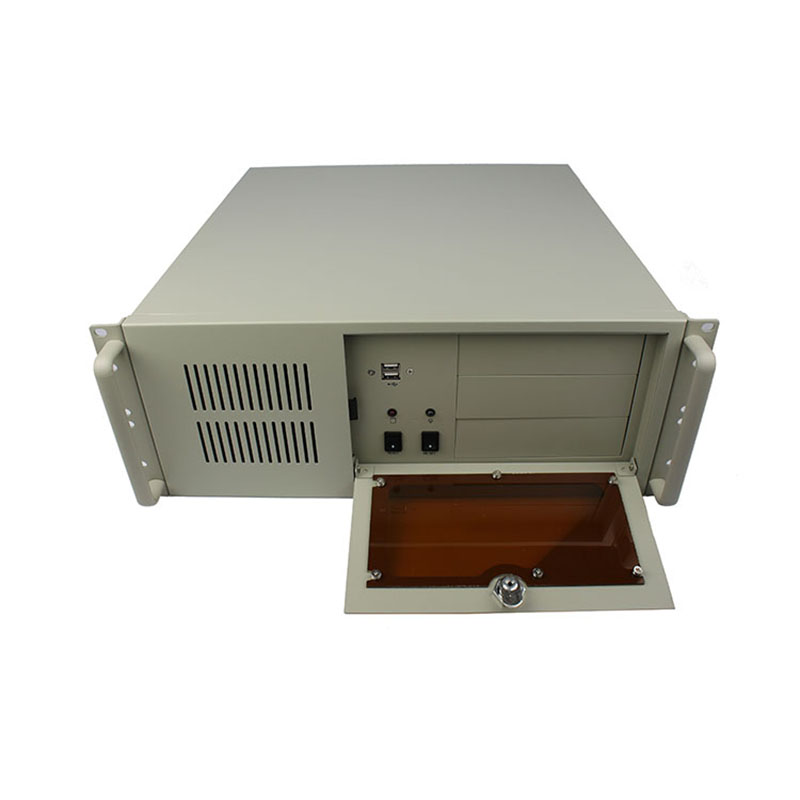

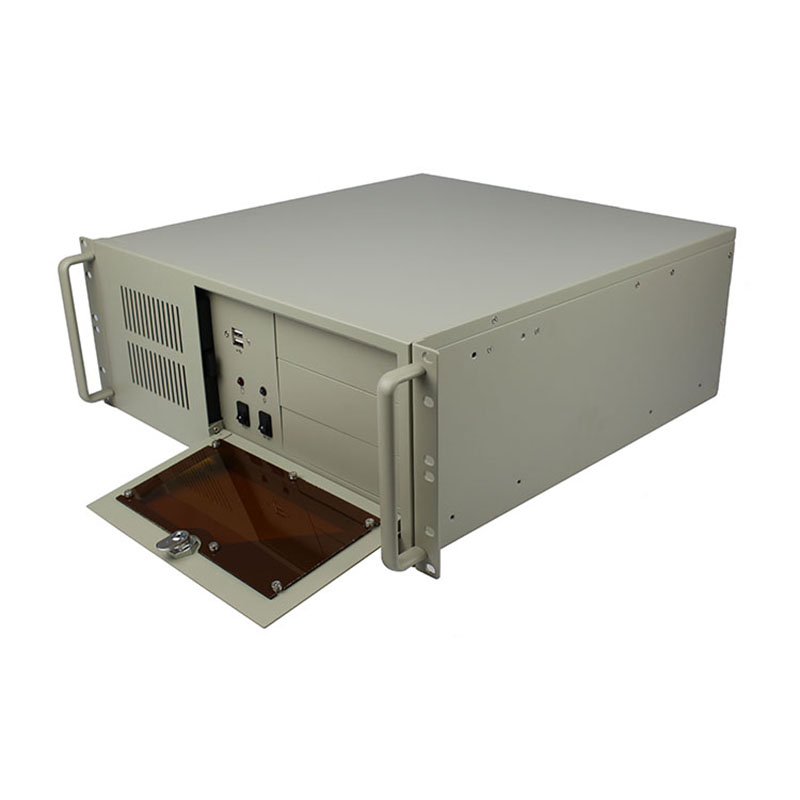

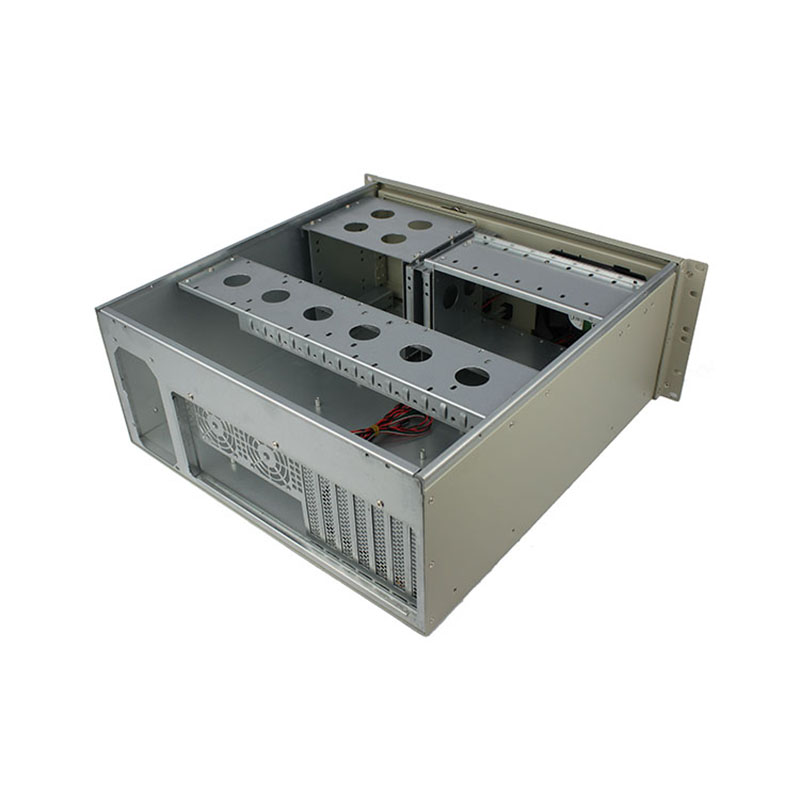

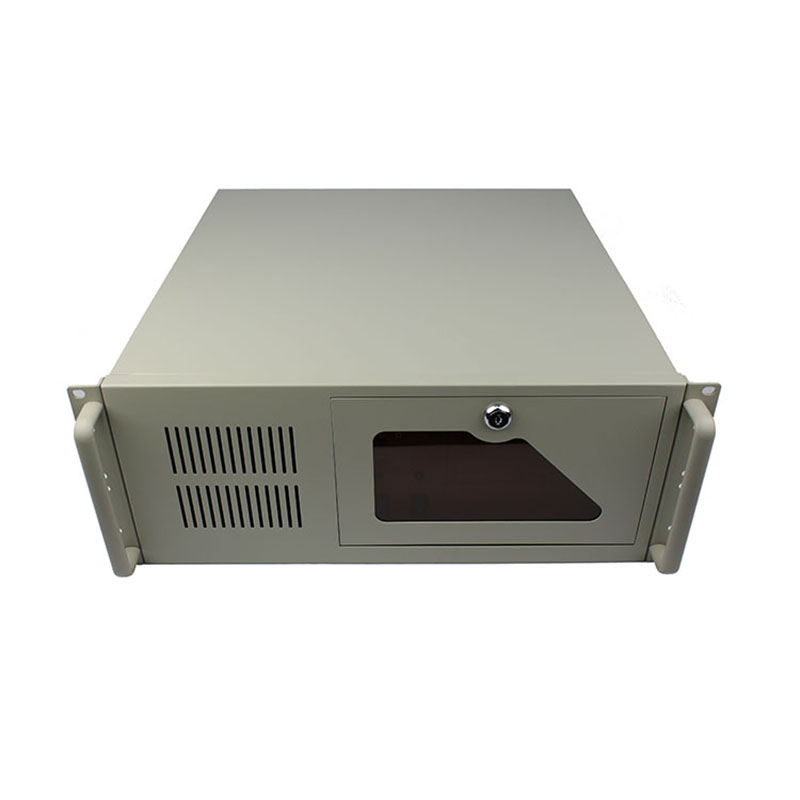

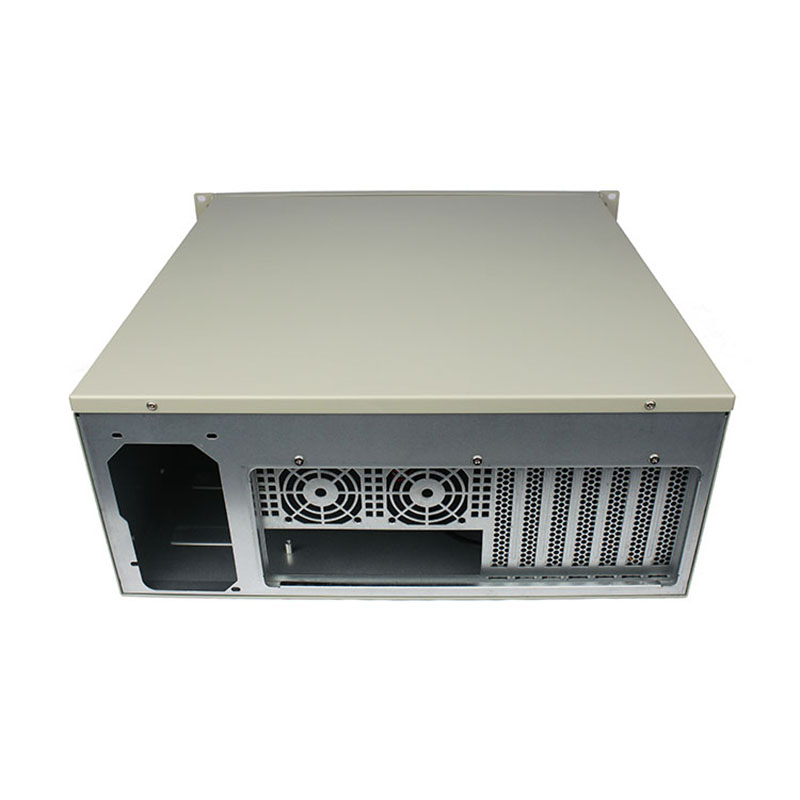

4U Rackmount Chassis- OC445FW-M
• Massive 12-drive capacity: 8*3.5" + 4*2.5" HDD bays + 3*5.25" optical drives
| • Secure operation: Lockable front panel with dust-filtered 120mm cooling fan
| • Full expansion: 7 PCI slots for versatile configurations
| • Heavy-duty 1.2 mm SGCC steel construction
Description
Package Information
Inquiry
| Model: | OC445FW-M |
| 4U Rackmount Chassis: | 482 (D)*450 (W)*178 (H) mm |
| Material: | 1.2 mm SGCC |
| M/B Form Factor: | Support mainboard size up to 12″ x 9.6″(305 x 245 mm) |
| PSU Form Factor: | Ordinary Desk-type ATX Power Supply PS2 |
| HDD Bit: | 8* 3.5″ / 4* 2.5″ Hard Disk |
| CD-ROM Bit: | 3* 5.25″ optical drive bay |
| Expansion Slot: | 7 Full-Height and Straight Slots |
| System Cooling Fans: | 1* 12025 fan |
| Panel Setting: | USB2.0 *2, Power SW *1, Reset *1, Power LED *1, HDD LED *1 |
| Gross Weight: | 12.14 kg |
| Net Weight: | 10.05 kg |
| Packaging Size: | 59* 54.5* 26.5 cm (0.085 CBM) |
| Container Loading Qty: | 20GP: 329; 40GP: 682; 40HC(HQ): 800 |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
| Gross Weight: | 12.14 kg |
| Net Weight: | 10.05 kg |
| Packaging Size: | 59* 54.5* 26.5 cm (0.085 CBM) |
| Container Loading Qty: | 20GP: 329; 40GP: 682; 40HC(HQ): 800 |
