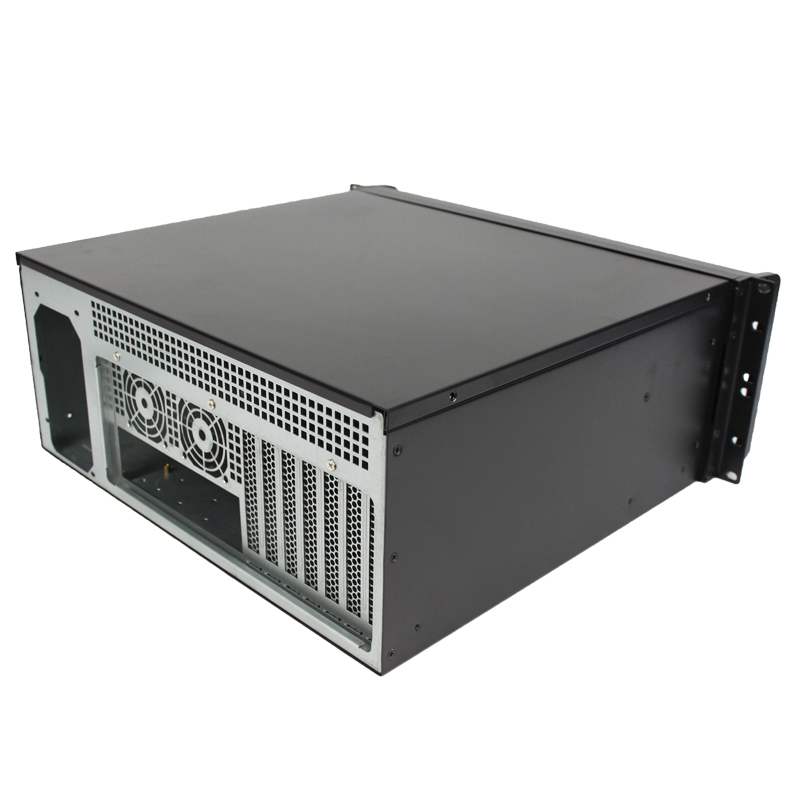

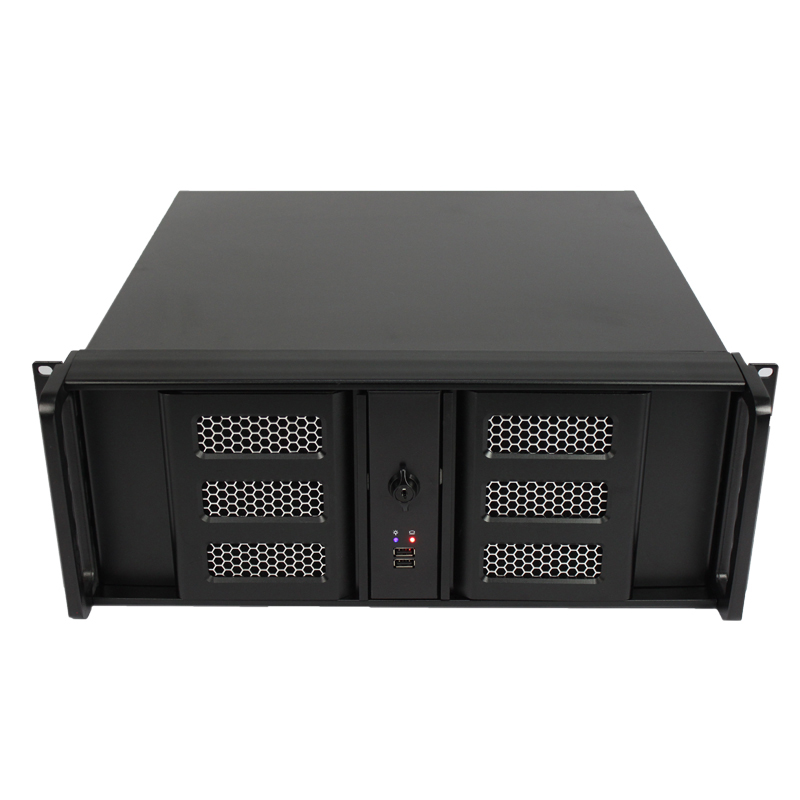

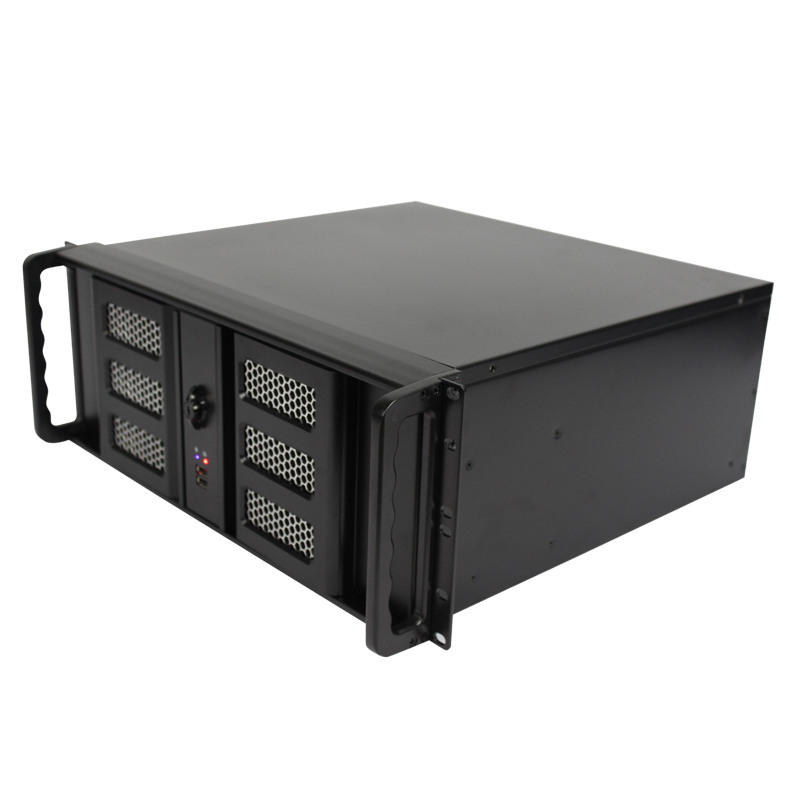

4U Rackmount Chassis- OC439L5-M
• Superior Airflow -Dual-fan hybrid cooling
| • Enterprise Storage -4 HDD bays + optical drive
| • Military-Grade Durability -Reinforced steel construction
| • Future-Proof Expansion -7 full-height PCI slots
Description
Package Information
Inquiry
| Model: | OC439L5-M |
| 4U Rackmount Chassis: | 482 (D)*390 (W)*178 (H) mm |
| Material: | 1.2 mm SGCC |
| M/B Form Factor: | Support mainboard size up to 12″ x 13″(305 x 345 mm) |
| PSU Form Factor: | ATX |
| HDD Bit: | 4* 3.5″ Hard Disk |
| CD-ROM Bit: | 1* 5.25″ optical drive bay |
| Expansion Slot: | 7 Full-Height and Straight Slots |
| System Cooling Fans: | 1* 12025 fan and 1* 8025mm Fan |
| Panel Setting: | USB2.0 *2, Power SW *1, Reset *1, Power LED *1, HDD LED *1 |
| Gross Weight: | 10.75 kg |
| Net Weight: | 8.78 kg |
| Packaging Size: | 55* 56.5* 28 cm (0.086 CBM) |
| Container Loading Qty: | 20GP: 325; 40GP: 674; 40HC(HQ): 790 |
| Operaing Temperature: | 10°C-35°C (without direct light); Extended operating temperature: 5°C-40°C (restrictive configuration satisfied); Storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
| Gross Weight: | 10.75 kg |
| Net Weight: | 10.05 kg |
| Packaging Size: | 55* 56.5* 28 cm (0.086 CBM) |
| Container Loading Qty: | 20GP: 325; 40GP: 674; 40HC(HQ): 790 |
