4U Rackmount Chassis- OCR445-G
• Industrial Protection - Heavy-duty steel construction, ensuring reliable operation in harsh environments
• Secure & Expandable - Lockable design with 7 PCIe slots
• Superior Airflow- Dual-fan hybrid cooling

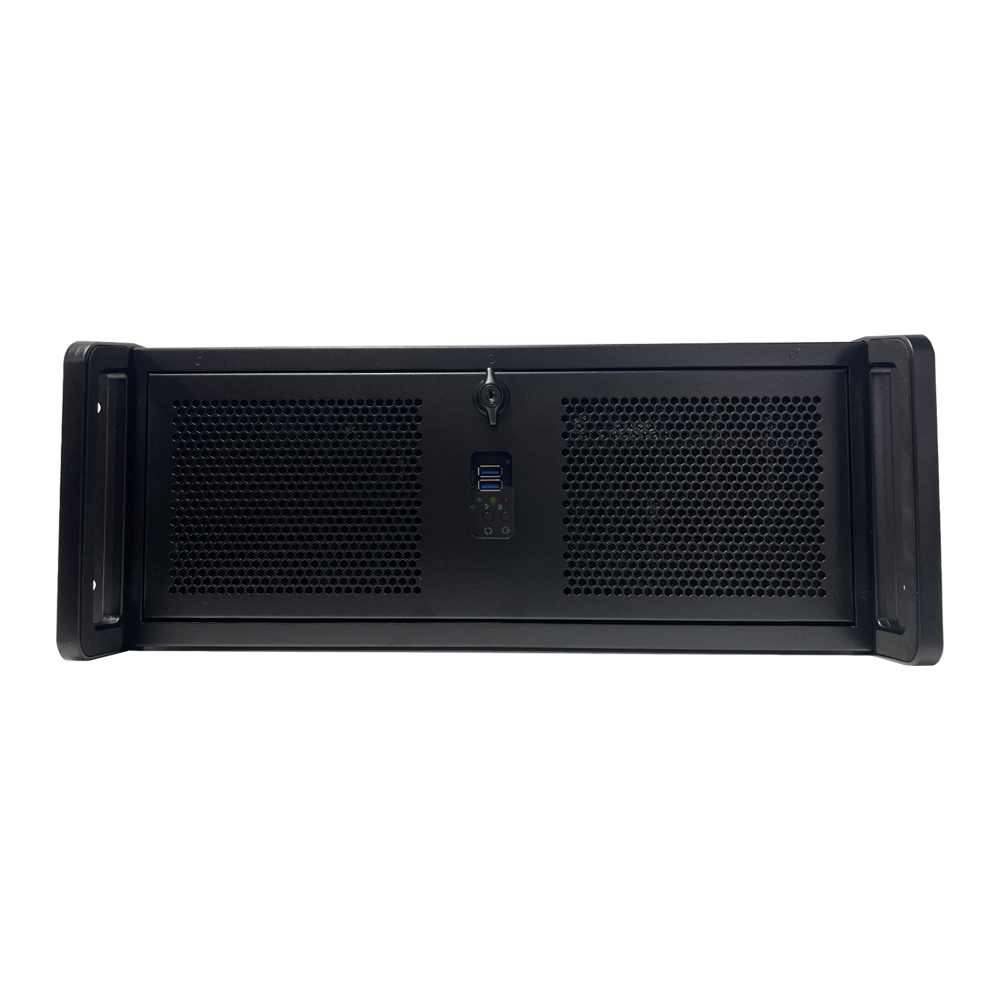

• Visible Interface - The acrylic area in the center of the lockable front case cover displays the main operating interface with switch buttons, indicators & USB3.0
Description
Package Information
Inquiry
Compatible with ATX motherboards
Works with ATX power supplies
Made from durable SGCC steel
Includes two front USB 3.0 ports
Supports up to nine 3.5″ internal hard drives
Accommodates with one 5.25″ optical drives
Comes with one 120 mm cooling fan
Power supply not included
| Model | OCR445-G |
| Dimensions(mm) | 482(W)* 450(D)* 178(H) mm |
| MotherBoard | 12″* 9.6″ (305* 245 mm) |
| Hard Disk | 9* 3.5-inch Hard Disk |
| CD-ROM | 1* 5.25″ CD-ROM Drive |
| Power | Ordinary Desk-type ATX Power Supply PS2 |
| Fan | 1* 12025 Fan |
| Expansion Slot | 7* Full-Height and Straight Slots |
| Panel Setting | 2* USB3.0; 1* power switch; 1* Restart Switch; 1* Power Indicator and 1* HD Indicator |
| Case Material | SGCC |
| Material Thickness | 1.0-1.2 mm |
| Packaging Size | 59* 54.5* 26.5 cm (0.085CBM) |
| Gross Weight | 14.8 KG |
| Net Weight | 10.5 KG |
| Container Loading Qty | 20GP: 329; 40GP: 682; 40HC(HQ): 800 |
