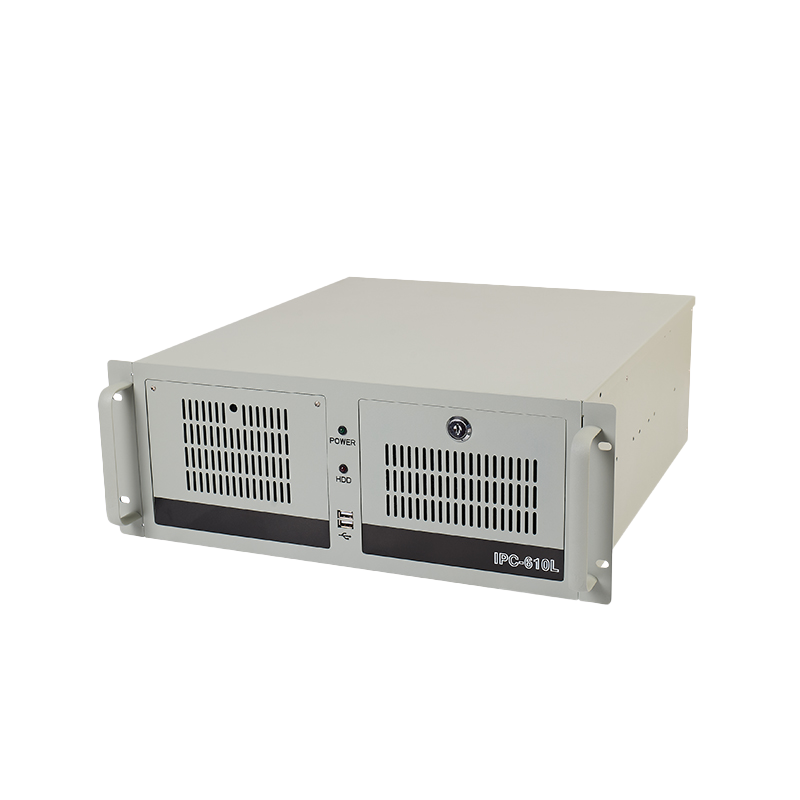

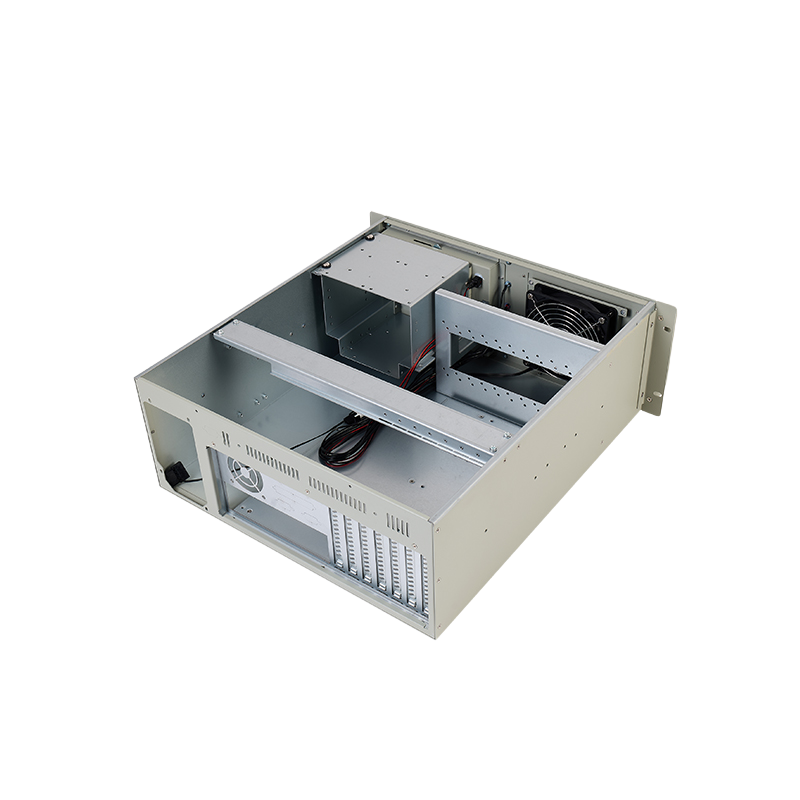

4U IPC Rackmount Chassis -OCR610L-H
• Support 3 optical drive bays or interchangeable hard drive bays
• Motherboard: Max ATX (12" x 9.6"), downward compatible with ATX and smaller form factors
• Power Supply: Standard ATX power supplies and various power supply bay customizable
• 7 Full-height PCI Cards; Multiple Rear I/O Panel
Description
Package Information
Inquiry
| Model: | OCR610L-H |
| 4U Rackmount Chassis: | 480 (D)*430 (W)*176.3 (H) mm |
| Material: | Cold rolledsteel 1.2mm |
| M/B Form Factor: | ATX (12" × 9.6")/Mini-ATX (11.2" × 8.2")/MicroATX (9.6" × 9.6")/ITX |
| PSU Form Factor: | Standard ATX power bit |
| HDD Support: | Built-in three cd-rom bits or replaced with hard disk bits |
| Expansion Slot: | 7 full-height PCl cards |
| System Cooling Fans: | Built-in two 12025 and two 6025 fan bits |
| Smart Fans Speed Control: | NO |
| Air Duct: | Support for customization, optional materials (SGCC/PC/ABS/PE, etc.) |
| Indicators: | Power ON/OFF x 1, HDD x 1 |
| Front Panel Control: | Power ON/OFF x 1, System reset x 1, KB-LK x 1, USB2.0 x 2/USB3.0 x 2 |
| Slide Rail: | Simple guide rail |
| Carton Size: | 600*520*260 mm |
| Net Weight: | 11.1KG |
| Gross Weight: | 13.9KG |
| Operaing Temperature: | 10°C-35°C (without direct light) ; extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
