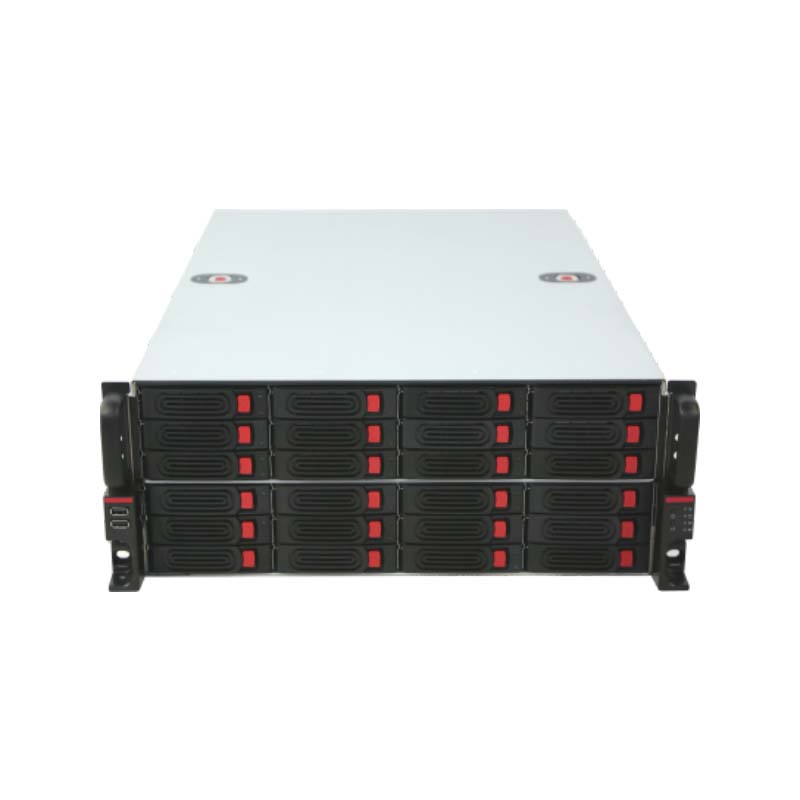

4U Rackmount Server Case -OCS4660-24-GD
This 4U hot-swap chassis provides the best support for various rackmount systems and different applications and supports 3 cooling 120mm fans providing excellent airflow and thermal protection. Make sure your drives and enclosures don’t overheat.
Description
Package Information
Inquiry
| Model: | OCS4660-24-GD |
| 4U Server Chassis: | D660 * W430.4 * H175mm (excluding handle height); Rackmount style |
| Material: | 1.0-1.2 mm thick high-strength galvanized steel (SGCC) |
| Color: | Black powder for the ears of the chassis, anti-baking sand grain black for the HDD bracket, and no paint for the main part of the chassis |
| HDD Support: | Standard 24*3.5 inch hot-swappable tray |
| Cooling System: | 3* (120*38mm) fans in the middle, 2 80*25 fans in the back |
| Board Support: | Extended ATX / ATX / micro ATX / EEB / CEB motherboards |
| Expansion Slot: | 7* Full-height cards |
| SGPIO: | √ |
| Front Panel: | Standard USB2.0*2 |
| PSU Form Factor: | PS-2 Power supply / redundant Power supply |
| Indicators: | Power ON/OFF x 1, HDD x 1, NIC x 2, Power Alarm x 1 |
| Front Panel Control: | Power ON/OFF x 1, System reset x 1, ID Switch x 1, USB2.0 x 2/USB3.0 x 2 |
| Slide Rail: | Tool free guide rail |
| Optional: | 1. 12038 fans, 5000 RPM, 4PIN 2. 8025 fans, 2900 RPM, 4PIN 3. Backplane 12GB (4 BAY)*5 4. Front USB2.0*1PCS+3.0*1PCS 5. Special slide rail for server |
| Container Loading Quantity: | 20GP: 224; 40GP: 448 |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
