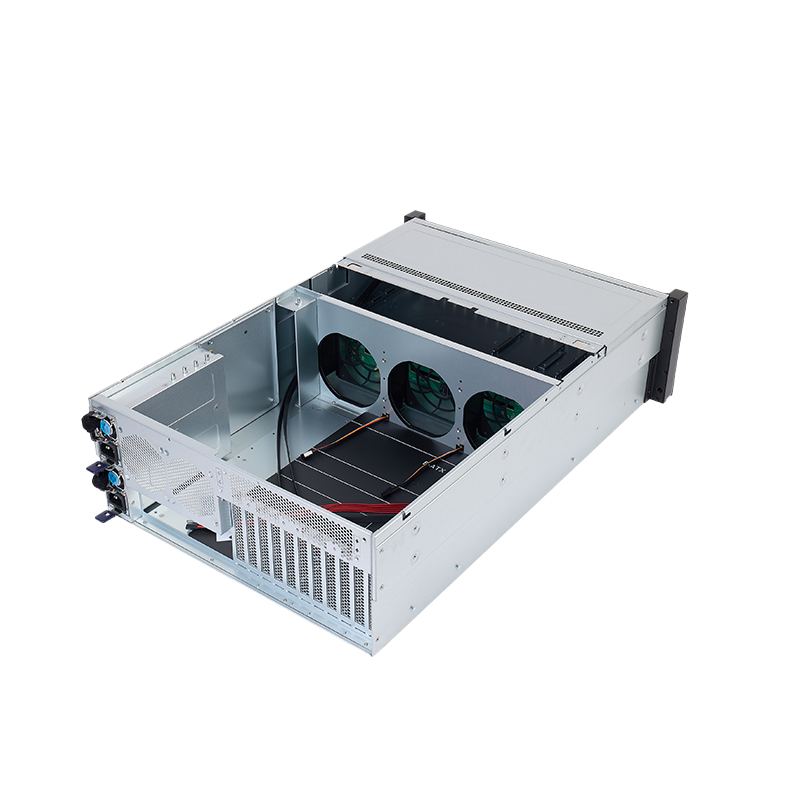

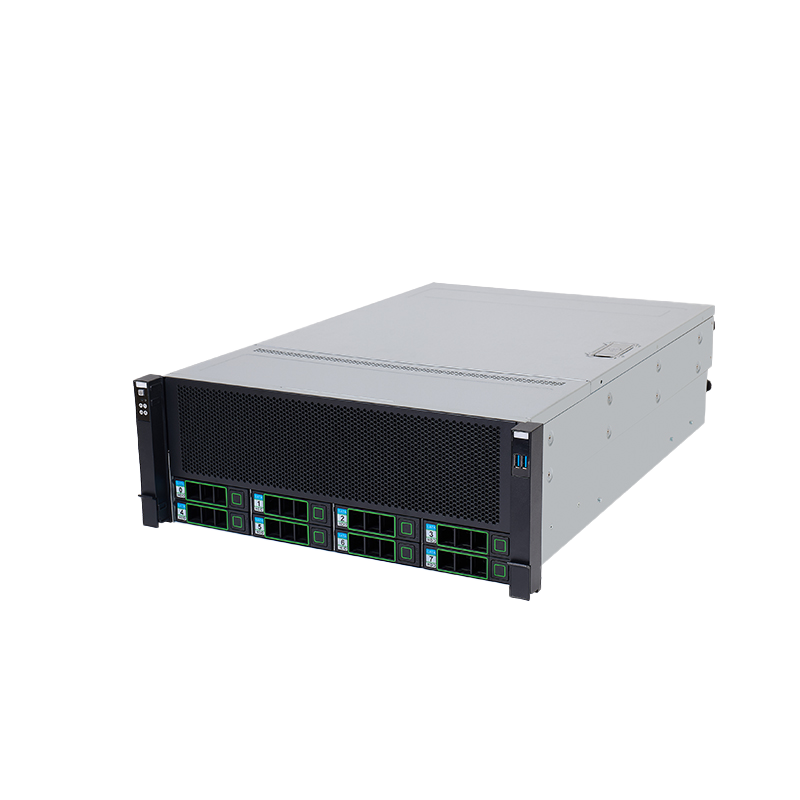

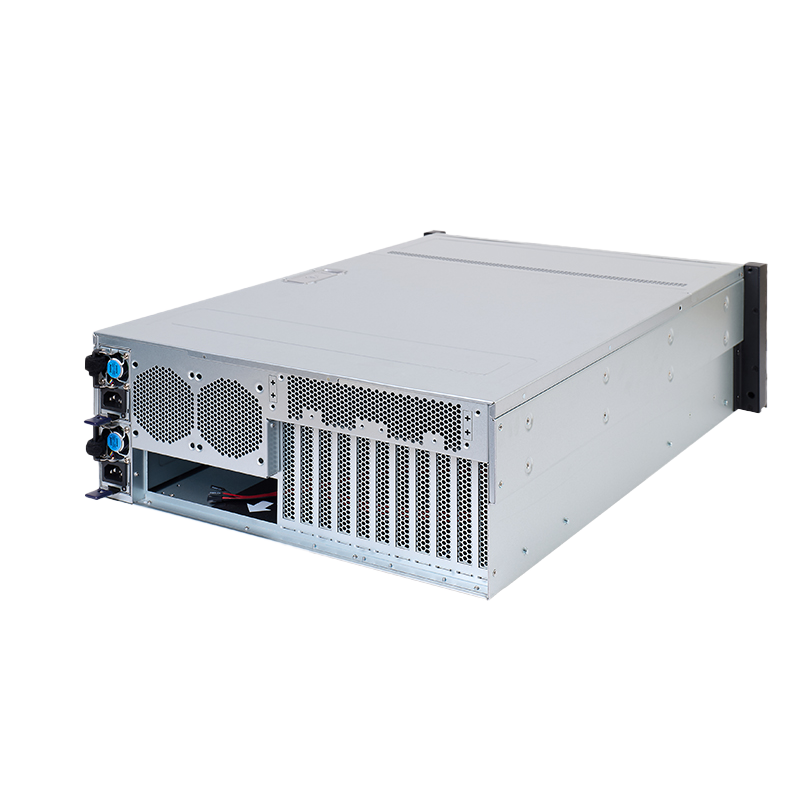

4U Rack-mounted Server Chassis -OCS4680-H08-H
• 8 × 3.5" (or 2.5") hot-swappable drive bays
• 13.9" x 13" motherboards, supporting EATX & smaller form factors
• 2U standard + 1 CRPS redundant PSU, single PSU, or XTA
• 6Gb/12Gb direct backplane connection (optional SFF-8087 or SFF-8643 cabling)
• 7 full-height PCI cards; Full EMI/EMC shielding design; Multiple rear I/O panel
Description
Package Information
Inquiry
| Model: | OCS4680-H08-H |
| 4U Rackmount Server Chassis: | 680 (D)*436 (W)*176 (H) mm; Rackmount style |
| Material: | Taiwan sinosteel SGCC 1.2mm |
| M/B Form Factor: | MAX(13.9" × 13")/EEB (12" × 13")/CEB (12" × 10.5")/ATX (12" × 9.6")/Mini-ATX (11.2" × 8.2")/MicroATX (9.6" × 9.6")/ITX |
| PSU Form Factor: | Single 2U, 1+1 Redundant PSU,ATX, CRPS |
| HDD Backplane: | 6Gb/12Gb SATA/SAS direct Backplane (SFF-8087/SFF-8643 cable for optional) |
| HDD Support: | 8 x 3.5" Hotswap HDD (or 2.5" HDD). Optional 2 x 2.5" Hotswap HDD at the rear |
| Expansion Slot: | 7 full-height PCl cards (multiple rear windows optional) |
| SGPIO: | √ |
| System Cooling Fans: | Optional 3pcs PWM 120*120*38mm high speed ball fans |
| Smart Fans Speed Control: | Backboard support |
| Air Duct: | Support for customization, optional materials (SGCC/PC/ABS/PE, etc.) |
| Indicators: | Power ON/OFF x 1, HDD x 1, NIC x 2, Power Alarm x 1 |
| Front Panel Control: | Power ON/OFF x 1, System reset x 1, ID Switch x 1, USB2.0 x 2/USB3.0 x 2 |
| Slide Rail: | Tool free guide rail |
| Carton Size: | 860*565*305 mm |
| Net Weight: | 14KG |
| Gross Weight: | 19.1KG |
| Operaing Temperature: | 10° C-35 ° C (without direct light) ; extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
