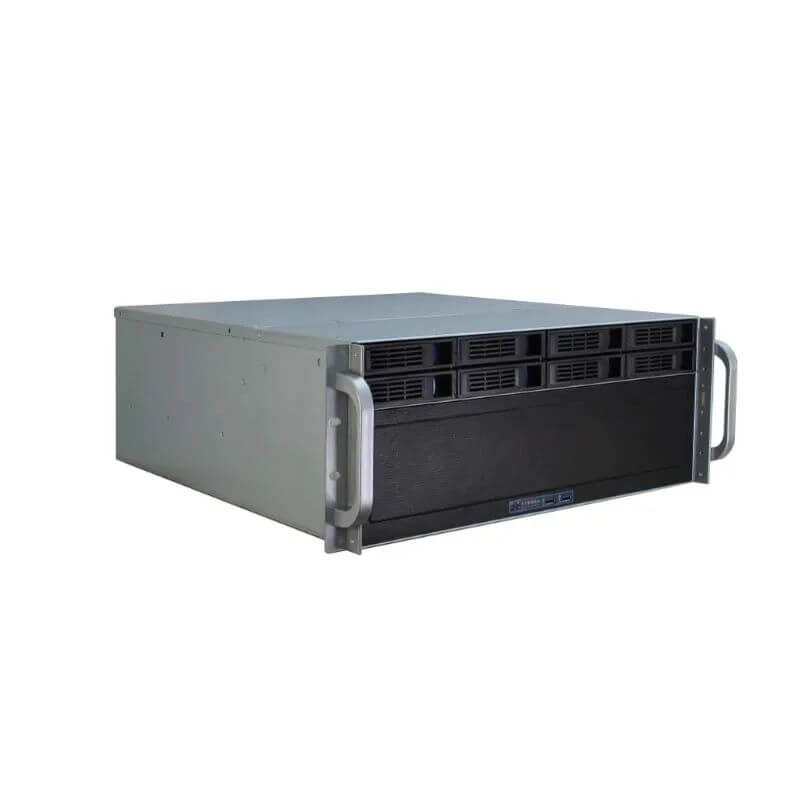

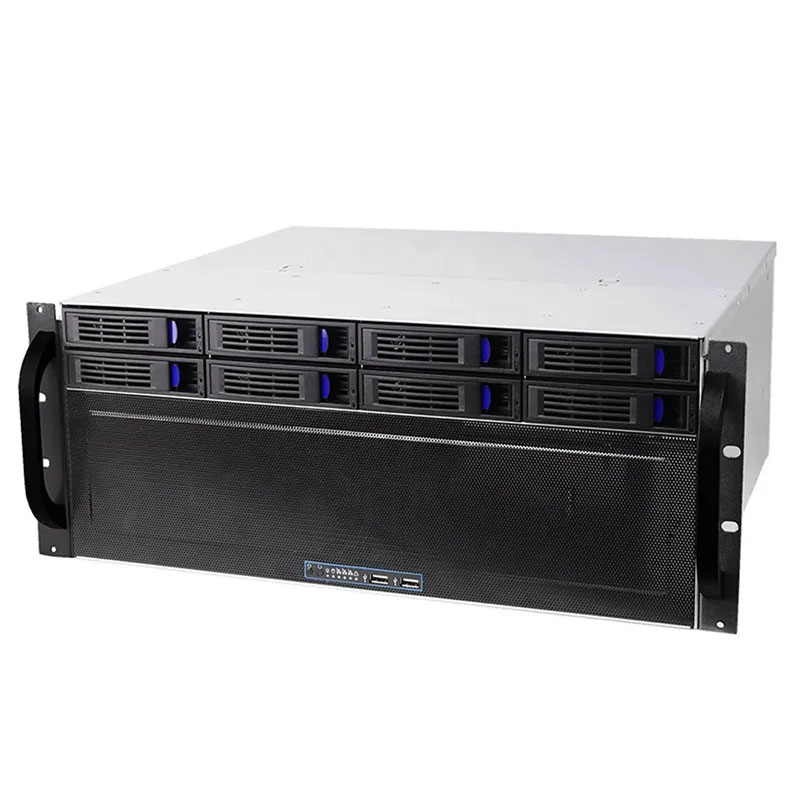

4U Rackmount Server Case -OCS4400-H8-F
• 4U hot-swap chassis provides the best support for various rackmount systems and different applications

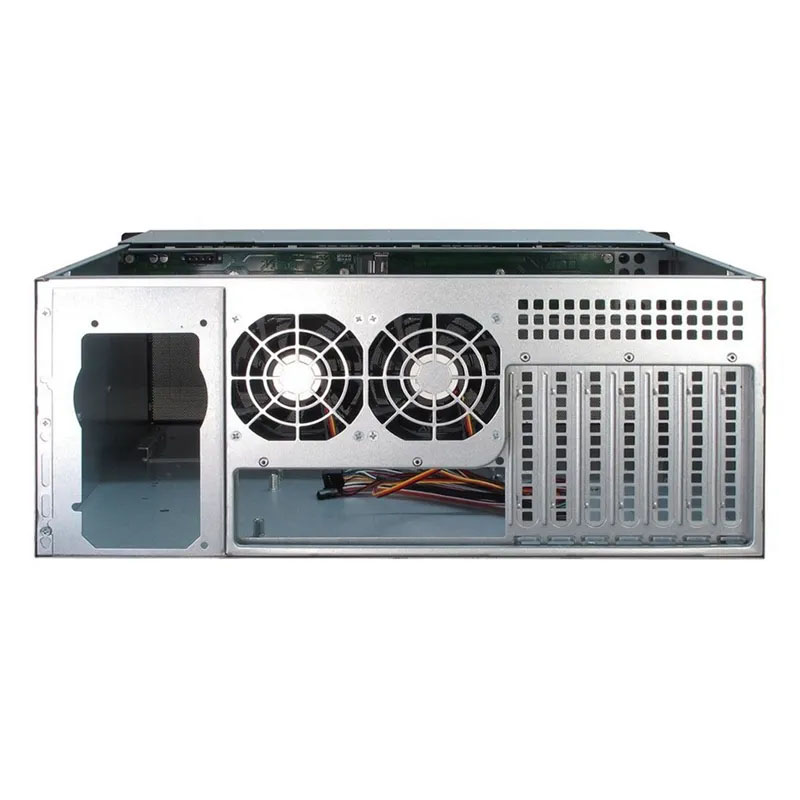

• 2* 80mm cooling fans provides excellent airflow and thermal protection
• 8* 3.5″(or 2.5″) hot-swap HDD, and 7* full-height PCI expansion slot, giving expansion options
Description
Package Information
Inquiry
| Model: | OCS4400-H8-F | |
| Form Factor: | 4U Rackmount Server Case with 8 Hot-Swappable SATA/SAS Drive Bay, MiniSAS /SATA connector | |

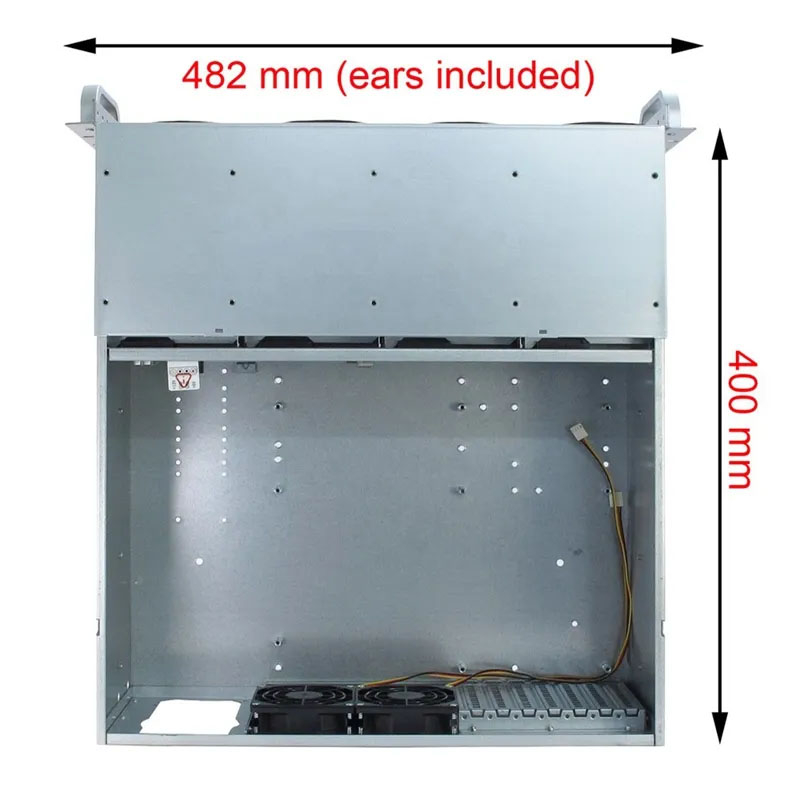

| Size: | 440 (W)* 482 (D)*176 (H) mm; 15.7*19*7 inch | |
| Material: | SGCC 1.2mm. Metal panel and handle | |

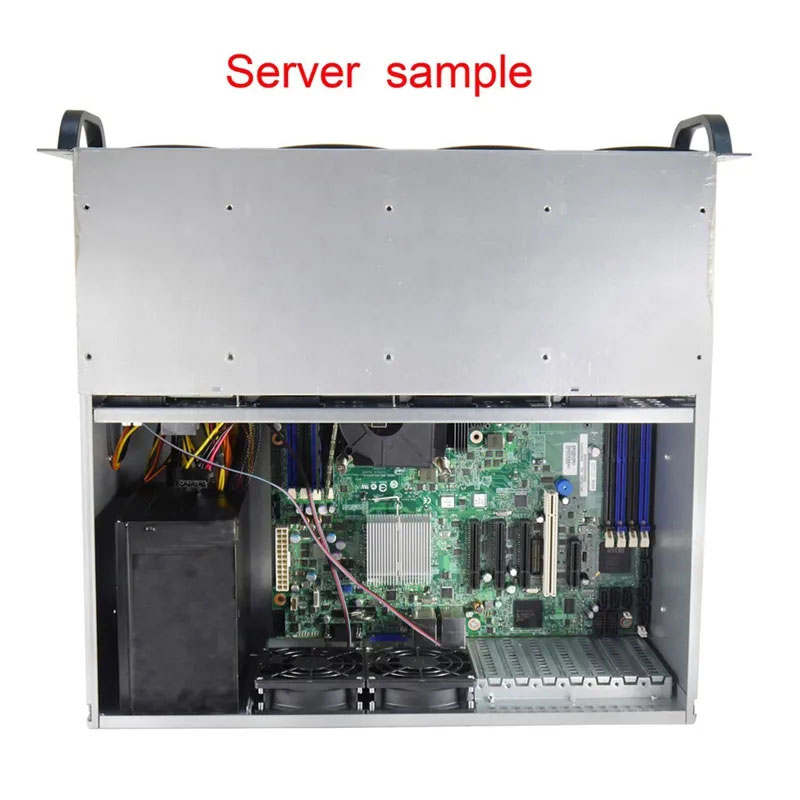

| M/B Form Factor: | EEB(12″ × 13″), microATX (9.6″ × 9.6″), CEB (12″ × 10.5″), ATX (12″ × 9.6″), Mini-ITX (6.7″ × 6.7″) | |
| Drive Bay: | 3.5" or 2.5" external (hot-swap) *8 | |
| PSU Form Factor: | ATX power supply / mini redundant power supply | |
| Expansion Slot: | 7pcs (full size) Riser Slot | |

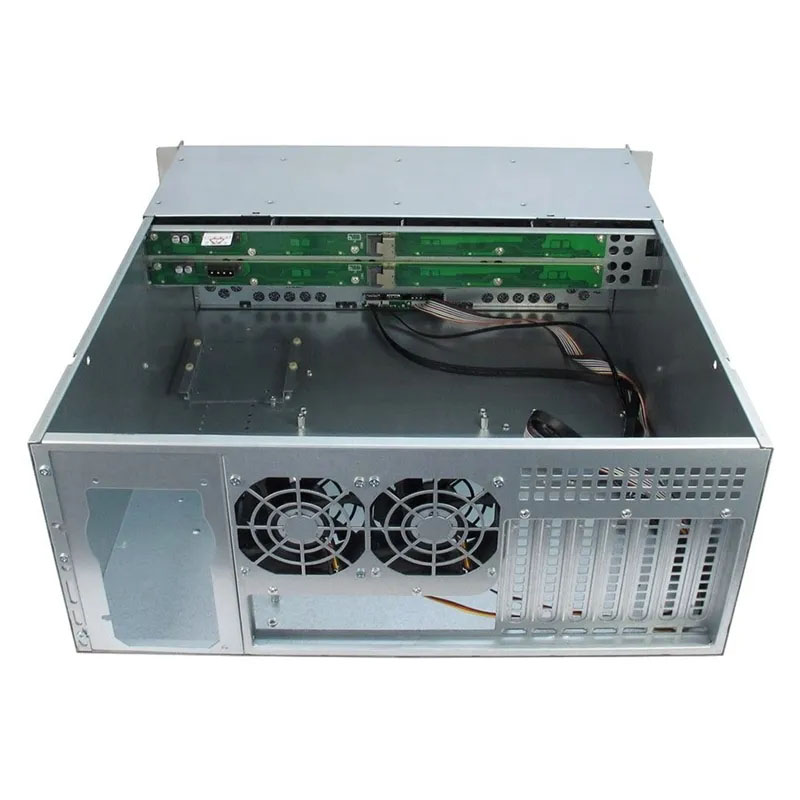

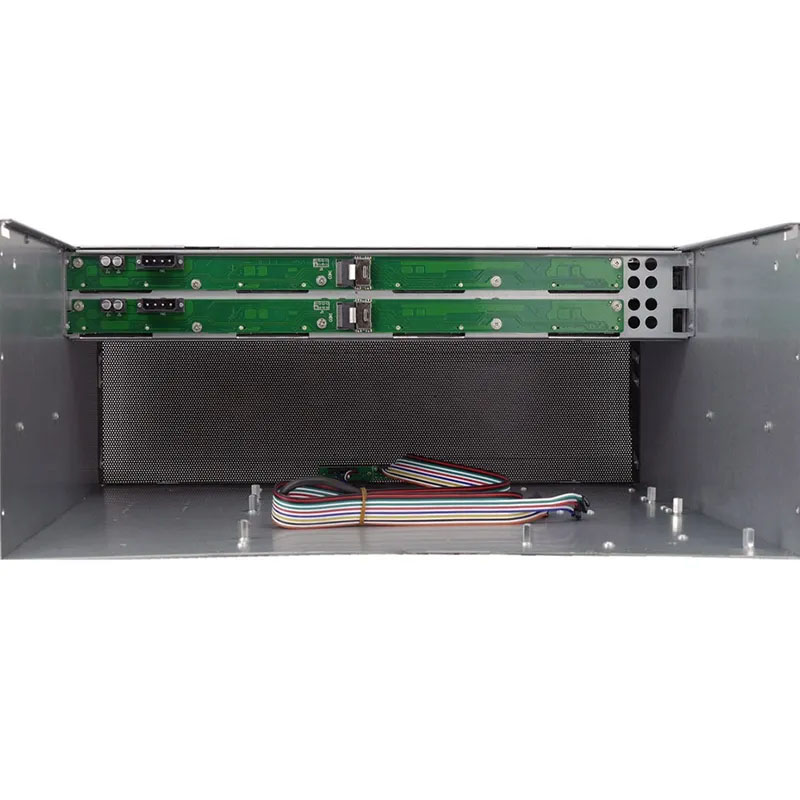

| Hot-swap Backplane: | SATA or SAS backplane (12Gbit / s max) | |
| System Cooling (optional): | Front: No; Middle: No; Rear: 2* 80mm ball bearing fans | |
| Front Panel: | Control button: Power ON/OFF *1, system reset *1; Indicator: Power ON/OFF *1, HDD *1, NETWORK *3, Alarm *1 Ports: USB2.0 *1, USB3.0 *1 | |
| Packing Material: | Polyfoam with carton box | |
| Carton Size: | 540*555*240 mm; 21.2*21.8*9.4 inch | |
| Net Weight: | 8.2 kg | |
| Gross Weight: | 10.2 kg | |
| Environment Temperature: | 0/55℃, 32/131℉ (Operating) -20/60℃, -4/140℉ (Non-Operating) | |
| Relative Humidity: | 5% to 95%, non-condensing | |
Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
