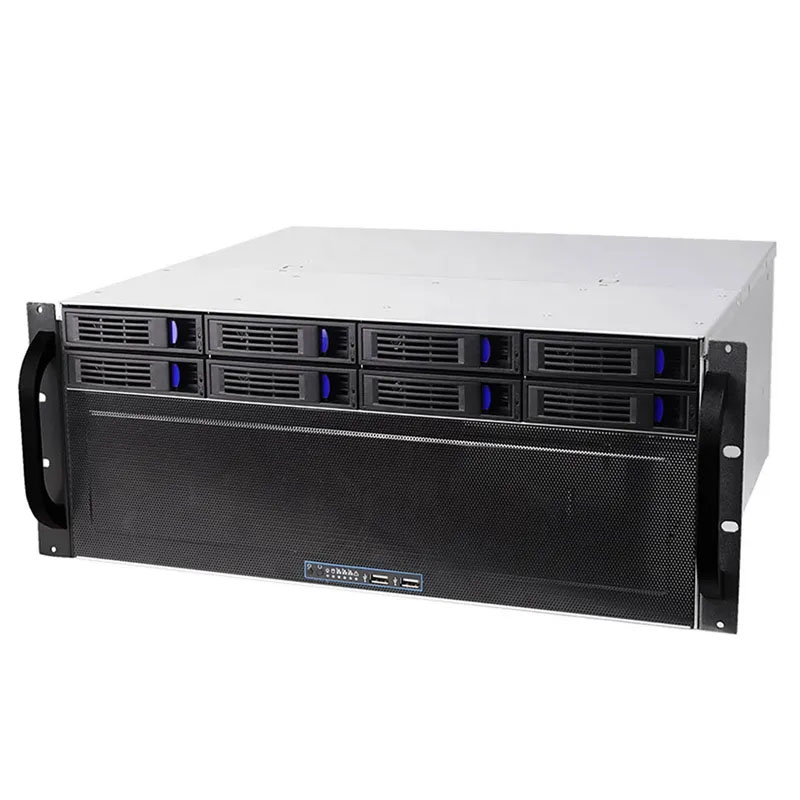

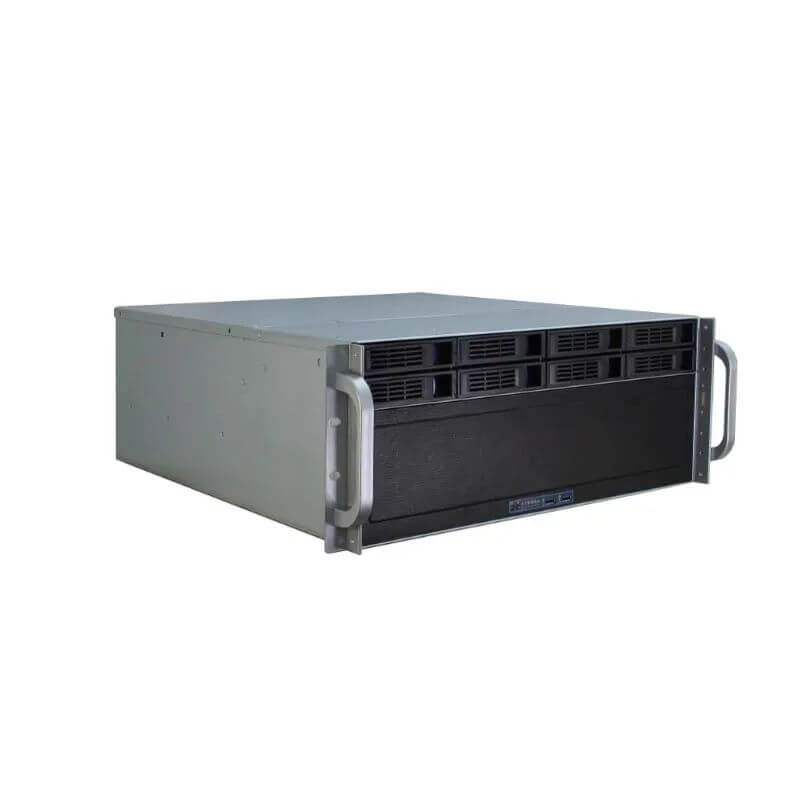

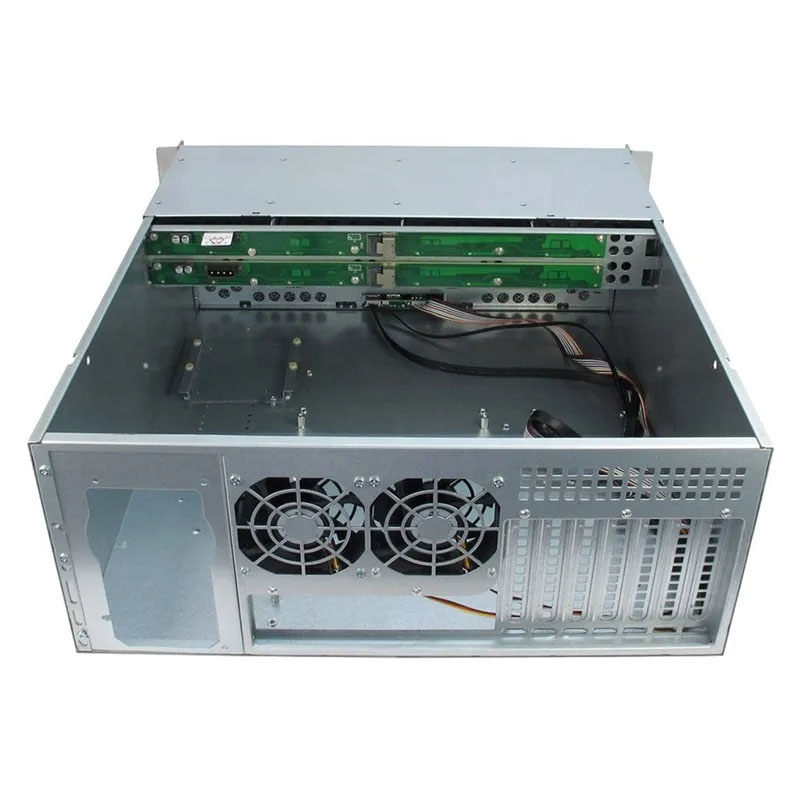

4U Rackmount Server Case -OCS4480-H8-F
• 4U hot-swap chassis provides the best support for various rackmount systems and different applications
• 2* 80mm cooling fans provides excellent airflow and thermal protection
• 8* 3.5″(or 2.5″) hot-swap HDD, and 7* full-height PCI expansion slot, giving expansion options
Description
Package Information
Inquiry
| Model: | OCS4480-H8-F | |
| Form Factor: | 4U Rackmount Server Case with 8 Hot-Swappable SATA/SAS Drive Bay, MiniSAS /SATA connector | |
| Size: | 480 (W)* 482 (D)*176 (H) mm; 18.9*19*7 inch | |
| Material: | SGCC 1.2mm. Metal panel and handle | |
| M/B Form Factor: | EEB(12″ × 13″), microATX (9.6″ × 9.6″), CEB (12″ × 10.5″), ATX (12″ × 9.6″), Mini-ITX (6.7″ × 6.7″) | |
| Drive Bay: | 3.5" or 2.5" external (hot-swap) *8 | |
| PSU Form Factor: | ATX power supply / mini redundant power supply | |

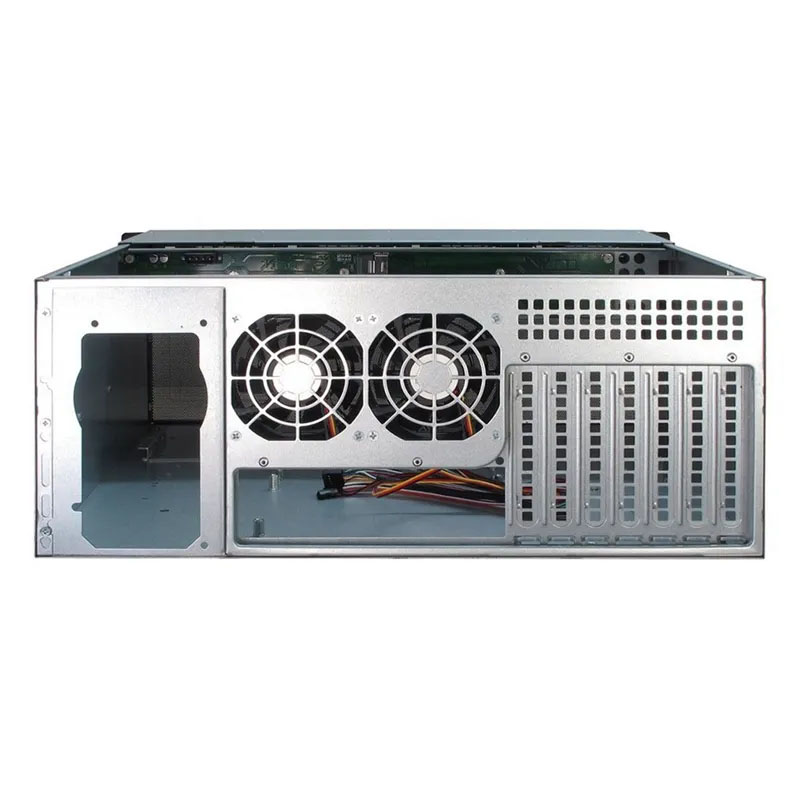

| Expansion Slot: | 7pcs (full size) Riser Slot | |
| Hot-swap Backplane: | SATA or SAS backplane (12Gbit / s max) | |
| System Cooling (optional): | Front: No; Middle: No; Rear: 2* 80mm fans | |
| Front Panel: | Control button: Power ON/OFF* 1, system reset* 1; Indicator: Power ON/OFF* 1, HDD* 1, NETWORK* 3, Alarm* 1 Ports: USB 2.0* 1, USB3.0* 1 | |
| Packing Material: | Polyfoam with carton box | |
| Carton Size: | 680*555*240 mm; 26.7*21.8*9.4 inch | |
| Net Weight: | 8.2 kg | |
| Gross Weight: | 10.2 kg | |
| Environment Temperature: | 0/55 ℃, 32/131 ℉ (Operating) -20/60 ℃, -4/140 ℉ (Non-Operating) | |
| Relative Humidity: | 5% to 95%, non-condensing | |
| Operaing Temperature: | 10 °C-35 °C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% | |
