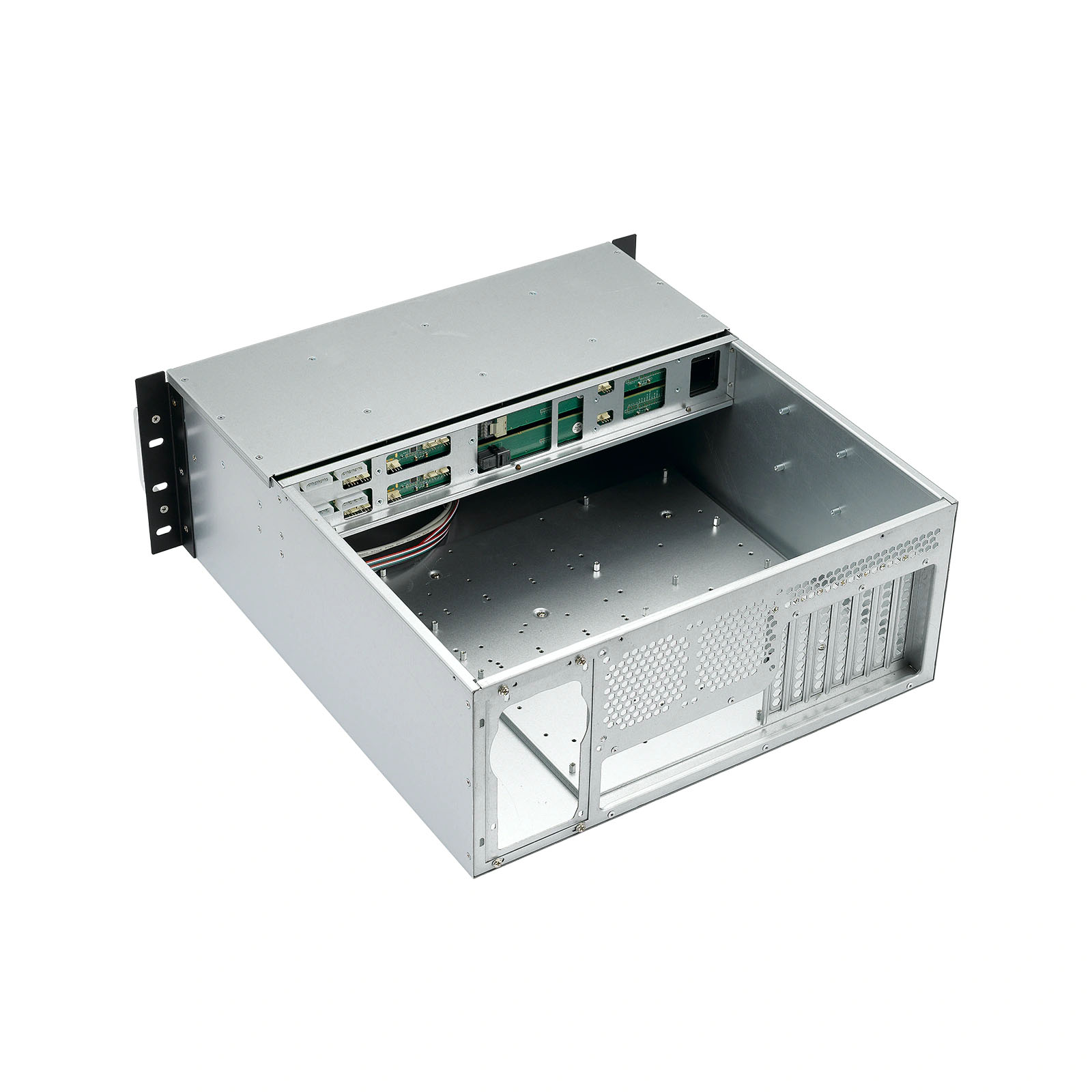

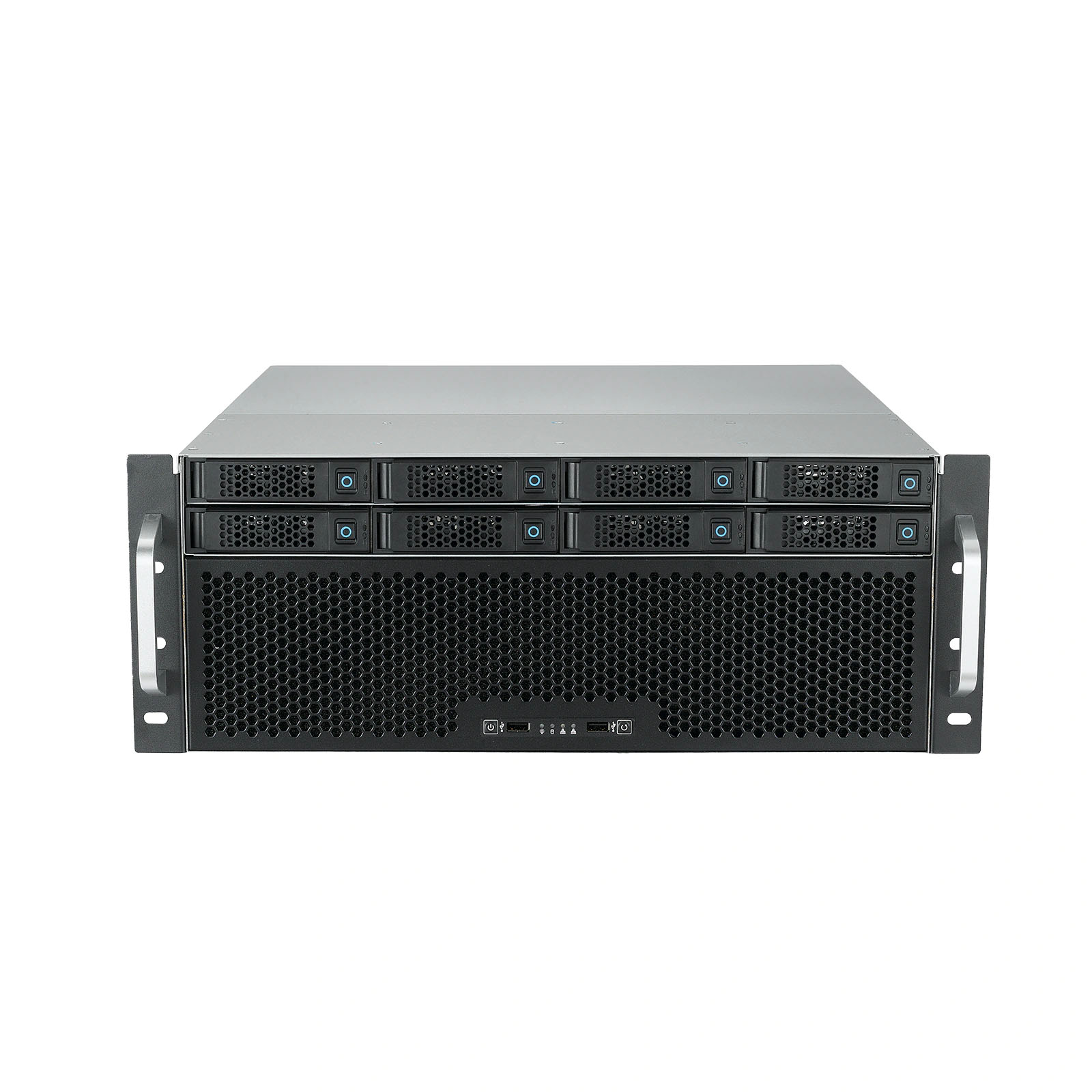

4U Rackmount Server Case -OCS4480-H8-Y
This server chassis offers an impressive range of features and capabilities for businesses looking for a reliable and versatile option.
(Power supply NOT included)
Description
Package Information
Inquiry
| Model: | OCS4480-H8-Y |

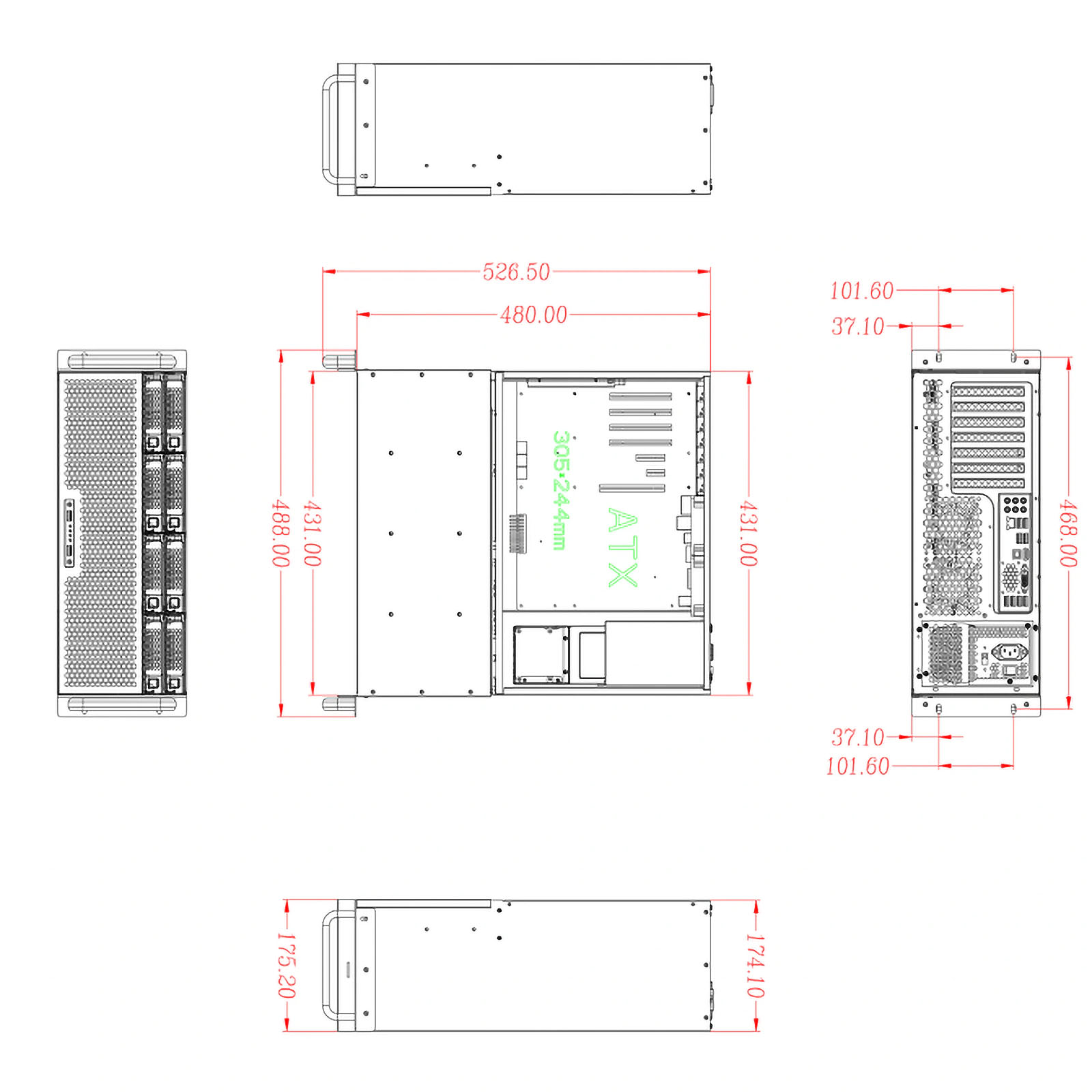

| 4U Server Chassis: | 480 (D)*431 (W)*175 (H) mm; Rackmount style |
| Material: | The cabinet is made of 1.0mm galvanized steel plate. Aluminum handle |
| M/B Form Factor: | ATX (maximum size within 305*244mm) |
| HDD Support: | 8* 3.5 hard disk and 1* 2.5 solid state disk |
| Hard Disk Backplane: | 6GB Mini-SAS directly connected to the backplane (SFF8087 interface), with temperature control, with SGPIO, with time-sharing startup, optional 6GB Mini-sas Expander backplane (SFF8087 interface), with temperature control, with time-sharing startup, with SGPIO |
| Fan: | Standard 4* 8025 fans |
| PSU Form Factor: | ATX |
| SGPIO: | √ |
| Button: | Switch key/USB2.0 interface *2 |
| Panel: | Panel 1.0 honeycomb hole, black powder spraying |
| Cabinet: | Original color of steel plate |
| Indicators: | Power ON/OFF x 1, HDD x 1, NIC x 2, Power Alarm x 1 |
| Front Panel Control: | Power ON/OFF x 1, System reset x 1, ID Switch x 1, USB2.0 x 2/USB3.0 x 2 |
| Slide Rail: | Tool free guide rail |
| Other: | 7* PCI expansion bits |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
