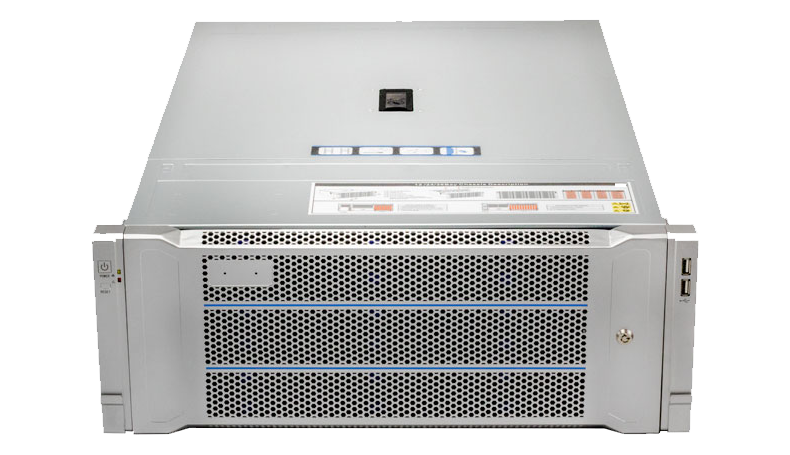

4U Rackmount Server Case -OC465-24-LX
• 4U hot-swap chassis provides the best support for various rackmount systems and different applications
• 3 middle pre-installed cooling fans provide excellent airflow and thermal protection
• The door lock avoids being maliciously damaged to internal components
• 2 x USB ports are designed at the front.
Description
Package Information
Inquiry
| Model: | OC465-24-LX |
| 4U Rackmount Chassis: | 436 (W)* 650 (D)* 177 (H) mm |
| Material: | SGCC 1.0mm |
| M/B Form Factor: | EEB(15″ × 13″)/ EATX(12″ × 13″)/ CEB(12″ × 10.5″)/ ATX(12″ × 9.6)/ M-ATX(9.6″ × 9.6″) |
| PSU Form Factor: | ATX PS2/ CRPS POWER |
| HDD Backplane | 12Gb/s SAS backplane (12Gb/s SAS Expander backplane optional) |
| HDD Support: | 24 x 3.5" (or 2.5") HDD |
| Expansion Slot: | 7* Full-heigh PCI slot |
| SGPIO: | √ |
| System Cooling Fans: | 3* 12038 Fan, High speed, high air volume, high air pressure |
| Smart Fans Speed Control: | Backboard support |
| Air Duct: | Support for customization, optional materials (SGCC/PC/ABS/PE, etc.) |
| Indicators: | Power indicator x 1, HDD x 1, Fault indicator x 1, Network indicator x 2 |
| Panel Setting: | Power ON/OFF x 1, System reset x 1, USB2.0 x 2, Safety mask x 1 |
| Slide Rail: | Tool free guide rail |
| Carton Size: | 805* 580* 295mm (0.138CBM) |
| Net Weight: | 17 kg |
| Gross Weight: | 19 kg |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
