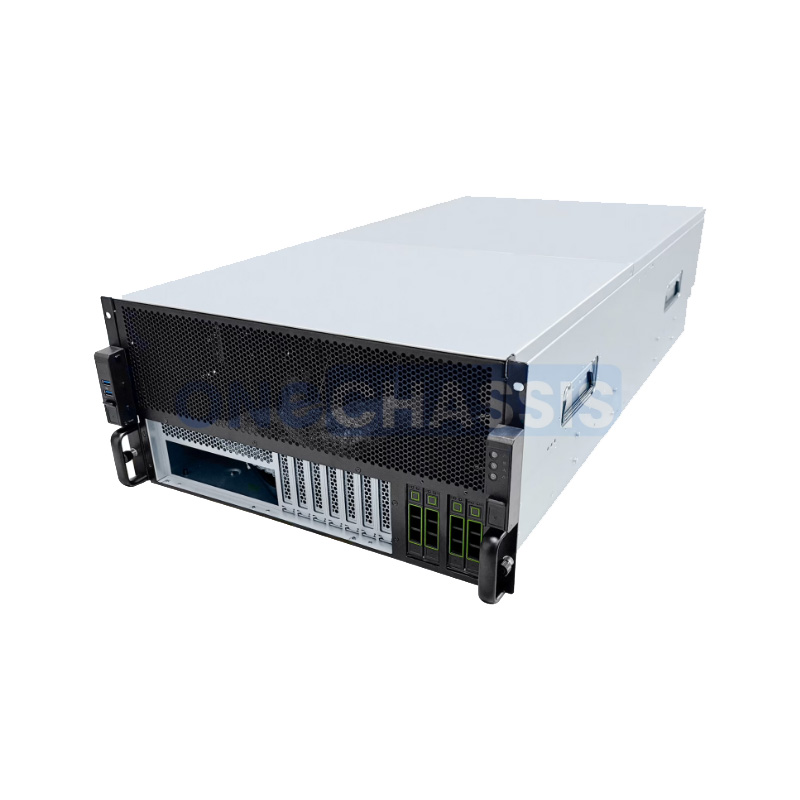

5U GPU Server Chassis -OCG5870A-5H4-R
• Multi-GPU Support Up to 10 Cards
• Flexible Motherboard Compatibility
• Redundant Power Supply Architecture
• Efficient Cooling System
• Scalable Storage Options
• Gen5 PCI-E Riser Cable Options
• Robust Construction & Materials
Description
Package Information
Inquiry
| Model: | OCG5870A-5H4-R (Barebone System) |
| 5U GPU Server Chassis: | 870(D) x 435(W) x 220(H) mm |
| Material: | Baosteel SGCC 1.0-1.2 mm |
| M/B Form Factor: | Asrock ROME2D32GM-2T/ Asrock GENOA2D24G-2L-R101/ EEB(12" x 13")/ CEB(12" x 10.5")/ ATX(12" x 9.5")/ MicroATX MAX |
| Front Hard Drive: | Support 4* 2.5-inch SAS/SATA direct-plug or hot-plug hard disks |
| PSU Form Factor: | 4+1, 3+2, 2+2, 3+1 CRPS redundant power supply |

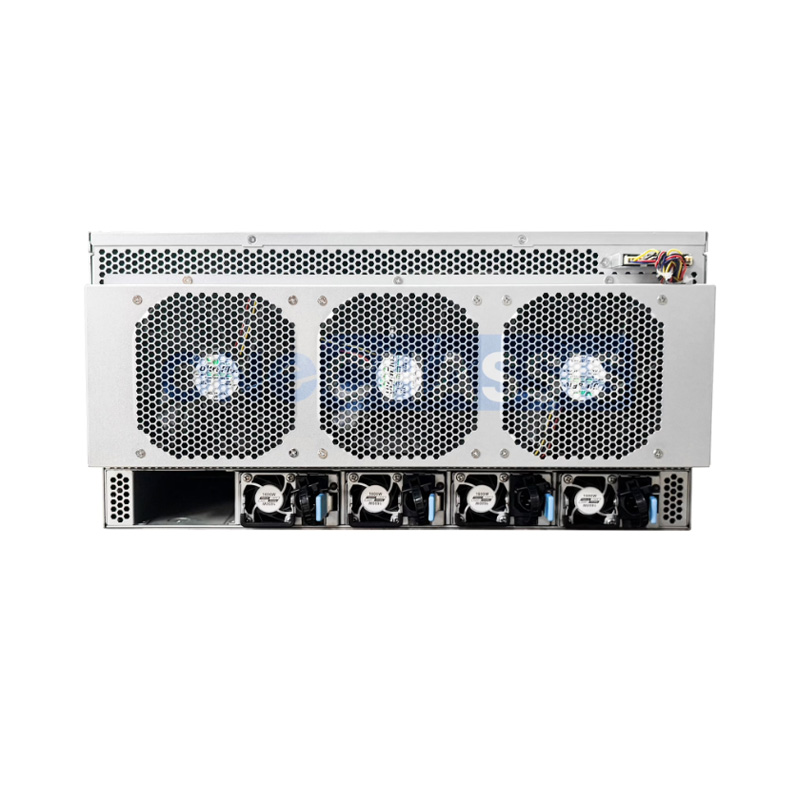

| Cooling Fan: | Standard configuration: Center 8x 8038 fans, Rear 3x 12038 fans; Optional configuration: Center 8x 8056 fans, Rear 5x 8038 fans |
| GPU Support: | > 5-card RTX 4090 > 6-card double-width GPUs > 8-card and 10-card double-width GPU setups This makes it ideal for tasks requiring heavy parallel GPU computing |

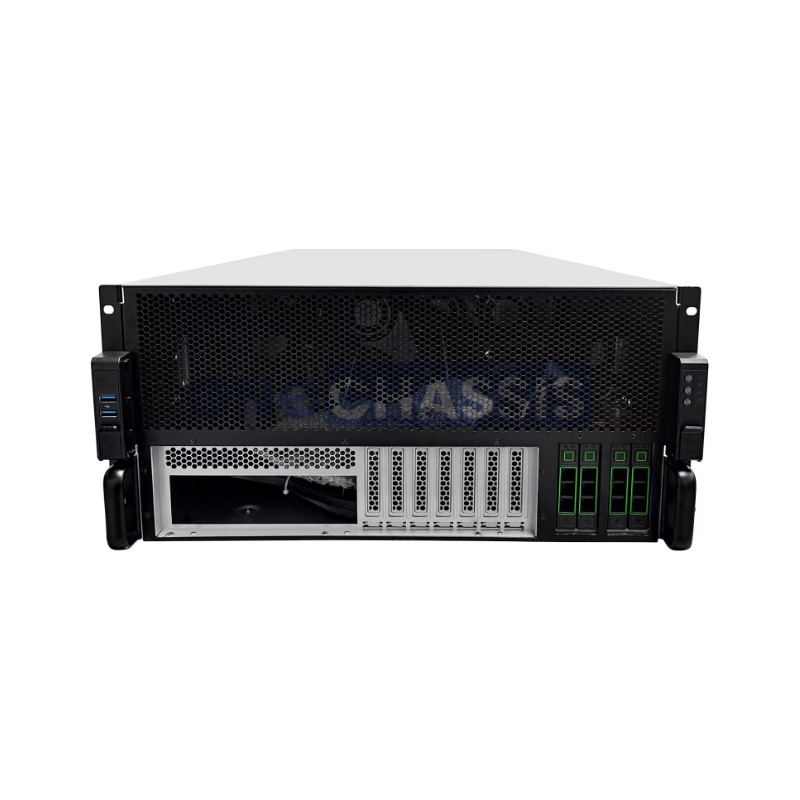

| Front Panel Interface: | Power Button Switch/ Reset Button Switch/ USB3.0 *2 |
| Indicator Light: | Power Indicator/ Hard Disk Indicator/ Network Connection Indicator *2 |
| Expansion Slot: | Support 5-Card4090 GameCard/ 6-Card Double-WidthGPU/ 8-CardDouble-WidthGPU/ 10-CardDouble-WidthGPU; Select either the PCI-E-16X Gen5 Riser Cable or the PCI-E-16X Gen5 Riser with MCIO Cable |
| Guide Rail: | Optional |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
