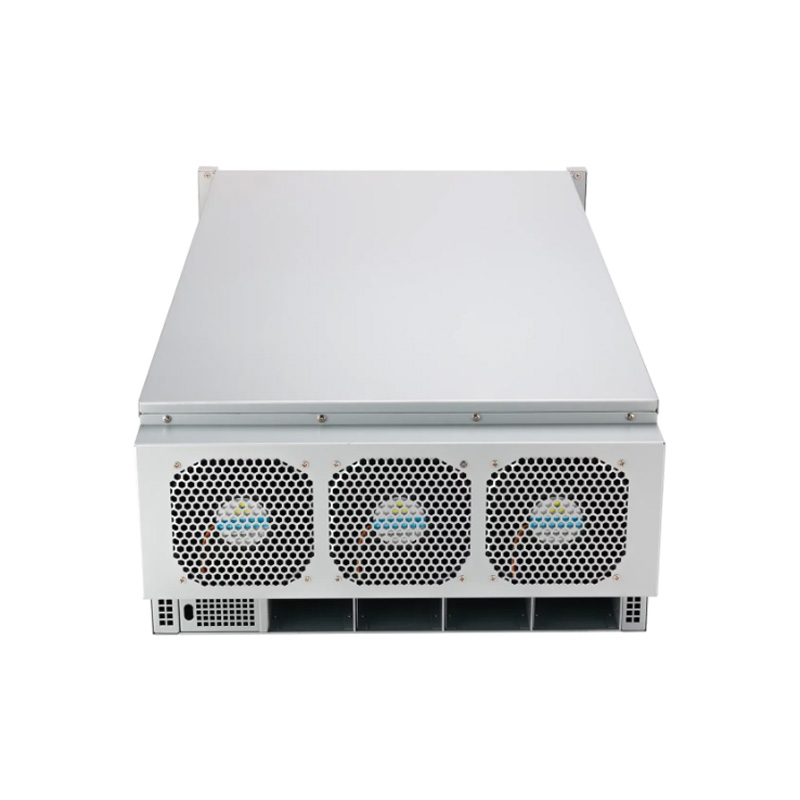

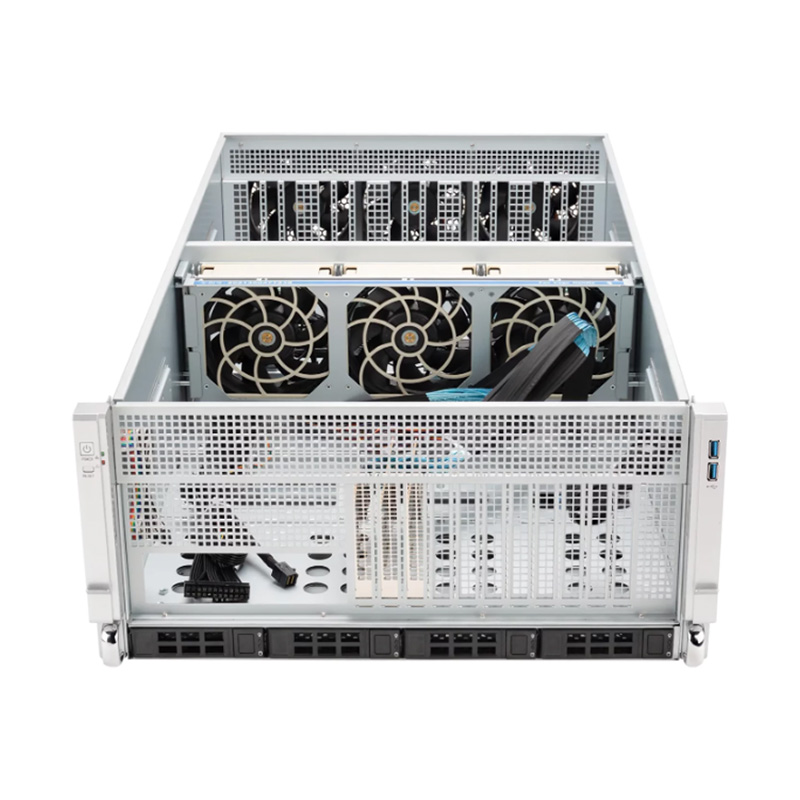

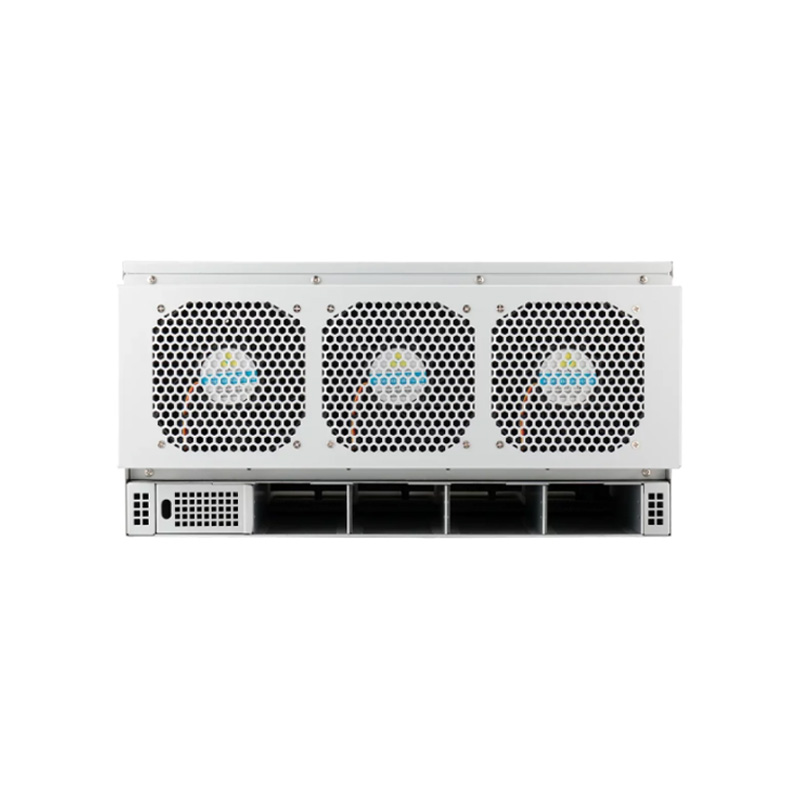

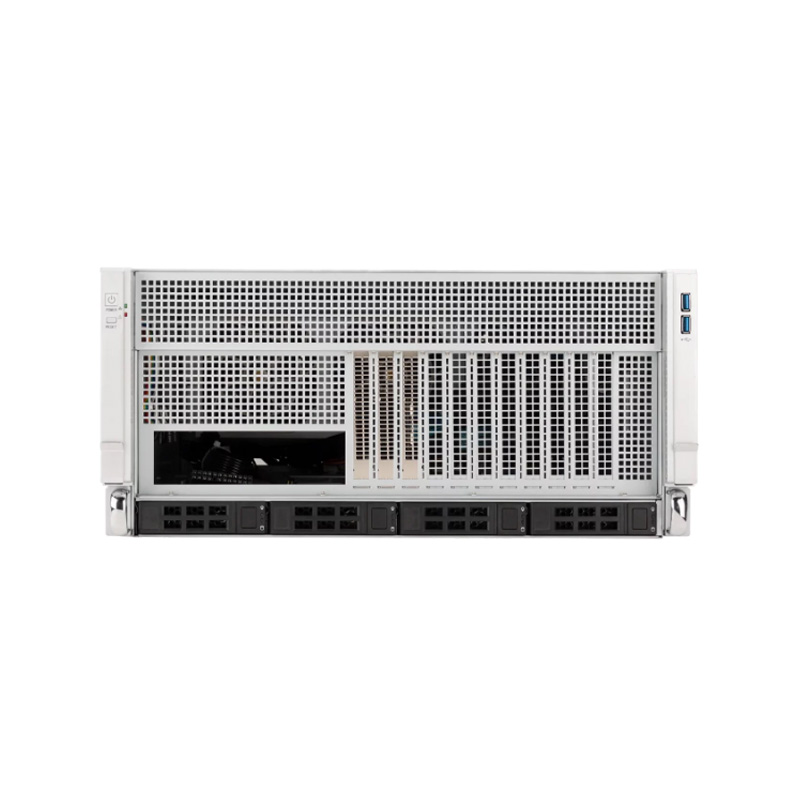

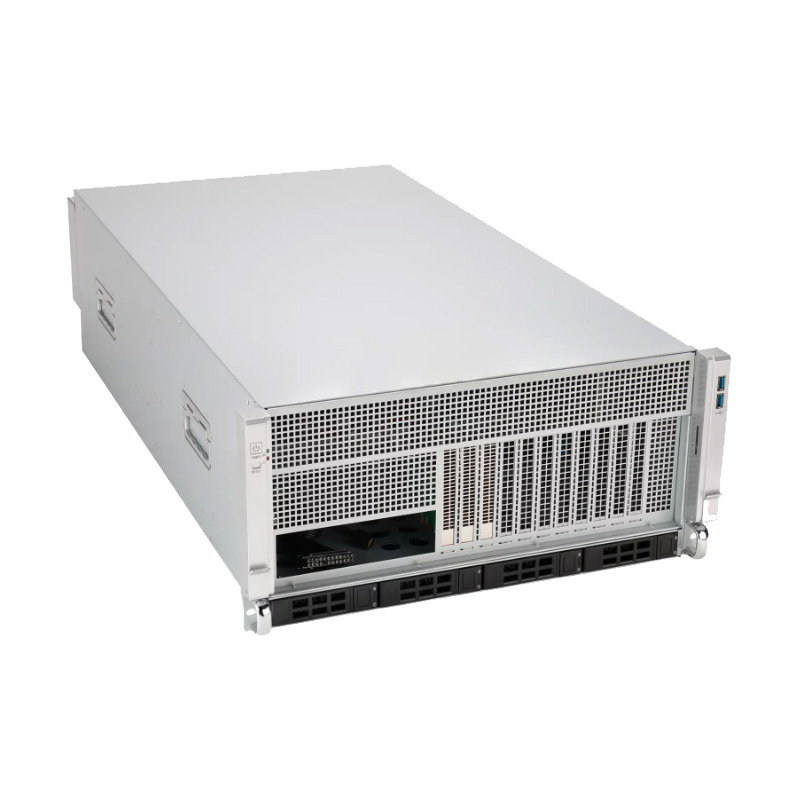

5U GPU Server Chassis -OCG5880-5H4-L
• Support E-ATX motherboards and is compatible with standard CRPS power modules
• Accommodate up to five 4090 GPU cards and can be customized according to specific requirements
• Handles on both sides for easy transportation and installation
Description
Package Information
Inquiry
| Model: | OCG5880-5H4-L (Barebone System) |
| 5U 5GPU Server Chassis: | 447(W) x 880(D) x 220(H) mm |
| Material: | 1.0 mm SGCC Zinc-Coated Steel |
| Drive Bays: | 4* 3.5″ hot-swappable SATA (II or III) / SAS (II or III) 12Gb/s drive bays |
| Cooling Fan: | 6* 12 cm fan (12038 chassis fans *3/ GPU reinforcement fans *3） |
| Dual-port Cards: | 3 pieces of 8654-8i dual-port cards(optional) |
| GPU Riser Card: | 5 pieces of GPU riser card(Gen4), 5* PCIE3.0X16, support up to 5 public GPUs |
| M/B Form Factor: | Support motherboard size up to E-ATX (12" x 13") |
| PSU Form Factor: | Support standard CRPS power modules, adopt 4+1 redundancy mode, and come standard with 4* 1600W power modules |
| Connector: | 2* USB3.0 |
| System Control: | 1* Power SW, 1* Reset SW, 1* LAN LED, 1* Alert LED |
| Cable: | 5 pieces of 8654-8i dual-header cables Motherboard 24pin power supply cable *1 CPU power supply cable *2 GPU backplane power supply cable *4 4090 VGA card power cable *5 Hard Disk backplane power cable *1 |
| Operaing Temperature: | 10°C-35°C (without direct light); extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
