5U GPU Server Chassis -OCG5800-8H4-L
• Support the Asrockrack ROMED16QM3 motherboard, compatible with standard CRPS power modules, adopt a 4+1 redundant mode, and come standard with four 1600W power modules
• Excellent ventilation system and equipped with six 120mm fans
• Handles on both sides for easy transportation and installation
Description
Package Information
Inquiry
| Model: | OCG5800-8H4-L (Barebone System) |
| 5U 8GPU Server Chassis: | 880(D) x 435(W) x 220(H) mm |
| Material: | 1.0 mm SGCC Zinc-Coated Steel |
| Colour: | Nnatural color of steel plate |
| M/B Form Factor: | Support E-ATX/ATX/Micro ATX motherboards of 12" x 13" and smaller sizes (the motherboard needs to support 2/5 PCIEX16 expansion slots) |

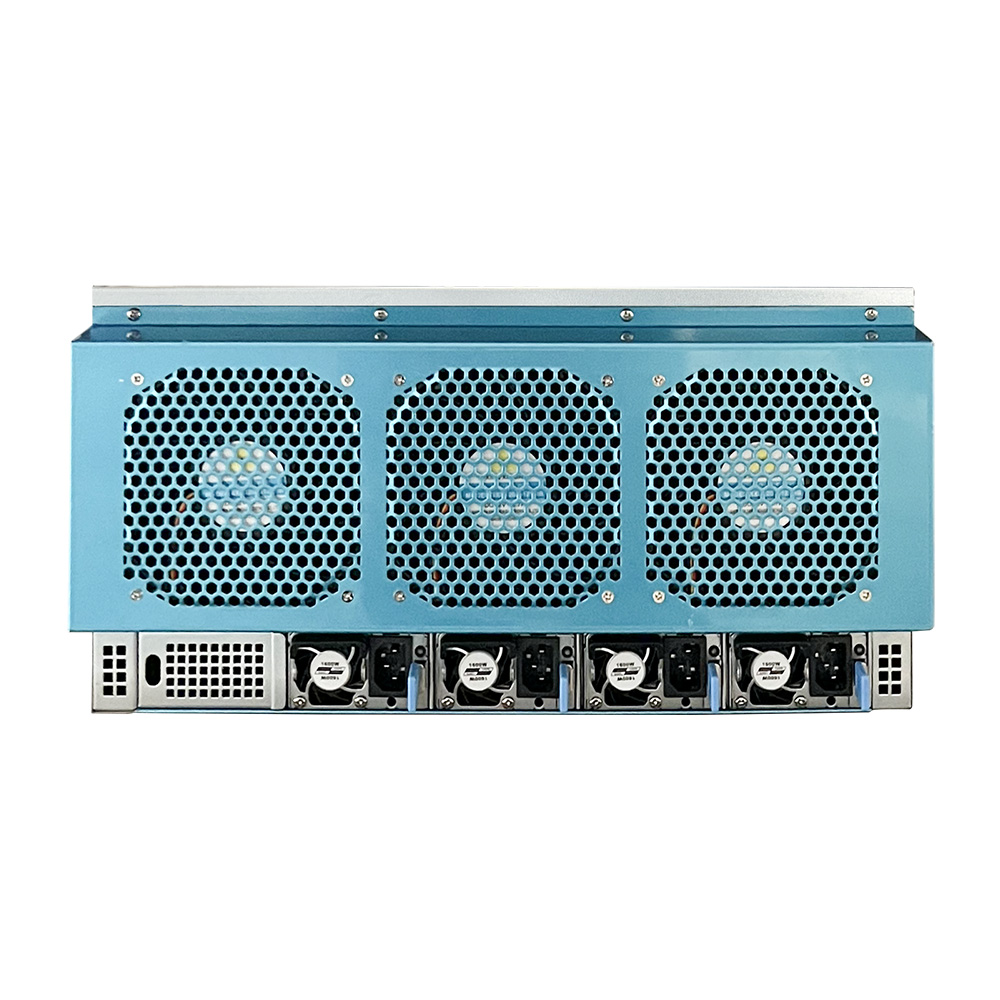

| PSU Form Factor: | Support standard CRPS power modules, adopt 4+1 redundancy mode, and come standard with 4*1600W power modules |
| Drive Bays: | 4x 3.5" hot-swappable SATA (II or III) / SAS (II or III) 12Gb/s drive bays |
| Cooling Fan: | Standard quotation with 6* 120mm fans |

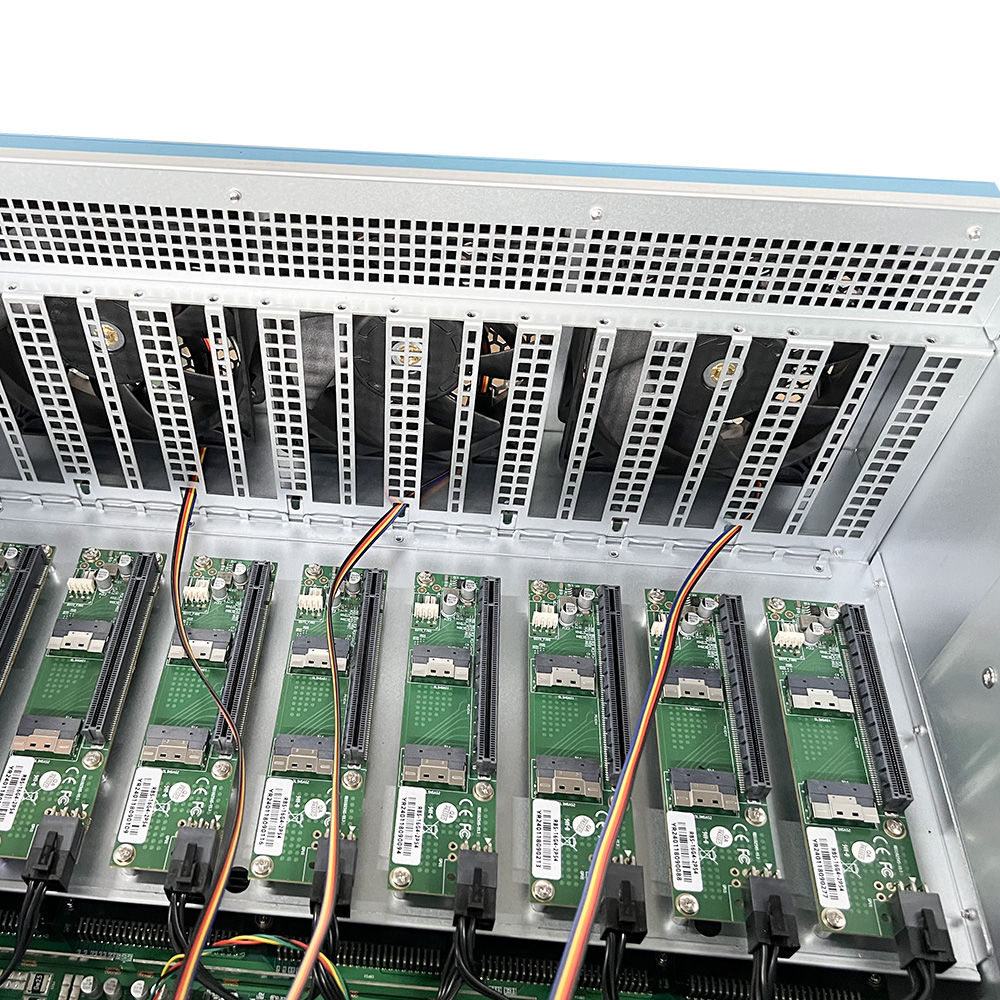

| PCIE Channel： | 8* PCIE3.0X16, supports up to 8 public GPUs |
| Connector: | 2* USB3.0 |
| System Control: | 1* Power SW, 1* Reset SW, 1* LAN LED, 1* Alert LED |
| Applicarion: | Cloud storage, cloud computing, Render, etc. |
| Operaing Temperature: | 10°C-35°C (without direct light) ; extended operating temperature: 5°C-40°C (restrictive configuration satisfied); storage temperature: 20%-90% |
| Transportation & Storage Temperature: | -40°C-70°C |
