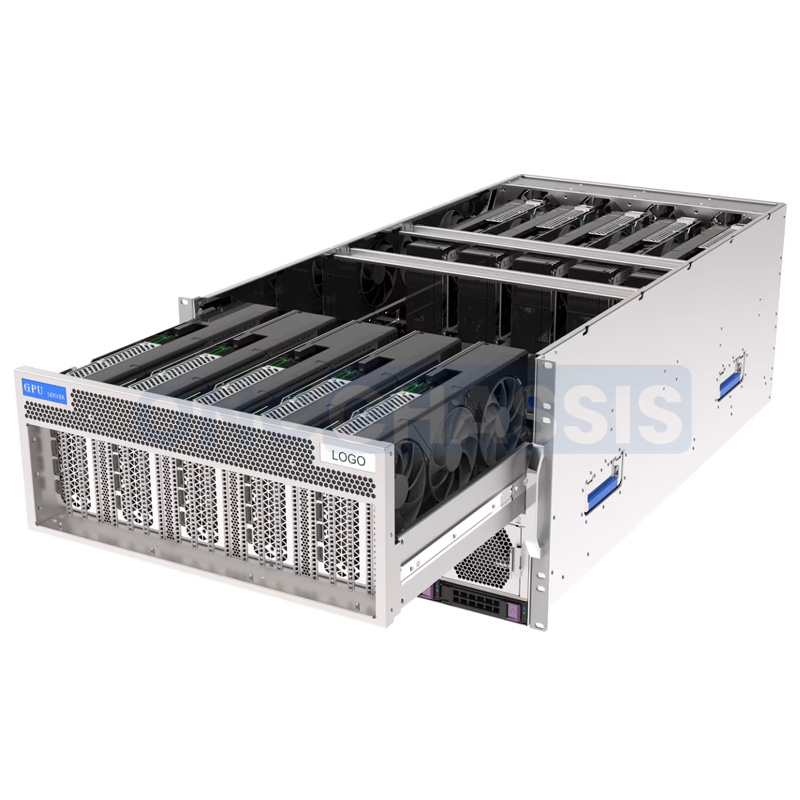

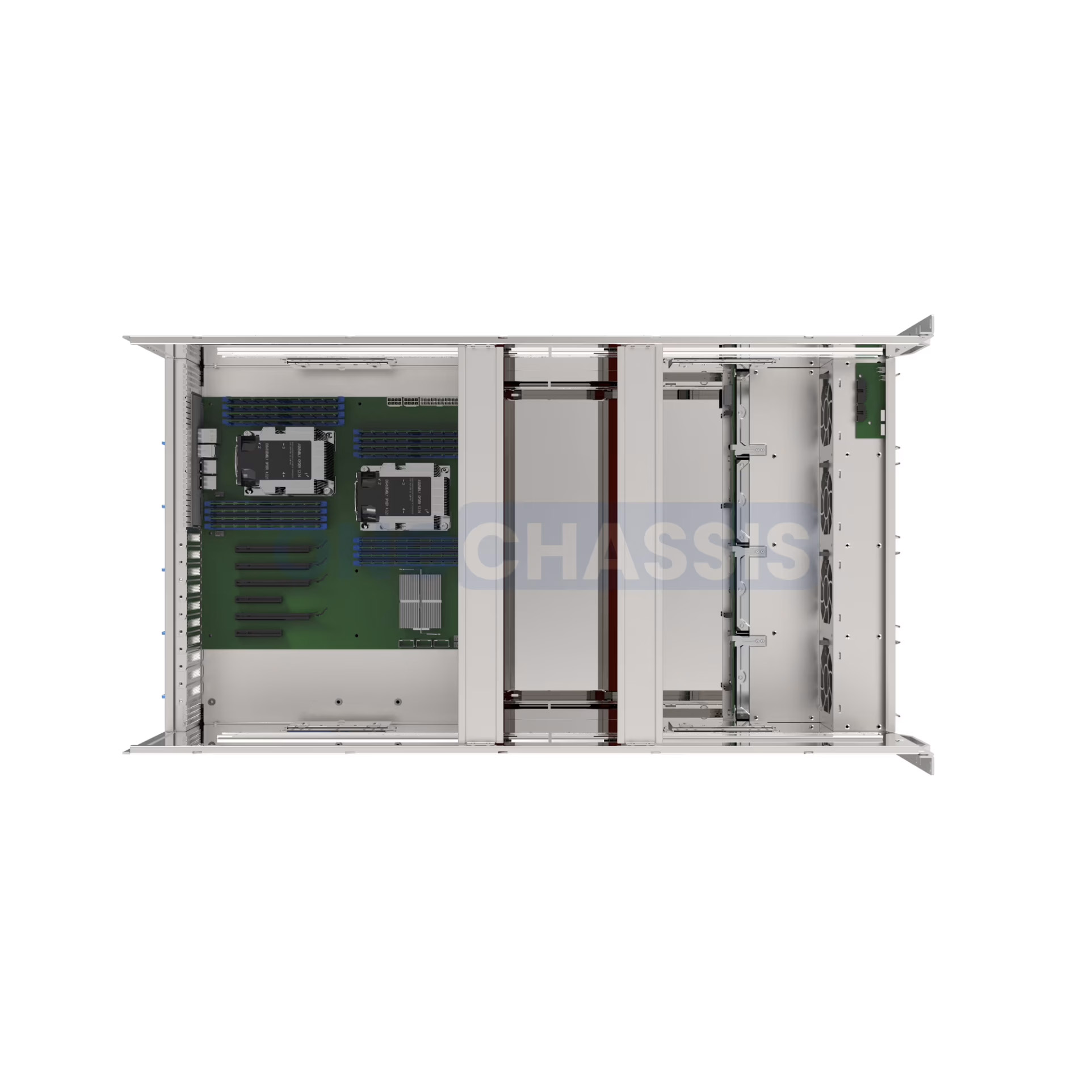

7U Rack-mounted GPU Server Chassis -OCG7850-10H4-C
• Massive GPU Acceleration
• Flexible Hot-Swappable Storage
• Advanced Cooling Architecture
• Redundant Power Supply Support
• Extensive Customization
• User-Friendly Front Panel
A robust and highly expandable server chassis engineered for the most demanding computing environments.
Description
Package Information
Inquiry
| Model: | OCG7850-10H4-C (Barebone System) |
| 7U 10GPU Server Chassis: | D850 × W438.4 × H310 mm; Rackmount style |
| Material: | SGCC 1.0 mm |

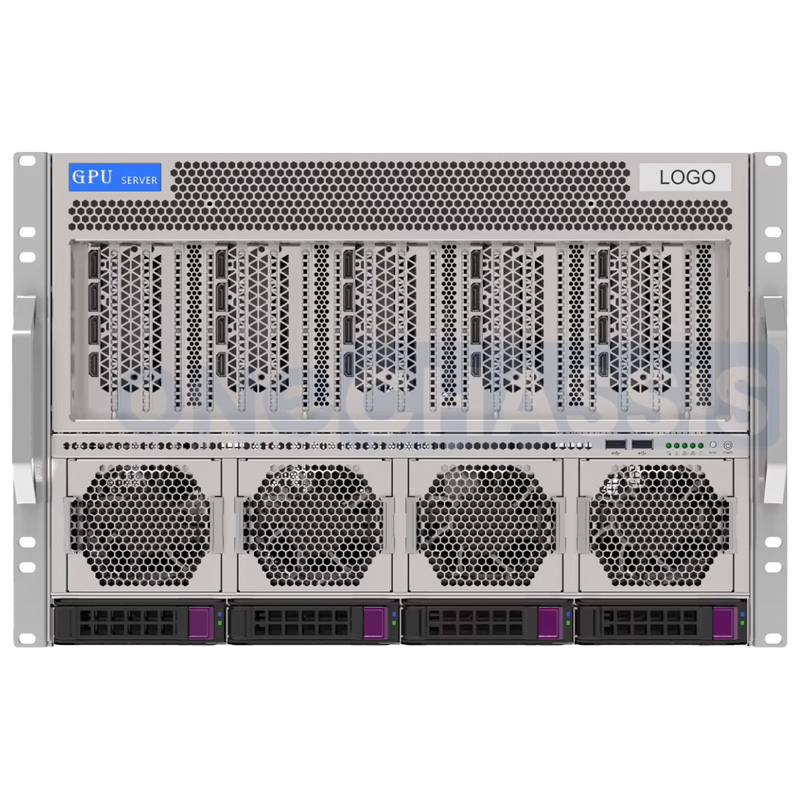

| Front Panel Interface: | Buttons: Power On/Off, Reset; LEDs: Power status indicator, Hard drive indicator, Information indicator, Network indicator, Network indicator *2; USB 2.0 *2 |
| Storage: | Support 4 x 3.5"/2.5" hot-swappable hard drives |

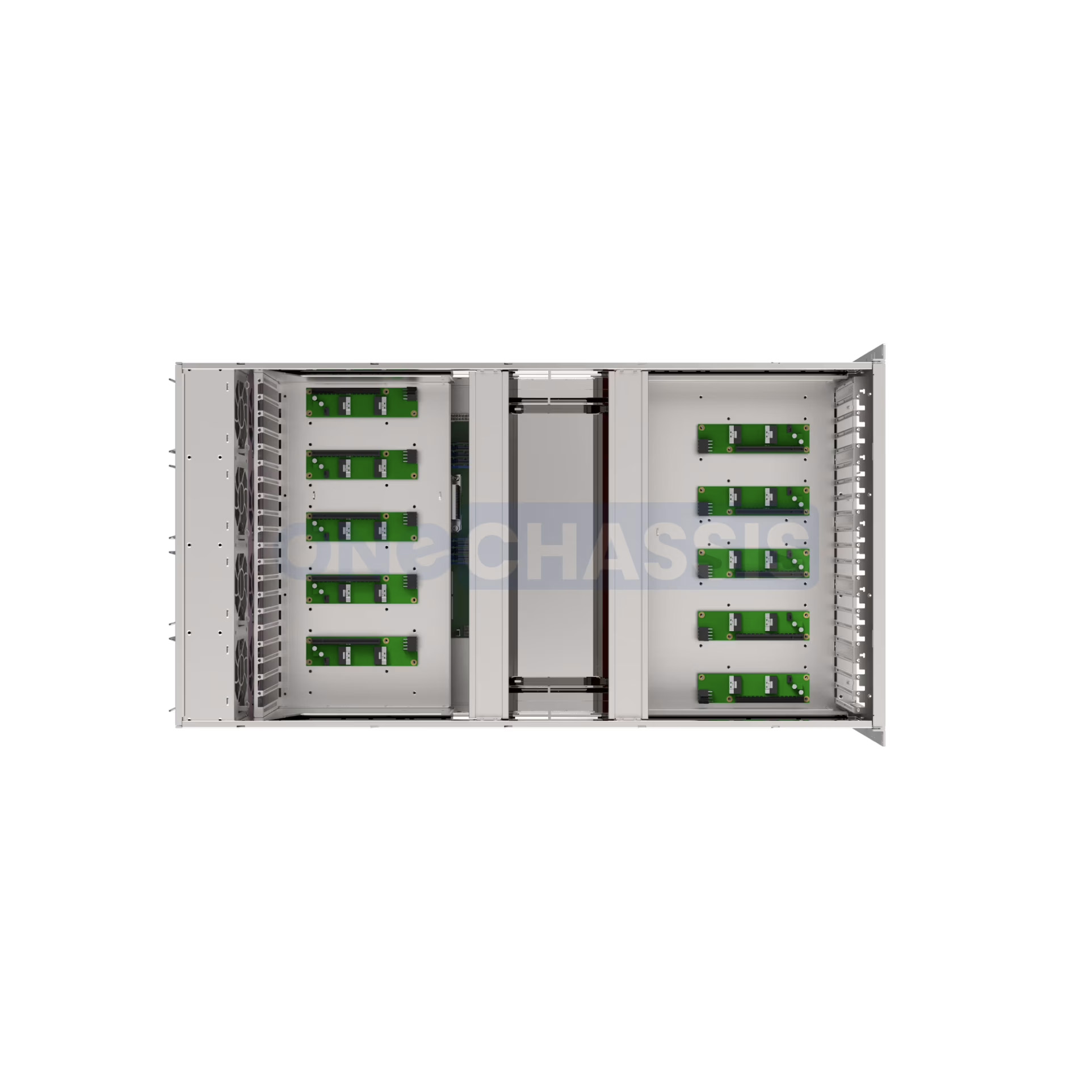

| PCI-e Expansion: | > The front support 5x4 fan cards and is compatible with up to 10 double-width cards > The rear support 5x4 fan cards and is compatible with up to 10 double-width cards > Graphics card size requirements: Width support 4x4, length up to 360mm, and height no more than 142mm (additional height cover required to install cards exceeding this height) |

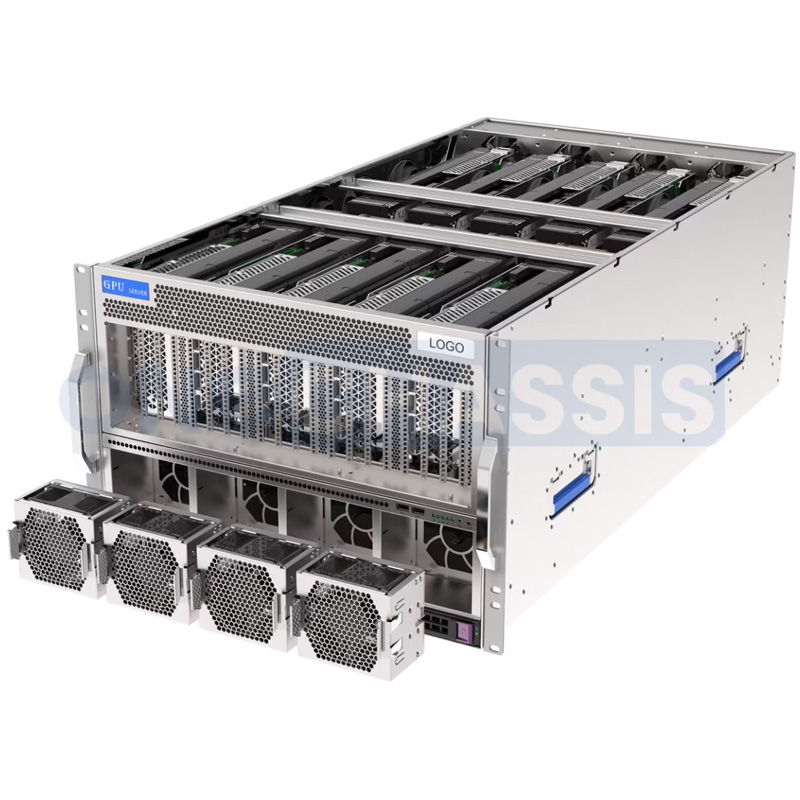

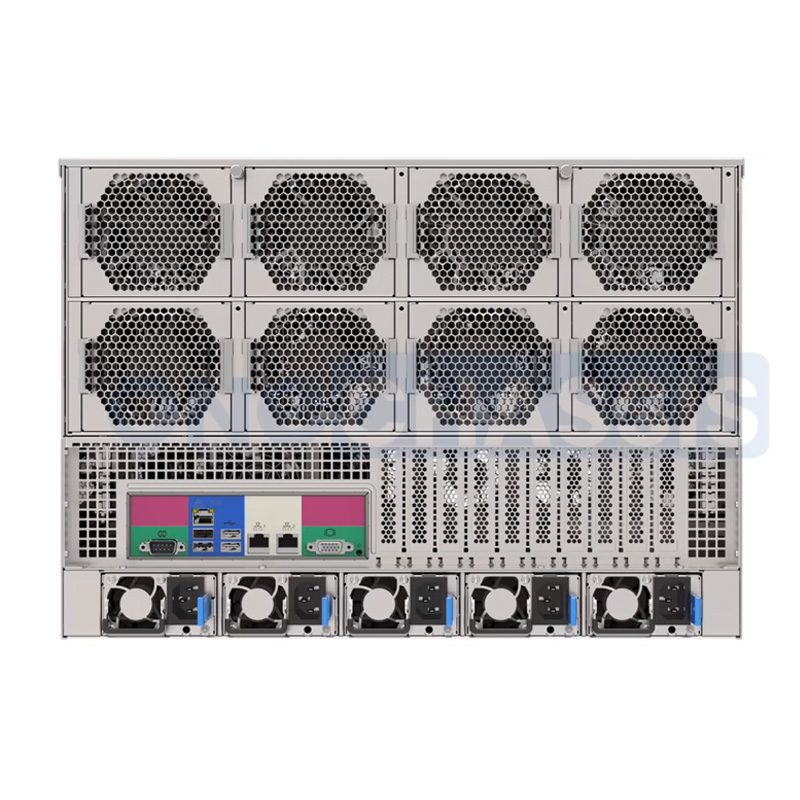

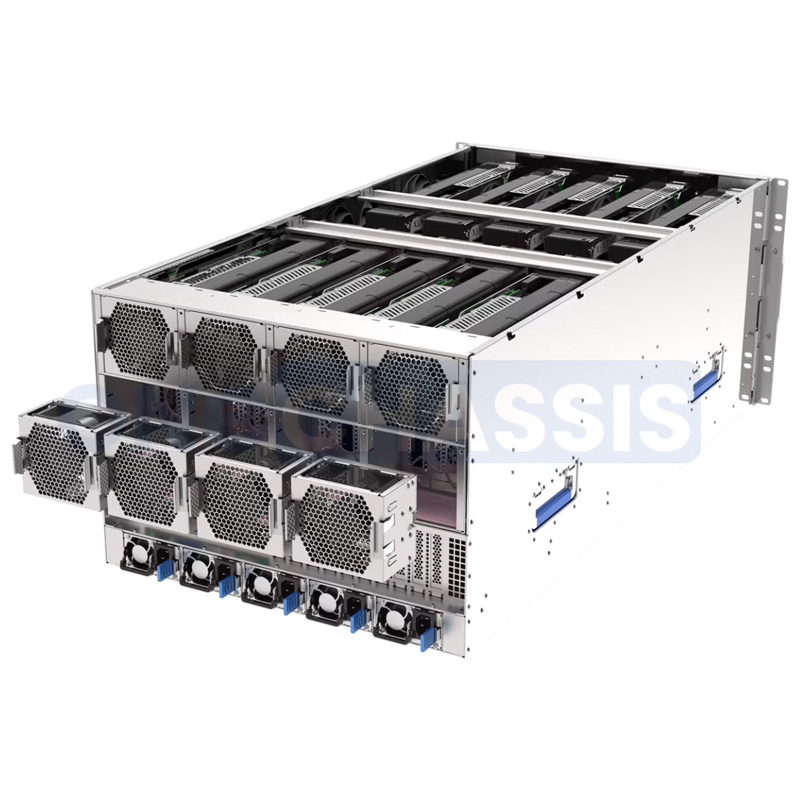

| Fan Configuration: | > The front panel support 4 x 8038 hot-swappable fan modules, each with a vibration damper > The rear panel support 8 x 8038 hot-swappable fan modules, each with a vibration damper > The front GPU tray PCIe slot support 3 x 12038 fans (optional) |
| Backplane: | 4 x 3.5"/2.5" SATA/SAS/NVME backplanes |
| PSU Form Factor: | Support CRPS 800W/1300W/1600W/2000W/2700W 4+1 redundant power supplies |

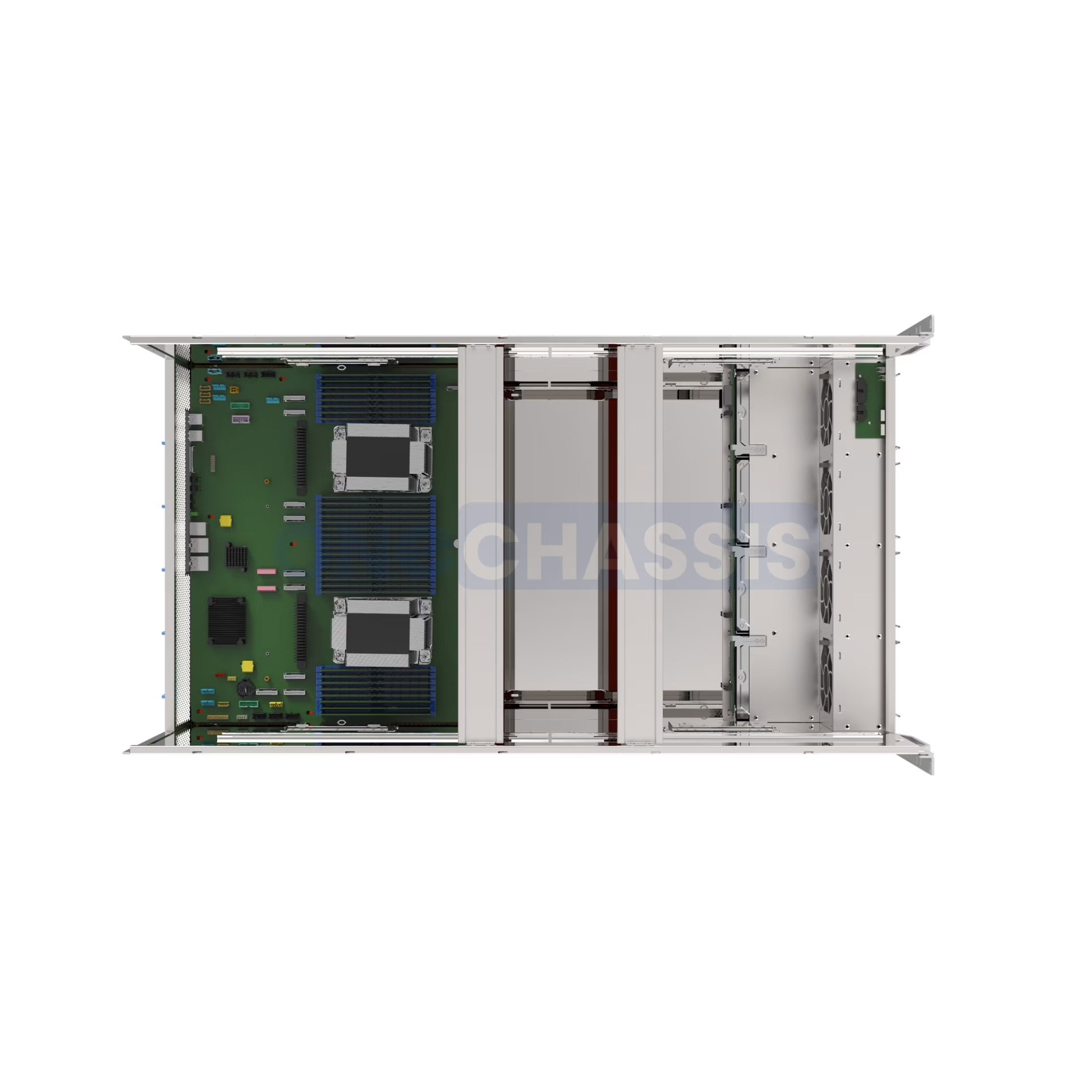

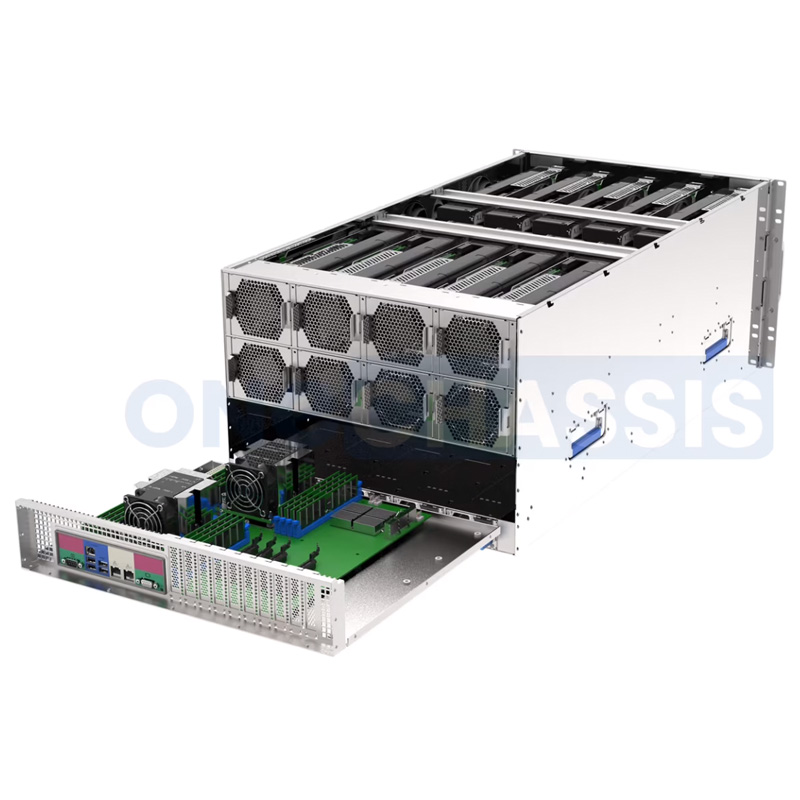

| MB Compatibility: | 1. Support standard EEB motherboards and quad-GPU motherboards. 2. Support the Aeon 4th-generation INTEL motherboard SP2C741D32G-2L (optional). 3. Other motherboards can be customized based on customer needs. |
| Packaging: | Professional double-layer packaging (blank inner box + customizable outer box) |
| Label: | Reserved space for logo and product information label |
| Environmental Specifications: | Operating temperature: 10°C to 35°C (41°F to 95°F) Operating relative humidity: 8% to 90% (non-condensing) |
| Rack Guide Rail: | Optional |
| Customization: | Customizable logos, drawer box colors, OEM packaging materials, and ODM exterior design are all supported. |
