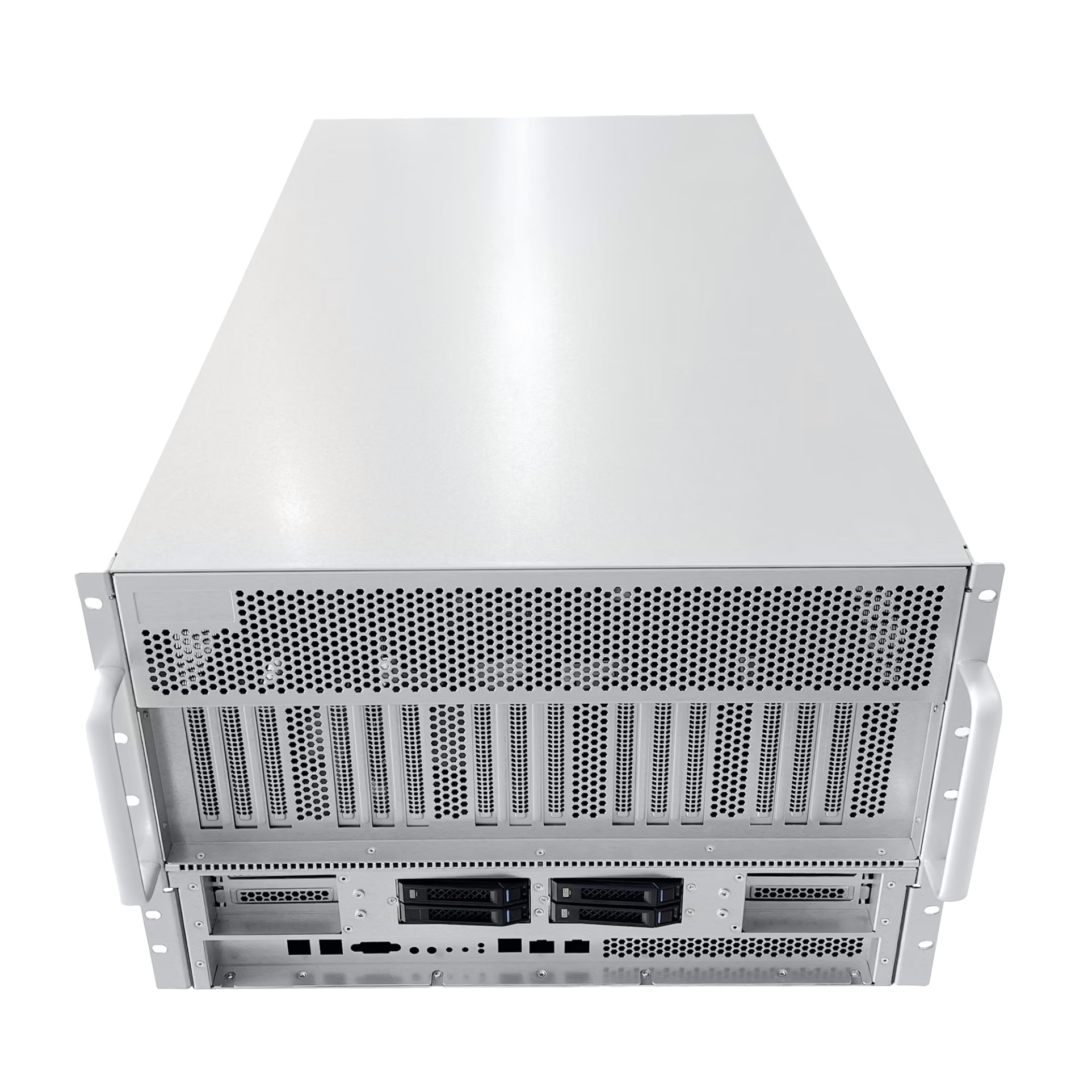

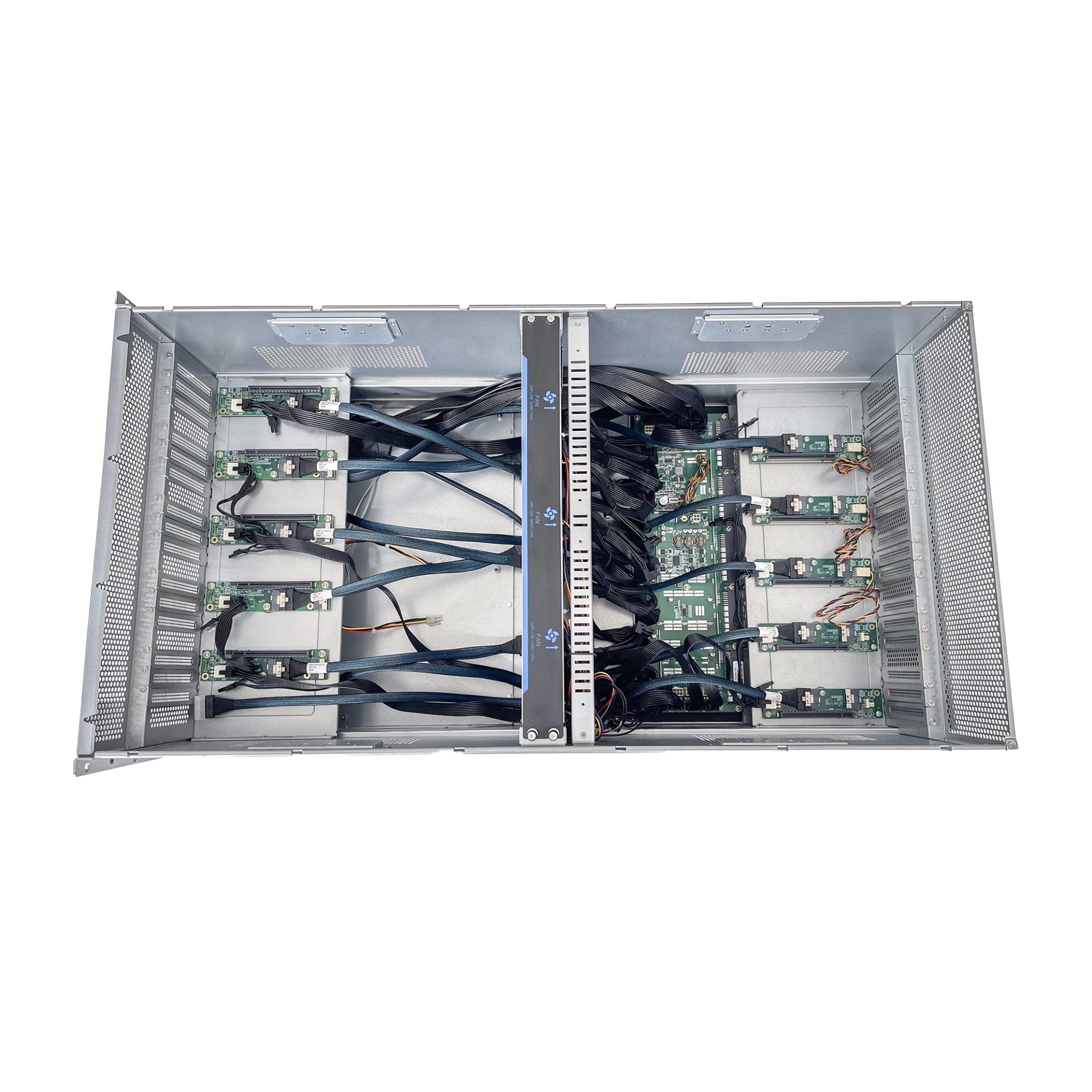

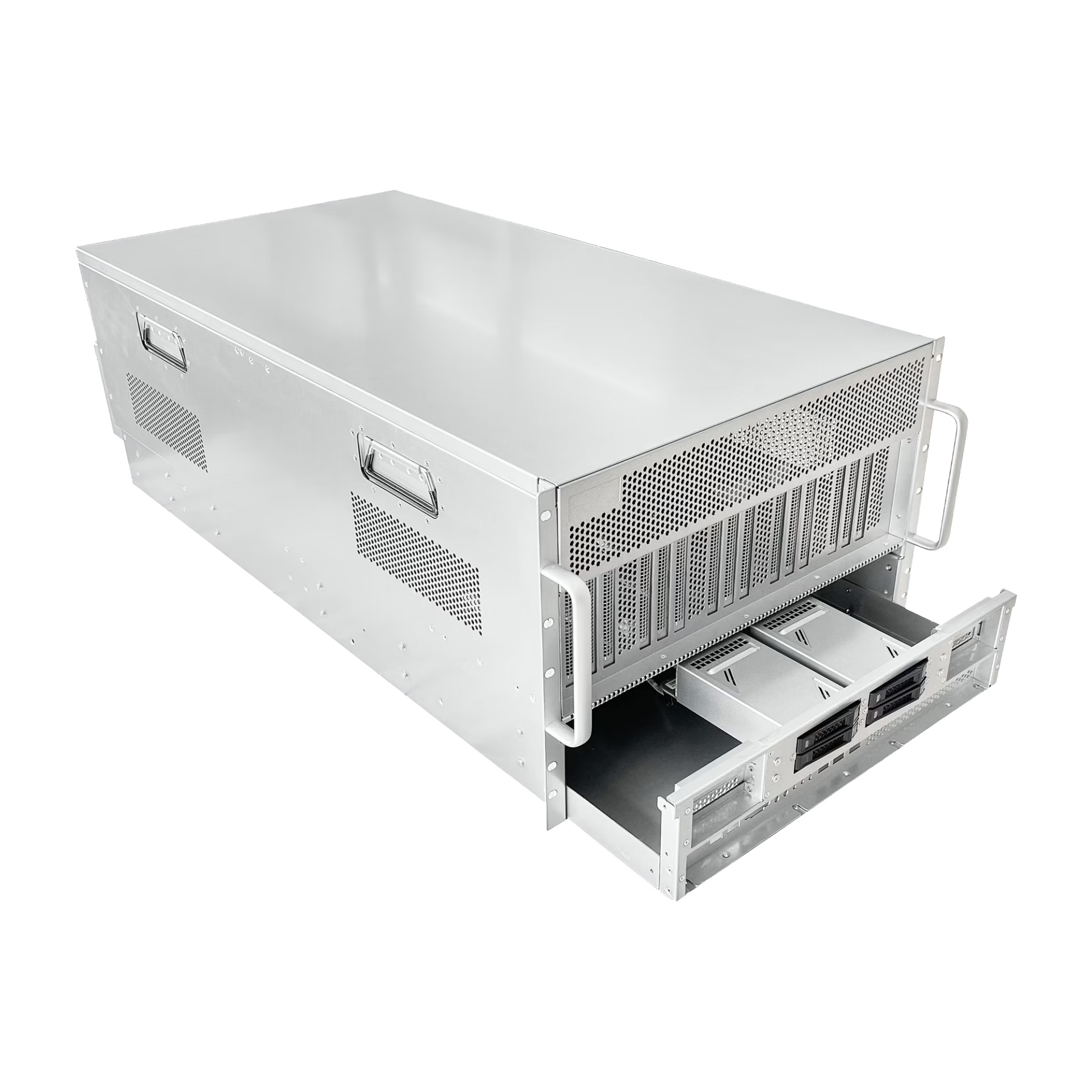

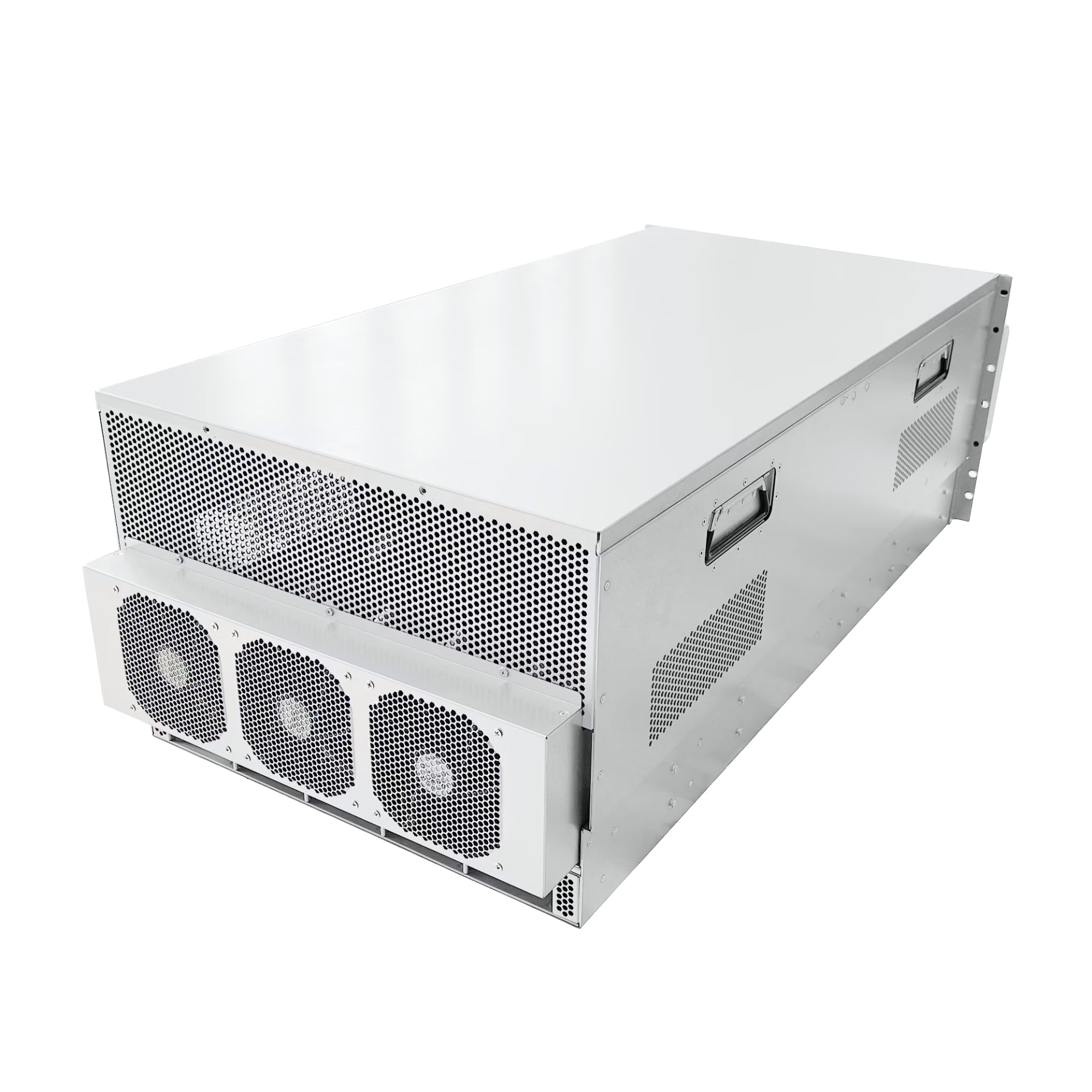

7U Rack-mounted GPU Server Chassis -OCG7870-10H4-R
• Massive GPU Capacity
• Versatile Motherboard Compatibility
• Optimized Cooling System
• High-Density Storage Support
• Redundant Power Supply Options
• Flexible PCIe Gen5 Riser Options
• Durable Industrial-Grade Build
• Tool-Free Access & Maintenance
Description
Package Information
Inquiry
| Model: | OCG7870-10H4-R (Barebone System) |
7U 10GPU Server Chassis: | D870 × W425 × H308 mm; Rackmount style |
| Material: | Baosteel SGCC 1.0 -1.2 mm |
| Fan Configuration: | Standard Configuration: Center 8*8038, rear 3*12038 Fans; Optional Configuration: Center 8*8056, Rear 5*8038 fans |
| PSU Form Factor: | 4+1, 3+2, 2+2, 3+1 CRPS redundant power supply |
| MB Compatibility: | Asrock ROME2D32GM-2T/Asrock GENOA2D24G-2L-R101/ EEB(12"*13”)/ CEB(12"*10.5”)/ ATX(12"*9.5”)/ Micro ATX |
| HDD Backplane: | Support 4* 2.5-inch SAS/SATA direct-plug or hot-plug hard disks |
| Front Panel Interface: | Power Button Switch/ Reset Button Switch/ USB3.0*2 |
| Indicator Light: | Power Indicator/ Hard Disk Indicator/ 2*Network Connection Indicator |
| Expansion Slot: | Select either the PCI-E-16X Gen5 Riser Cable or the PCI-E-16X Gen5 Riser with MCIO Cable |
| GPU Riser: | Support 10-Card 4090 GameCard |
| Guide Rail: | Optional |
| Transportation & Storage Temperature: | -40°C-70°C |
