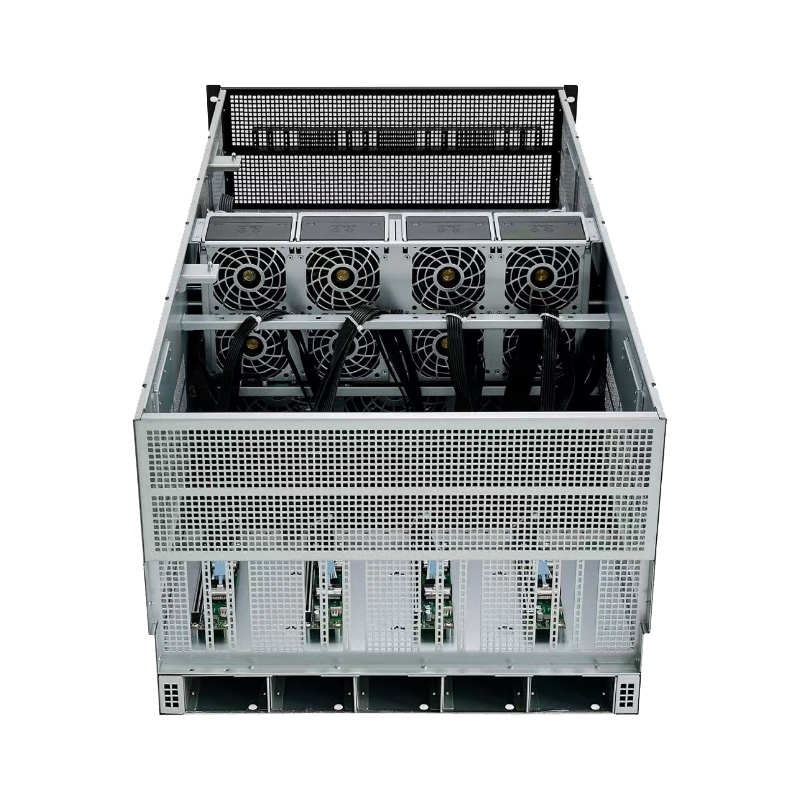

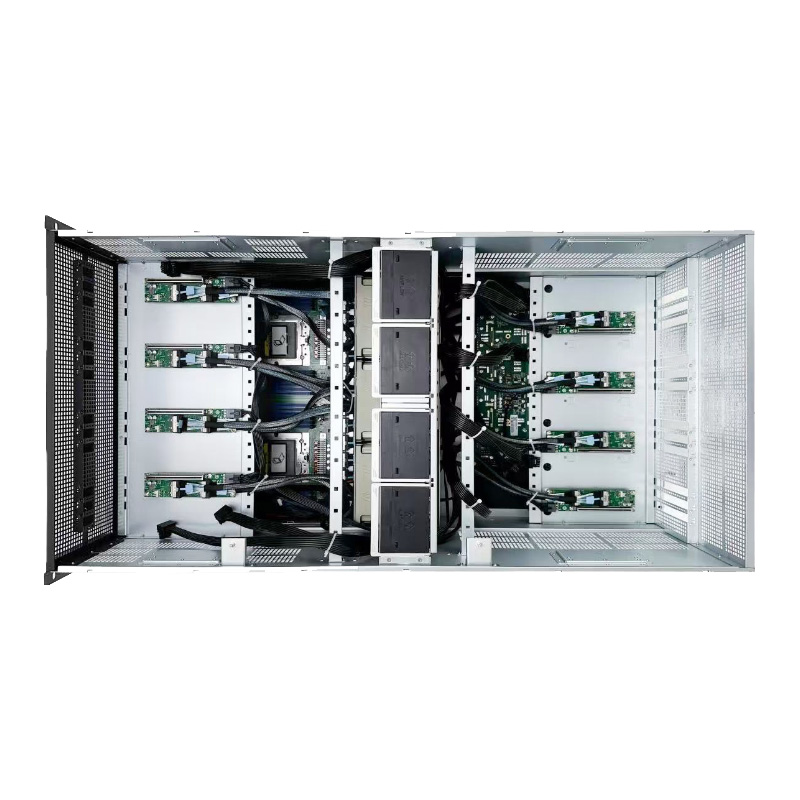

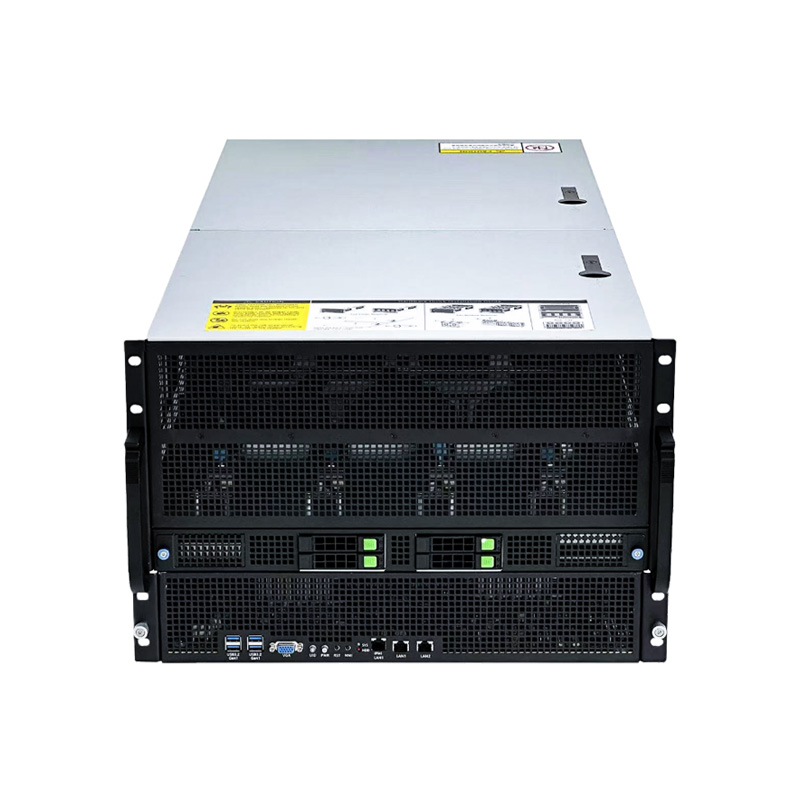

7U Rack-mounted GPU Server Chassis -OCG7U900-8H4-L
✅ Support up to 8/10 full-length GPUs, ideal for AI, deep learning, and high-performance computing
✅ ASRock server motherboard compatibility for optimized system performance
✅ Advanced cooling system with intelligent temperature control
✅ Redundant 4+1 CRPS power supply for continuous operation
✅ Flexible NVMe and hot-swappable storage for fast data access
✅ Heavy-duty industrial-grade construction for long-term reliability
The OCG7U900-8H4-L is the ultimate GPU server chassis for enterprises looking to maximize performance, scalability, and reliability. Whether you are building an AI training cluster, a rendering farm, or a high-performance computing server, this 7U rack-mount chassis is engineered to meet your most demanding needs.
Description
Package Information
Inquiry
| Model | OCG7U900-8H4-L |
| Chassis Style | Rack-mount |
| Chassis Structure | 7U GPU server chassis |
| Chassis Size | L900*W447*H312 mm (482 mm with mounting ears) |
| Main Material | SGCC 1.0 mm (galvanized steel plate) |
| Cooling System | Support intelligent temperature control, standard with 8* 15,000 rpm 8056 channel fans, 3* 7,000 rpm 12038 fans |
| Motherboard Position | Support ROME2D32GM-2T, GENOA2D24G-2L+ motherboards |
| Power Position | 4+1CRPS redundant power supply |
| HDD Position | 4 *2.5″ hot-swappable hard disk slots |
| Applicable HDD | Compatible with U.2/SAS/SATA hard disks |
| HDD Backplane | Standard with 4NVMe direct-connect backplanes (SFF8654) |
| Graphics Card Position | Support 8/10 game cards, graphics card length limit 360MM |
| Graphics Card Extension Cable | PCle4.0 GPU base *10 (Riser Card), LP8654 to 8654 cable *11, SFF8654 to 8654 cable *8 (For ROME2D32GM-2T) PCle5.0 GPU base *10 (Riser Card), MCIO to MCIO cable *18, SFF8654 to MCIO cable *2 (For GENOA2D24G-2L+) |
| Power Board and Cable | Redundant power board *1, motherboard power line *1, CPU power line *2, GPU baseboard power line *4, graphics card power line *8, hard disk backplane power line *2 |
| Support Guide Rails | Optional 4U-600-0092 guide rail |
| Packing Method | Chassis + PE bag + pearl cotton + accessories box + carton |
| Packing Size | L1075″W580*H435 mm |
| Overall Gross Weight | 43 kg |
