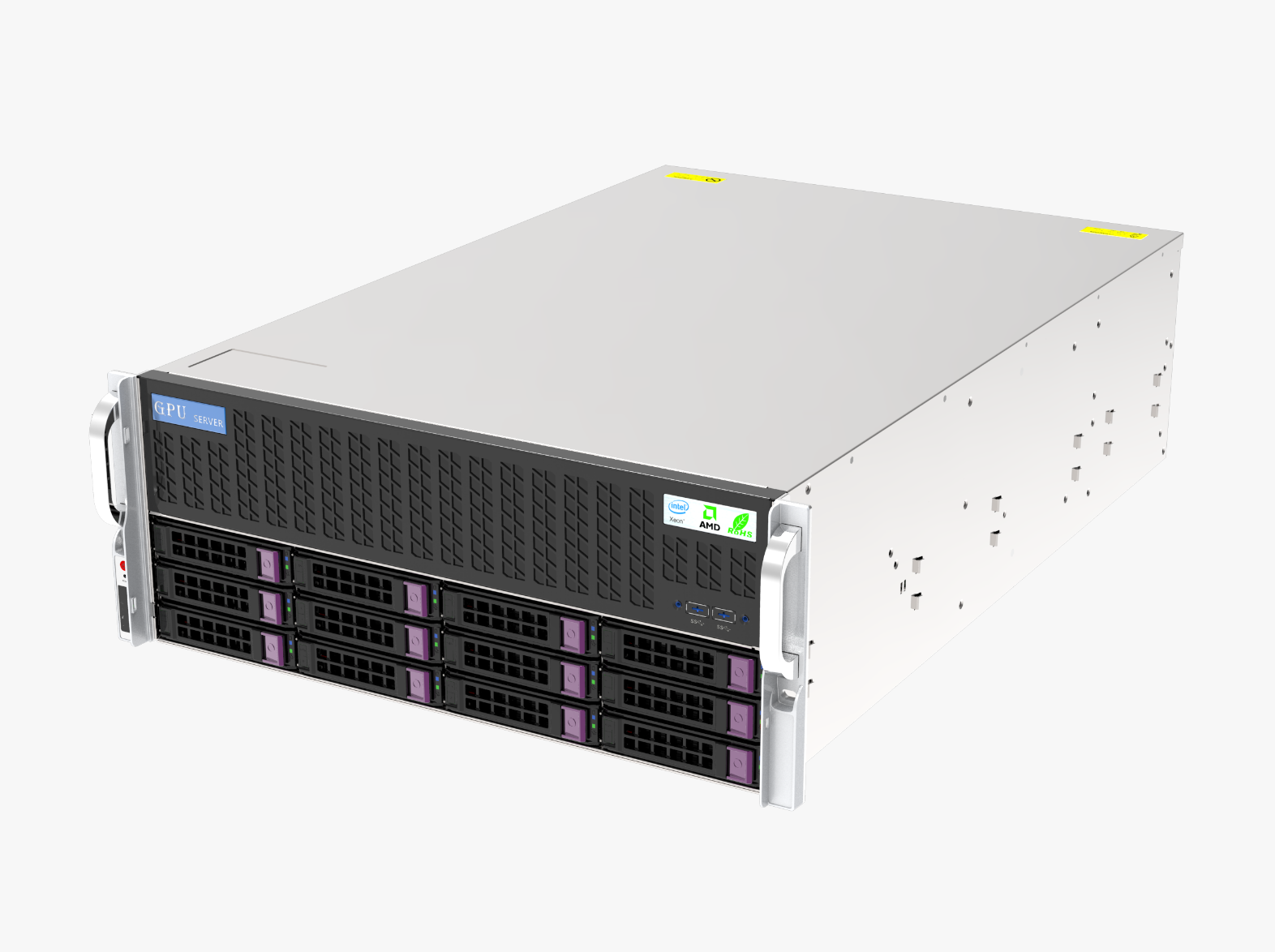

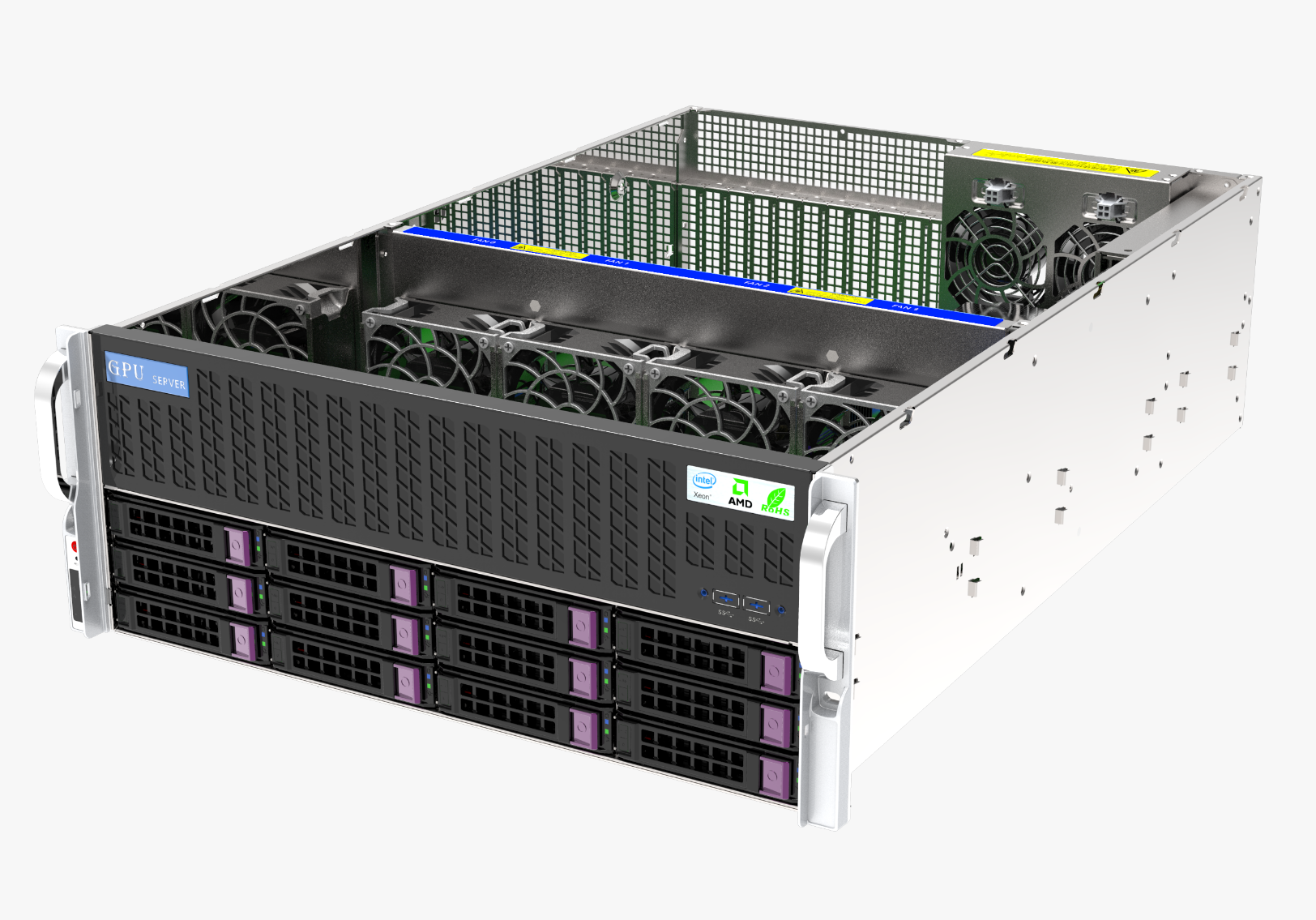

4U 12Bay GPU Server Chasis -OCG466-4H12-C
· 4U rackmount chassis, dimensions: 660mm x 438.4mm x 177mm
· 12x 3.5″ hot-swap bays (2.5″ compatible) + 2 internal drive bays
· Compatible with X11DPG-QT and X12DPG-QT dual-socket motherboards
· Up to 11x full-height PCIe expansion slots
· Supports 4x GPU cards, max length 335mm
· Redundant power supplies up to 2700W, 80PLUS Platinum certified

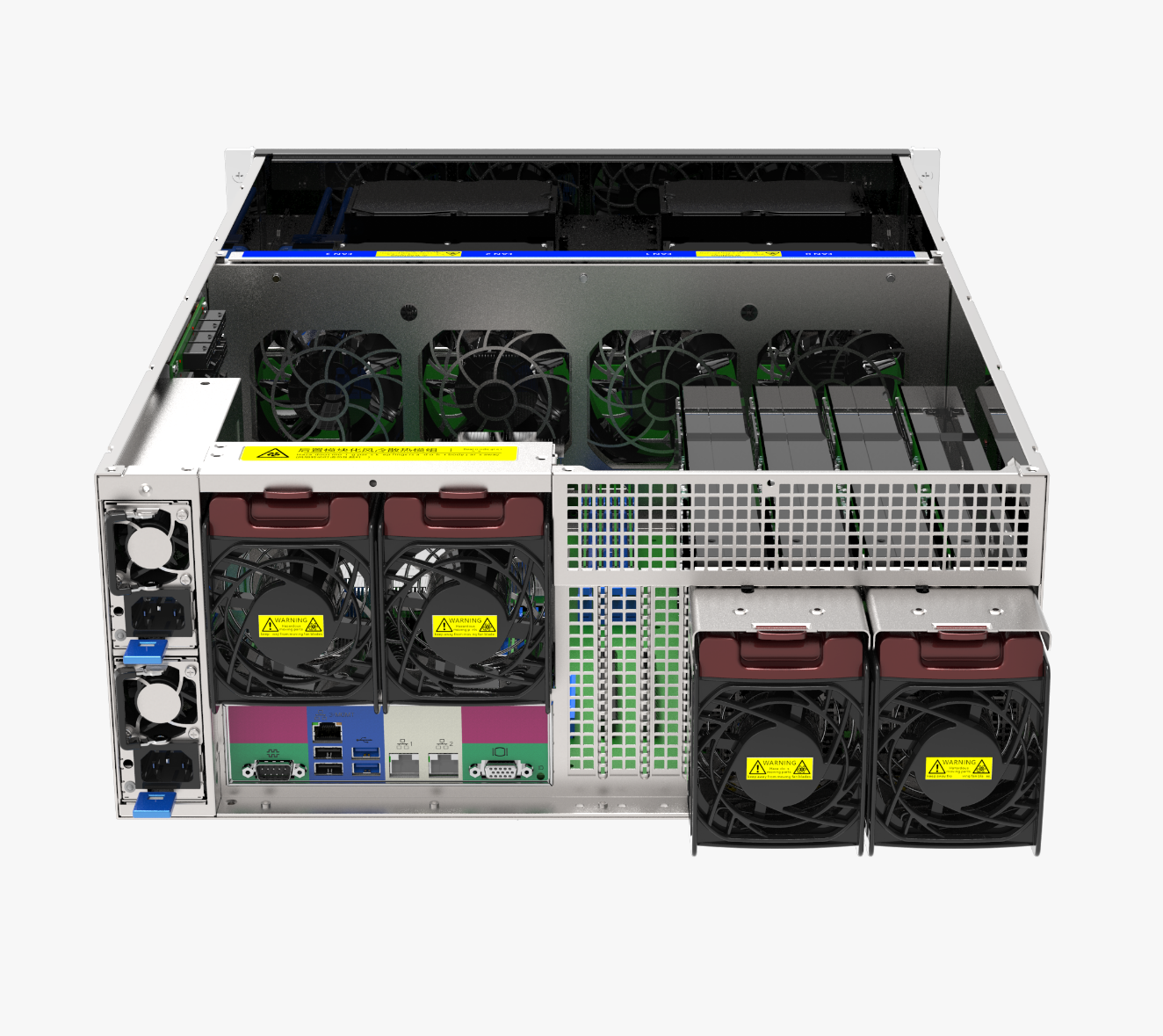

· 4x 9238 hot-swappable fans + up to 4x 8038 rear fans
· U.2 NVMe + SAS/SATA 12Gbps backplane configurations available
· Customizable 4U front panel, cables, logos, and packaging options
Description
Package Information
Inquiry
| Chassis Model | OCG4660-4H12-C |
| Dimensions | D660*W438.4*H177mm |
| Materials | Taiwan China Steel SGCC 1.0mm |
| Front Panel | Power switch/RESET button, power/hard drive/network/alarm/status indicators, and dual USB 3.0 ports. |
| Storage Support | Front panel supports 12 3.5" hot-swappable hard drive bays (2.5" compatible), and supports two 3.5"/2.5" internal hard drive modules. |
| PCI-e Expansion | Supports 11 full-height PCI-e expansion slots |
| System Fan | Overall shock absorption / standard 4 9238 hot-swappable system cooling fan modules (silent version/PWM, high-quality fans with a 50,000-hour warranty) The rear supports 2*8038 hot-swappable fan modules, and external support for 2*8038 hot-swappable fan modules (optional) |
| Backplane | Supports 12*SAS/SATA 12Gbps direct-connect backplane, 12*SAS/SATA 12Gbps expansion backplane, 8*SAS/SATA 12Gbps + 4*U.2 NVME backplane |
| Power Supply | Redundant power supports 1300W/1600W/2000W/2700W 80PLUS Platinum series CRPS 1+1 high-efficiency redundant power supply |

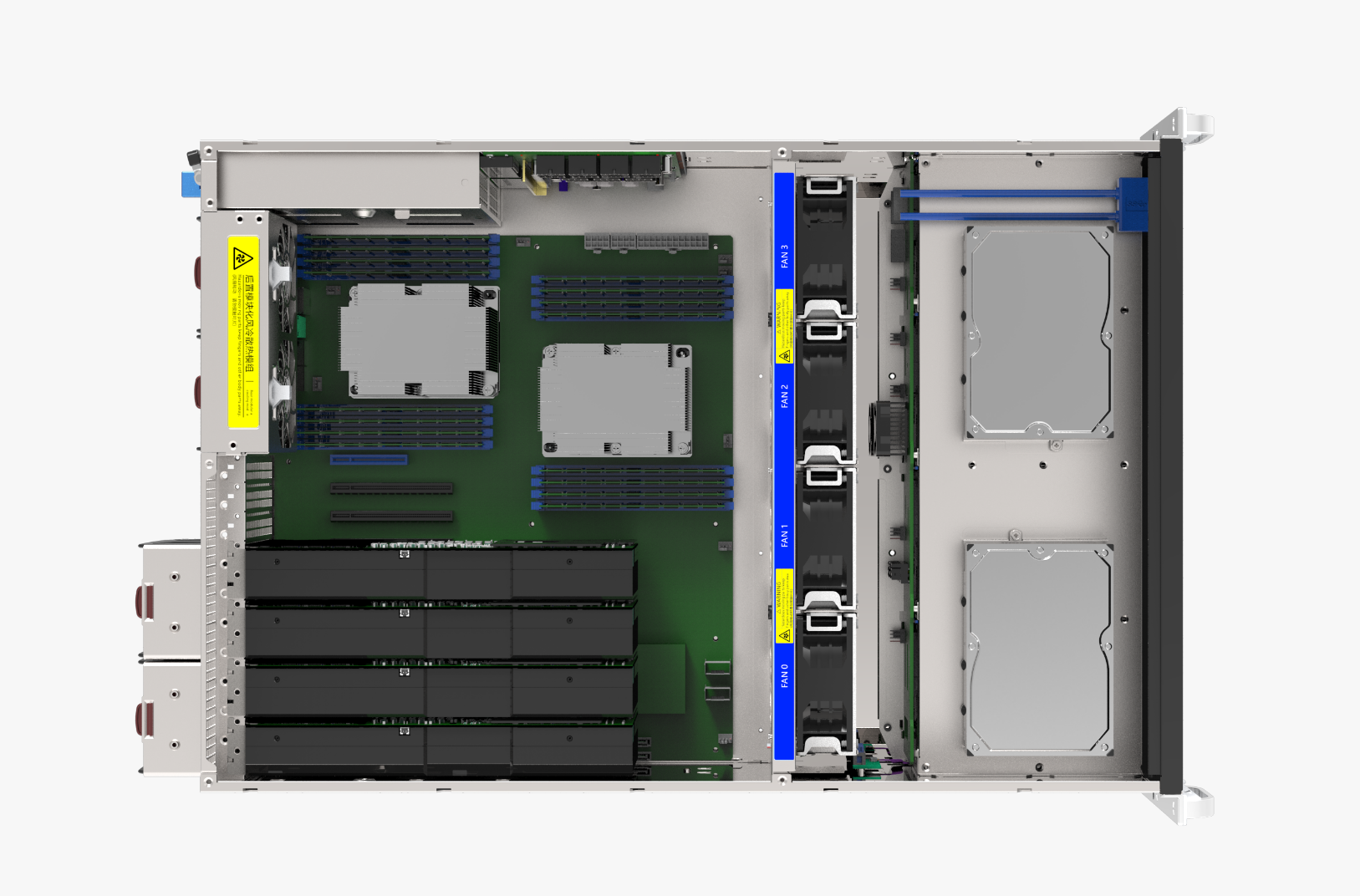

| Motherboard | Supports X11DPG-QT and X12DPG-QT motherboards |
| GPU Support | 4 x Gaming Cards, Maximum length: 335mm |
| Environmental Specifications | 10°C to 35°C operating temperature, 8% to 90% operating humidity (non-condensing) -40°C to 70°C storage temperature, 5% to 95% storage humidity (non-condensing) |
| Optional | |
| HDD Backplane | Supports 12x SAS/SATA 12Gbps direct-connect backplanes and 12x SAS/SATA 12Gbps expansion backplanes.8x SAS/SATA 12Gbps + 4x U.2 NVME backplanes. |
| Power Supplies | 1+1 redundant: 1300W/1600W/2000W/2700W original power supplies (Platinum) (optional). |
| 2x 2.5" HDD OS module | N/A |
| Rear Fan Module | 2x 8038 hot-swappable fan modules (silent version/PWM, high-quality fans with a 50,000-hour warranty). |
| HDD Data Cable | Customizable data cable lengths are supported. |
| Power Cable | 3C-certified, high-quality server-specific power cables. |
| Chassis Front Panel | Customizable 4U front panel. |
| Rack Rails | 1. 2U support-type rack rails; 2. 2U tool-free, quick-release, fully removable ball bearing rails. |
| Customization | Customizable logos, drawer box colors, packaging materials, and ODM designs are supported. |
