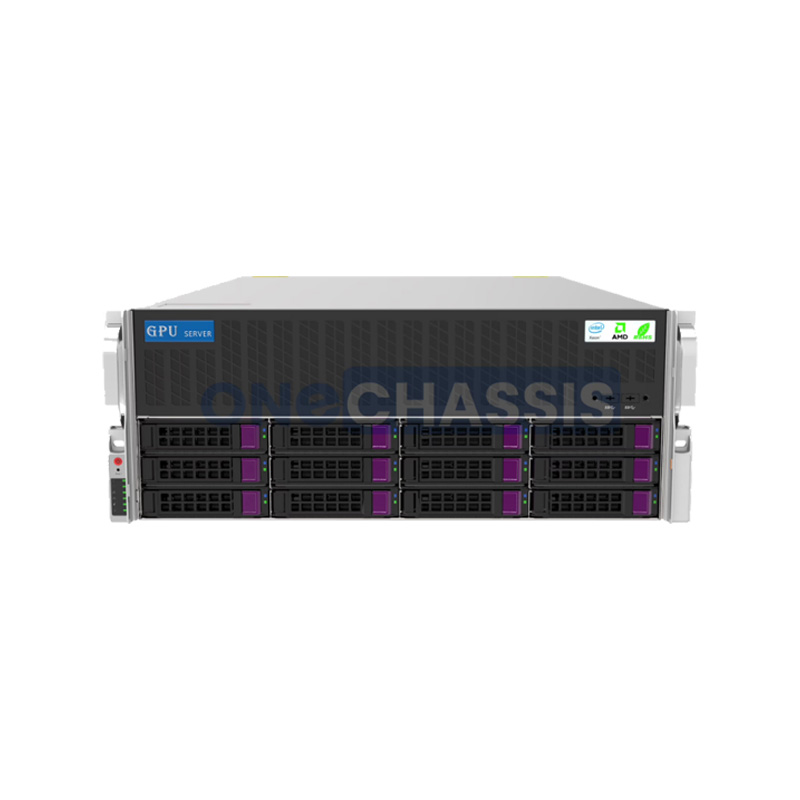

4U 12Bay GPU Server Chasis -OCG4700-5H12-C
• High-density storage and GPU server deployments
• Support multiple GPU cards and EEB motherboards
• High I/O capacity with redundant power and hot-swappable drive bays
• Efficient thermal design with 360mm liquid cooling support
• Fully customizable front panel, logos, and packaging for brand integration
Description
Package Information
Inquiry
Model: | OCG4700-5H12-C |
4U 5GPU Server Chassis: | D700 × W438 × H177 mm; Rackmount style |
Material: | 1.0 mm Taiwan SGCC steel |
PSU Form Factor: | Redundant power supplies support 1300W/1600W/2000W 80PLUS Platinum CRPS 3+1 high-efficiency redundant power supplies |
MB Compatibility: | EEB, CEB, and M-ATX standard 4-card oversized boards |
Front Panel: | Power switch/RESET button, power/hard drive/network/alarm/status indicators, support for two USB 3.0 ports, and two rear 2.5" hotswap modules (optional) |
Storage: | Support for 12 front 3.5" hotswap hard drive bays (2.5" compatible), two internal 3.5/2.5" hard drive bays, and two rear 2.5" hotswap modules (optional) |
PCI-e Expansion: | Support for 11 full-height PCI-e expansion slots |
System Fan: | Integrated shock absorption/standard four 9238 hot-swap system cooling fan modules (silent version/PWM, high-quality fans with a 50,000-hour warranty). Support for three external 8038 hotswap fan modules (optional) at the rear |
Backplane: | Support for 12 SAS/SATA 12Gbps direct-connect backplanes, 12 SAS/SATA 12Gbps expansion backplane with 8 12Gbps SAS/SATA ports and 4* U.2/NVME backplanes |
GPU Support: | 5 Turbo Cards, maximum length: 335mm |
360mm Radiator Support: | Reserved space available; mounting holes customizable based on customer's radiator |
Environmental | 10°C to 35°C operating temperature, 8% to 90% operating humidity (non-condensing); -40°C to 70°C storage temperature, 5% to 95% storage humidity (non-condensing) |
| OPTIONAL | |
| HDD Backplane | 12x SAS/SATA 12Gbps direct-connect backplanes, expansion backplane, 8x SAS/SATA + 4x NVMe hybrid backplane |
| Power Supply | 3+1 redundant: 1300W/1600W/2000W original power supplies (Platinum) (optional) |
| 2x2.5" HDD OS Module | Support for 2.5" hot-swappable hard drive modules (optional) |
| Rear Fan Module | 3x 8038 hot-swappable fan modules (high air pressure and volume, high-quality fans with a 50,000-hour warranty) |
| HDD Data Cable | Customizable data cable lengths available |
| Power Cable | 3C-certified, high-quality server power cables |
| Chassis Front Panel | Customizable 4U front panel available |
| Rack Rails | 1.2U support-type rack rails; 2.2U tool-free, quick-release, fully removable ball bearing rails. |
| Customization | Customizable logos, drawer box colors, OEM packaging materials, and ODM exterior design are all supported |
